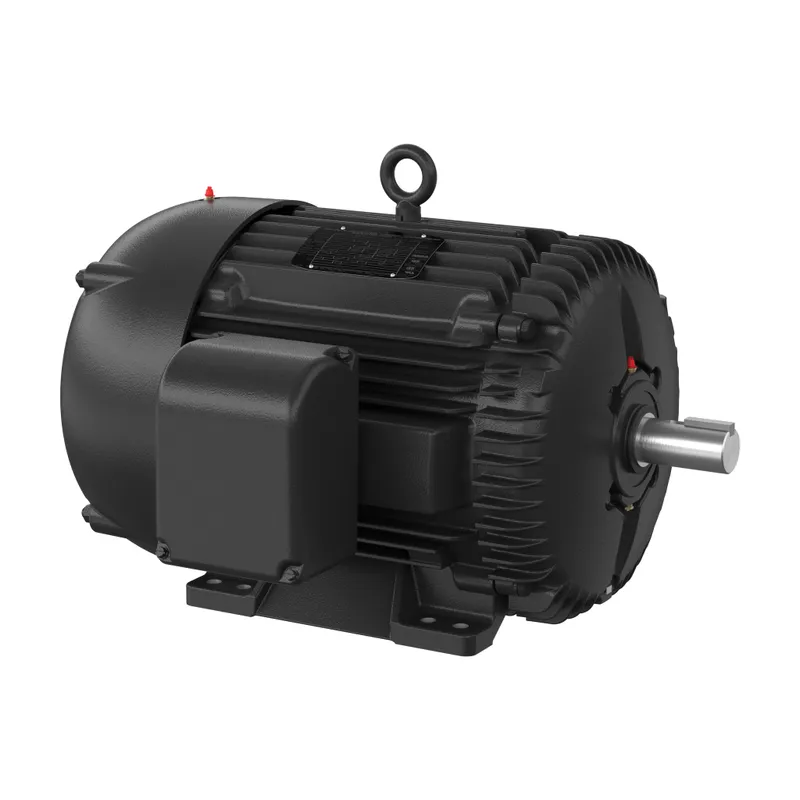

ABB 50HP,3540RPM,3PH,60HZ,326TS,1252M,T – Severe Duty Motor 50 Hp 575 V (XT3502TS-5)
MPN: 50HP,3540RPM,3PH,60HZ,326TS,1252M,T · Brand: ABB
Price on request
Request a Quote
12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
Quick facts
| Availability | Confirmed on request |
| Category | Severe Duty |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can 50HP,3540RPM,3PH,60HZ,326TS,1252M,T be shipped?
50HP,3540RPM,3PH,60HZ,326TS,1252M,T is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 50HP,3540RPM,3PH,60HZ,326TS,1252M,T in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 50HP,3540RPM,3PH,60HZ,326TS,1252M,T and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 50HP,3540RPM,3PH,60HZ,326TS,1252M,T, subject to availability and destination.
Severe Duty Motor 50 Hp 575 V (XT3502TS-5)
Specifications
Ordering
| Catalog Number | XT3502TS-5 |
| Brand / Label | Baldor-Reliance |
| Country or Territory of Origin | United States |
| Customs Tariff Number | 85015230 |
| Minimum Order Quantity | 1 piece |
| Order Multiple | 1 piece |
Electrical
| Ambient Temperature | 40 °C |
| Duty Time | 60 Min |
| Efficiency Level | Premium Efficiency (NEMA 12-12) |
| Insulation Class | F |
| NEMA Design Code | A A |
| Number of Phases | 3-phase |
| Number of Poles | 2P |
| Number of Speeds | Single Speed |
| Power Factor | 89 % |
| Rated Efficiency | 93 % |
| Service Factor | 1.00 |
| Temperature Class | T3 |
| Type of Duty | Continuous |
| Starting of Motor | Direct On Line |
| Synchronous Speed (vsyn) | 3600 r/min |
| Output Power | 50 Hp |
Mechanical
| Drive End Flange Type | Standard |
| Enclosure Type | TEFC |
| Explosion Proof Group Class | Class I, Group A, B, C & D A |
| Frame Material | Iron |
| Motor Frame Size | 326TS |
| Motor Base Type | Foot Mounted |
| Mounting Position | F1 |
| Brake Present | No |
Dimensions
| Product Net Height | 21.625 in |
| Product Net Weight | 575 lb |
| Product Net Width | 25.688 in |
| Dimension Diagram | 12LYH011 |
Certificates and Declarations
| Certification Agency | CCSA US, CSA EEV, NEMA PREMIUM, NEMA_PREMIUM, UR |
| ETIM 7 | EC001851 - Electric motor |
