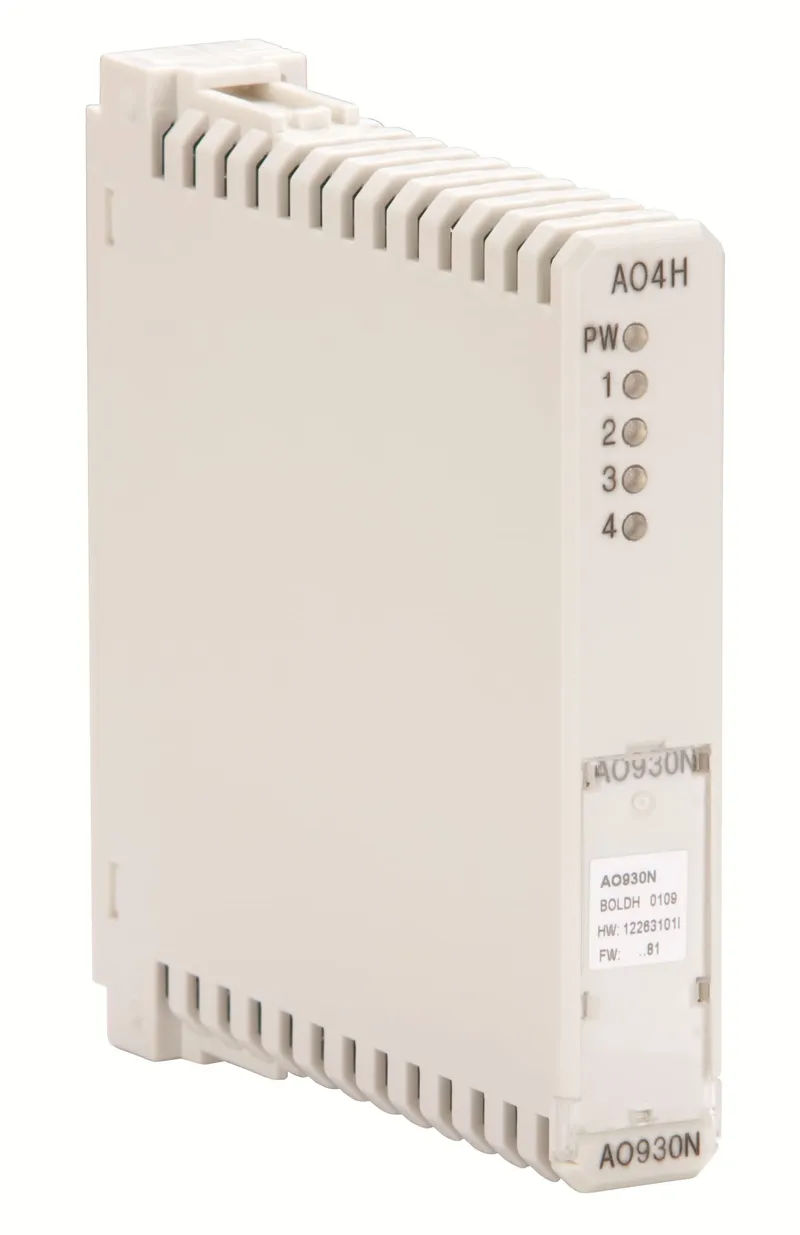

ABB 3KDE175533L9300 – AO930N Analog output HART (AO4H)
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | S900 I/O |
| Lifecycle | Active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Weight | 0.13 kg |
| Country of origin | DE |
Shipping & availability
When can 3KDE175533L9300 be shipped?
3KDE175533L9300 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 3KDE175533L9300 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 3KDE175533L9300 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 3KDE175533L9300, subject to availability and destination.
The remote S900 I/O system can be installed in non-hazardous areas or directly in Zone 1 or Zone 2 hazardous area depending on the selected system variant. S900 I/O communicates with the control system level using PROFIBUS DP standard. The I/O system can be installed directly in the field, therefore the costs for mashalling and wiring are reduced. The system is sturdy, error-tolerant and easy to service.
Integrated disconnection mechanisms allow replacement during operation, meaning that there is no need to interrupt the primary voltage in order to the power supply units. S900 I/O type N. For installation in safe (= non-hazardous) area. AO930N Analog Output (AO4H), output signal 0/4...20 mA for actuators. - Redundancy (Power and Communication)
- Hot Configuration in Run
- Hot Swap functionality
- Extended Diagnostic
- Excellent configuration and diagnostics via FDT/DTM
- G3-coating for all components
- Simplified maintenance with auto-diagnostics
- Output signal 0/4...20 mA for actuators
- Short and break detection
- Electrical isolation between output / bus and output / power
- Output with common ground
- 4 channels
- Transmission of HART frames via the fieldbus
- Cyclic HART variables
ABB 3KDE175533L9300 — AO930N Analog output HART (AO4H) (S900 I/O). PartnerPLC sources discontinued and surplus ABB automation parts — request a quote for price, condition and lead time.
Specifications
Specifications
| Product ID | 3KDE175533L9300 |
| ABB type designation | AO930N |
| System | S900 I/O |
| Product group | S900 I/O > S900 I/O - Modules > AO930N Analog outputs |
| HS Code | 853890 -- ELECTRICAL MACHINERY AND EQUIPMENT AND PARTS THEREOF; SOUND RECORDERS AND REPRODUCERS, TELEVISION IMAGE AND SOUND RECORDERS AND REPRODUCERS, AND PARTS AND ACCESSORIES OF SUCH ARTICLES;Parts |
| Channel Type | AO |
| Number of Output Channels | 4 |
| RoHS Information | Following EU Directive 2011/65/EU |
| Number of Batteries | 0 |
| Width | 104 mm |
| Height | 20 mm |
| Depth / Length | 104 mm |
| Weight | 0.13 kg |
