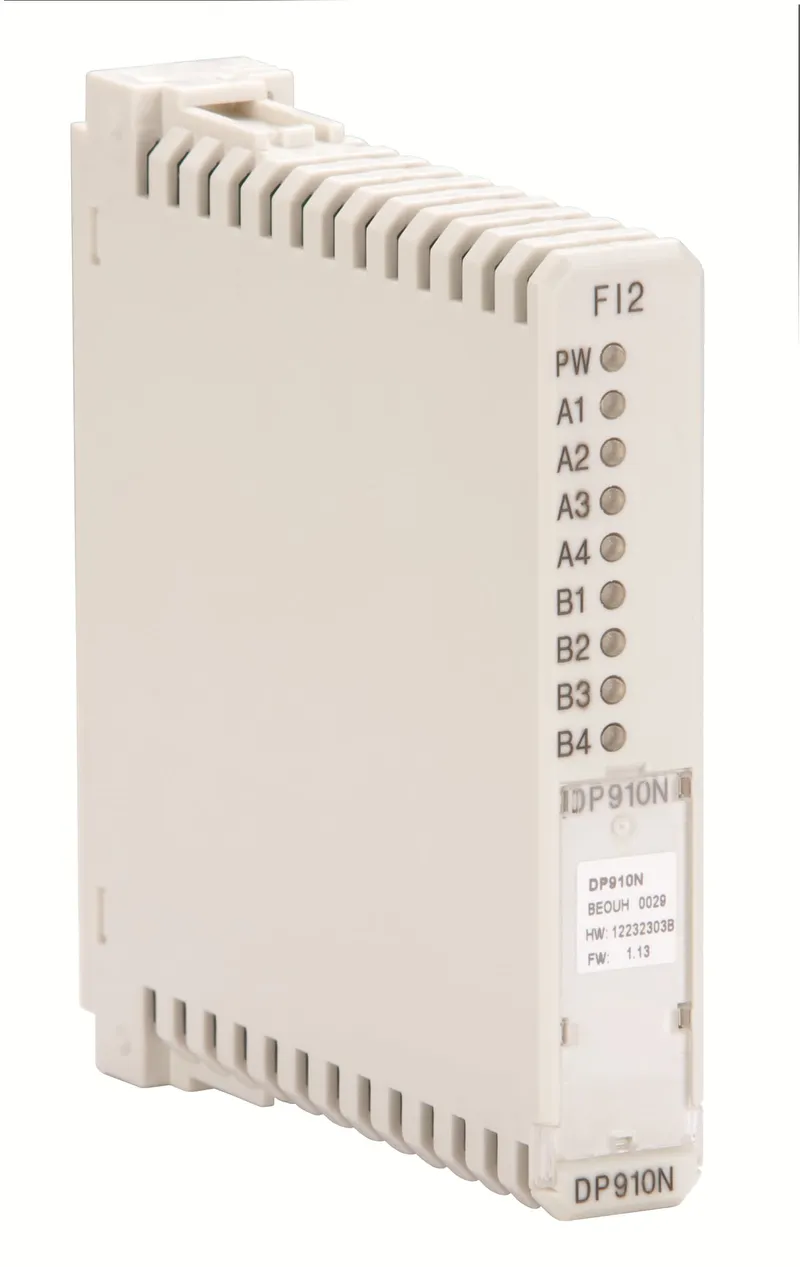

ABB 3KDE175363L9100 – DP910N Frequency Input (FI2)
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | S900 I/O |
| Lifecycle | Active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Weight | 0.125 kg |
| Country of origin | DE |
Shipping & availability
When can 3KDE175363L9100 be shipped?
3KDE175363L9100 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 3KDE175363L9100 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 3KDE175363L9100 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 3KDE175363L9100, subject to availability and destination.
The remote S900 I/O system can be installed in non-hazardous areas or directly in Zone 1 or Zone 2 hazardous area depending on the selected system variant. S900 I/O communicates with the control system level using PROFIBUS DP standard. The I/O system can be installed directly in the field, therefore the costs for mashalling and wiring are reduced. The system is sturdy, error-tolerant and easy to service.
Integrated disconnection mechanisms allow replacement during operation, meaning that there is no need to interrupt the primary voltage in order to the power supply units. S900 I/O type N. For installation in safe (= non-hazardous) area. DP910N Frequency Input (FI2), input for dry contacts or proximity switches. - Redundancy (Power and Communication)
- Hot Configuration in Run
- Hot Swap functionality
- Extended Diagnostic
- Excellent configuration and diagnostics via FDT/DTM
- G3-coating for all components
- Simplified maintenance with auto-diagnostics
- Frequency input for dry contacts or proximity switches
- Short and break detection
- Eletrical isolation between input / bus and input / power
- Frequency measurement or counting applications
- 2 Function blocks
- Reset via fieldbus or control input
- Status outputs / Direction recognition
ABB 3KDE175363L9100 — DP910N Frequency Input (FI2) (S900 I/O). PartnerPLC sources discontinued and surplus ABB automation parts — request a quote for price, condition and lead time.
Specifications
Specifications
| Product ID | 3KDE175363L9100 |
| ABB type designation | DP910N |
| System | S900 I/O |
| Product group | S900 I/O > S900 I/O - Modules > DP910N Frequency Inputs |
| HS Code | 853890 -- ELECTRICAL MACHINERY AND EQUIPMENT AND PARTS THEREOF; SOUND RECORDERS AND REPRODUCERS, TELEVISION IMAGE AND SOUND RECORDERS AND REPRODUCERS, AND PARTS AND ACCESSORIES OF SUCH ARTICLES;Parts |
| Channel Type | DI |
| Number of Input Channels | 2 |
| RoHS Information | Following EU Directive 2011/65/EU |
| Number of Batteries | 0 |
| Width | 104 mm |
| Height | 20 mm |
| Depth / Length | 104 mm |
| Weight | 0.125 kg |
