ABB CSPM3611T

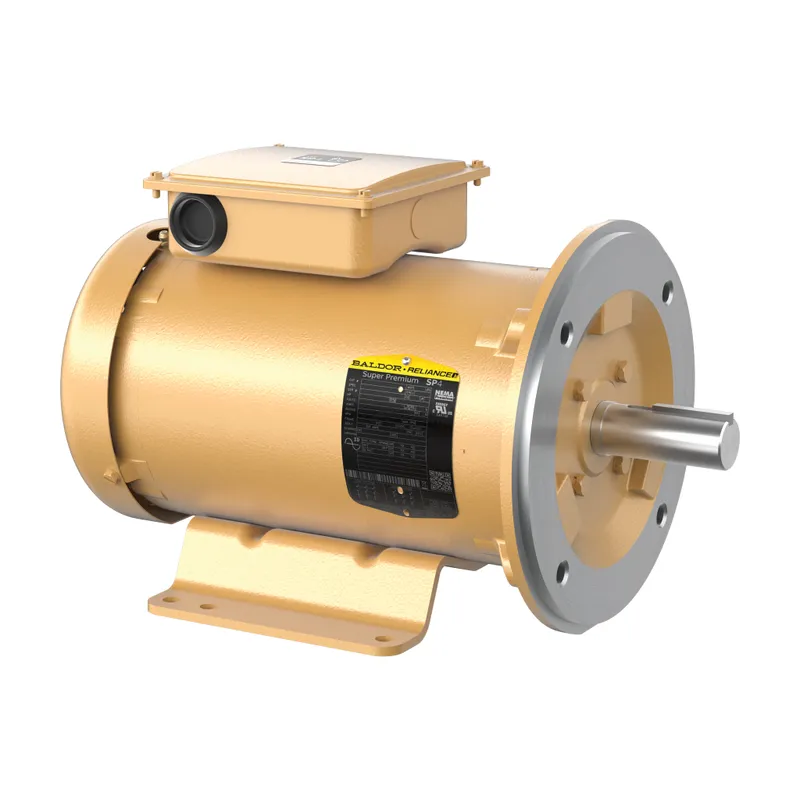

3HP,1765RPM,3PH,60HZ,182TC,3642M,TE

MPN: CSPM3611T
Category: SP4 General Purpose - Enclosed motor

Price and lead time confirmed within 1 business day

Request a Quote

1We check stock, condition and lead time
2You get a written quote by email
3Approve it and we ship — in-stock parts within 1 business day

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
100% positive eBay feedback
Ships via

Have spare ABB parts? We buy surplus →

What is the ABB CSPM3611T?

General Purpose Motor 3 Hp 230 V (CSPM3611T)

Specifications

Ordering

Catalog Number	CSPM3611T
Brand / Label	Baldor-Reliance
Country or Territory of Origin	United States
Customs Tariff Number	85015220
Minimum Order Quantity	1 piece
Order Multiple	1 piece

Electrical

Ambient Temperature	40 °C
Efficiency Level	2015 Small Motor Standard, IE3, Premium Efficiency (NEMA 12-12)
Insulation Class	F
Number of Phases	3-phase
Number of Poles	4P
Number of Speeds	Single Speed
Power Factor	89 %
Rated Efficiency	89.50 %
Service Factor	1.00
Type of Duty	Continuous
Starting of Motor	Direct On Line
Synchronous Speed (vsyn)	1800 r/min
Output Power	3 Hp

Mechanical

Drive End Flange Type	C-Face
Enclosure Type	TEFC
Frame Material	Steel
Motor Frame Size	182TC
Motor Base Type	Rigid
Mounting Position	F3
Brake Present	No

Dimensions

Product Net Height	13.123 in
Product Net Weight	70 lb
Product Net Width	13.75 in
Dimension Diagram	35LYX060

Certificates and Declarations

Certification Agency	CSA, UR
IDEA Granular Category Code (IGCC)	1328 >> Multi phase motor AC
ETIM 7	EC001851 - Electric motor
