ABB

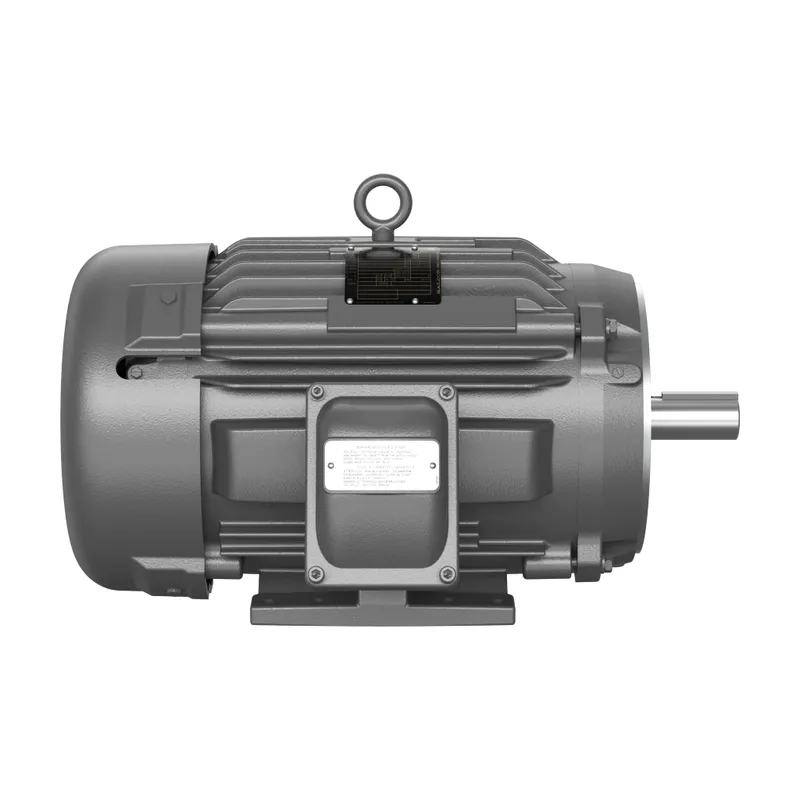

ABB CDRX21364T

3HP,1165//970RPM,3PH,60/50HZ,213TC

MPN
CDRX21364T
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare ABB parts? We buy surplus →

What is the ABB CDRX21364T?

Explosion Proof Drill Rig Duty 2 Hp 190 V (CDRX21364T)

Specifications

Ordering

Catalog NumberCDRX21364T
Brand / LabelBaldor-Reliance
Country or Territory of OriginUnited States
Customs Tariff Number85015220
Minimum Order Quantity1 piece
Order Multiple1 piece

Electrical

Ambient Temperature40 °C
Duty Time60 Min
Efficiency LevelPremium Efficiency (NEMA 12-12)
Insulation ClassF
NEMA Design CodeB
Number of Phases3-phase
Number of Poles6P
Number of SpeedsSingle Speed
Power Factor72 %
Rated Efficiency89.50 %
Service Factor1.00
Temperature ClassT3C
Type of DutyContinuous
Starting of MotorDirect On Line
Synchronous Speed (vsyn)1200 r/min
Output Power2 Hp, 3.000 Hp

Mechanical

Drive End Flange TypeC-Face
Enclosure TypeTEFC
Explosion Proof Group ClassClass I, Group C & D
Frame MaterialCast Iron
Motor Frame Size213TC
Motor Base TypeFoot Mounted
Mounting PositionF1
Brake PresentNo

Dimensions

Product Net Height17.625 in
Product Net Weight221 lb
Product Net Width18.125 in
Dimension Diagram07LYJ232

Certificates and Declarations

Certification AgencyCSA EEV, UL, UR
ETIM 7EC001851 - Electric motor

CDRX21364T: frequently asked questions

When can CDRX21364T be shipped?

CDRX21364T is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up CDRX21364T in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for CDRX21364T and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for CDRX21364T, subject to availability and destination.

More ABB parts

ABB CDRX21124T – 10HP,3490//2900RPM,3PH,60HZ,215TC,X
ABB
CDRX21124T

10HP,3490//2900RPM,3PH,60HZ,215TC,X

ABB CDRX21124T-5 – 10HP,3500RPM,3PH,60HZ,215TC,XPFC,F1
ABB
CDRX21124T-5

10HP,3500RPM,3PH,60HZ,215TC,XPFC,F1

ABB CDRX21144T – 10HP,1765//1465RPM,3PH,60HZ,215TC,X
ABB
CDRX21144T

10HP,1765//1465RPM,3PH,60HZ,215TC,X

ABB CDRX21144T-5 – 10HP,1765RPM,3PH,60HZ,215TC,XPFC,F1
ABB
CDRX21144T-5

10HP,1765RPM,3PH,60HZ,215TC,XPFC,F1

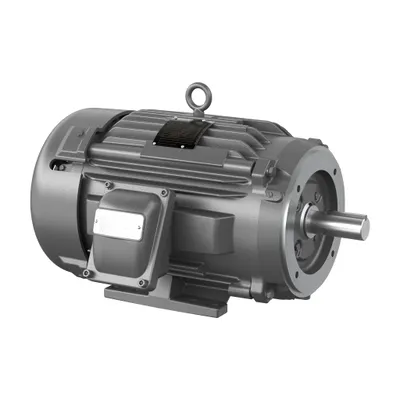

ABB CDRX21564T – 5HP,1160//965RPM,3PH,60/50HZ,215TC
