Home / ABB / Flameproof IEC Low voltage motors / ABB 3GVA092550-CSS

ABB

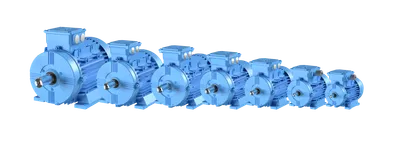

ABB 3GVA092550-CSS

M2VAM 90LE 4

MPN: 3GVA092550-CSS
Category: Flameproof IEC Low voltage motors

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the ABB 3GVA092550-CSS?

M2VAM 90LE 4

Specifications

Ordering

ABB Type Designation	M2VAM 90LE 4
Invoice Description	M2VAM 90LE 4
Product Name	3-Phase squirrel cage motor
Product Type	MVA3__M2VAM_IE3_AA
Country or Territory of Origin	China
Customs Tariff Number	85015220
Medium Description	?kW, 4P, Frame Size 90, 3 Phases, 400V, ?Hz, IP55 Enclosure, IMB14/IM3601 Mounting (3GVA092550-CSS) kW
Short Description	?kW, 4P, Frame Size 90, 3PH, 400V, ?Hz, IP55, IMB14/IM3601 kW

Electrical

Temperature Class Default	--
Altitude	1000 m m
Ambient Temperature	50 °C
IC Class	IC411
IE Class Data (50 Hz)	IE Class IE3, Full Load (100%) 85.3 %, Partial Load (75%) 85.6 %, Partial Load (50%) 84.1 %
IE Class Data (60 Hz)	IE Class IE3, Full Load (100%) 86.5 %, Partial Load (75%) 86.3 %, Partial Load (50%) 84.4 %
IP Class	IP55
Insulation Class	ICLF
Direction of Rotation	Both sides
Number of Poles (High)	4
Two Speed Motor	No
Type of Duty	S1
Voltage Code	S

Mechanical

Frame Material	Aluminum
Frame Size	90
Bearing	6205-2Z/C3
Bearing NDE	6204-2Z/C3
IM Class	IMB14 IM3601
Terminator Box Location	D-End top

Dimensions

Product Net Weight	20 kg kg
Gross Weight	23 kg kg

Environmental

WEEE Category

5. Small Equipment (No External Dimension More Than 50 cm) cm

External Classifications and Standards

UNSPSC

26101100
