ABB 3GRP313516-ADG

MPN: 3GRP313516-ADG
Category: Flameproof IEC Low voltage motors

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare ABB parts? We buy surplus →

What is the ABB 3GRP313516-ADG?

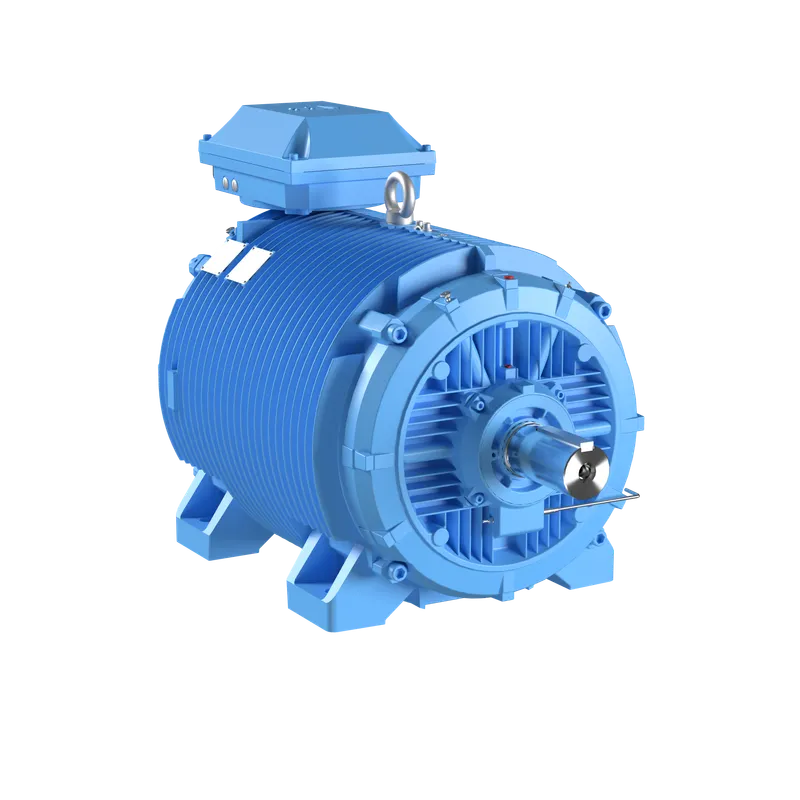

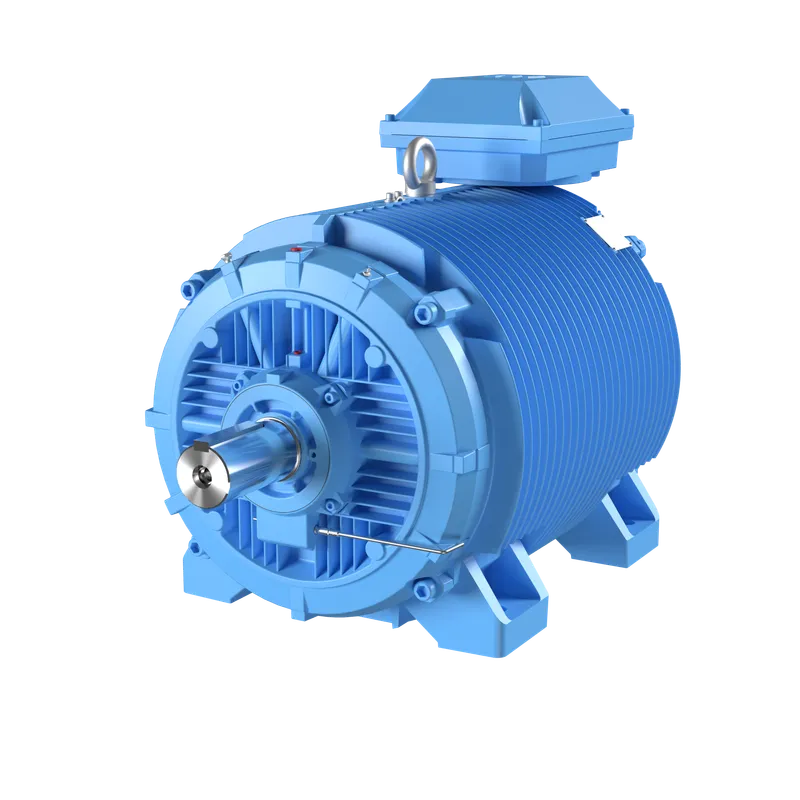

M3RP 315LA 6

Specifications

Ordering

ABB Type Designation	M3RP 315LA 6
Invoice Description	M3RP 315LA 6
Product Name	3-Phase squirrel cage motor
Product Type	3RP0__M3RP_CI
Country or Territory of Origin	Finland
Customs Tariff Number	85015230
Replaced Product ID (OLD)	3GRP313510-AXG
Medium Description	37kW, 6 Poles, Frame Size 315, 3 Phases, 400V, 50Hz, IP55 Enclosure, IMB3/IM1001 Mounting (3GRP313516-ADG)
Short Description	37kW, 6P, Frame Size 315, 3PH, 400V, 50Hz, IP55, IMB3/IM1001

Electrical

Connection Configuration	Y
Temperature Class Default	--
Input Voltage (Uin)	400 V V
Frequency (f)	50 Hz Hz
Motor Operational Voltage	400 V V
Operating Frequency (fsw)	50.000 Hz Hz
Output Power	37 kW kW
Altitude	1000 m m
Ambient Temperature	40 °C
IC Class	IC410
IE Class Data (50 Hz)	IE Class NA, Full Load (100%) 93.9 %, Partial Load (75%) 93.7 %, Partial Load (50%) 92.6 %
IP Class	IP55
Insulation Class	ICLF
Direction of Rotation	Both sides
Number of Poles (High)	6
Two Speed Motor	No
Type of Duty	S9
Voltage Code	D

Mechanical

Frame Material	Cast Iron
Frame Size	315
Bearing	6319/C3
Bearing NDE	6316/C3VL0241
IM Class	IMB3 IM1001
Terminator Box Location	N-End top

Dimensions

Product Net Weight	870 kg kg
Gross Weight	890 kg kg

Environmental

WEEE Category

4. Large Equipment (Any External Dimension More Than 50 cm) cm

External Classifications and Standards

UNSPSC

26101100
