What is the ABB 3GQA082310-BSL?

(3GQA082310-BSL)

Specifications

Ordering

ABB Type Designation	M2QA 80MA4
Invoice Description	M2QA 80MA4

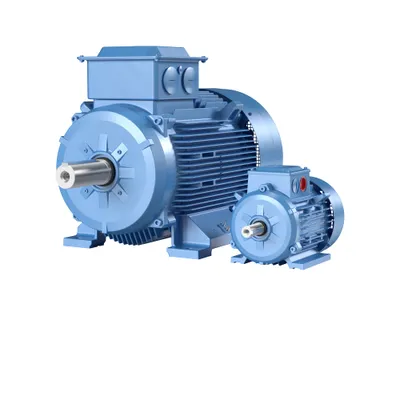

Product Name	3 PHASE AC MOTOR
Product Type	CQA3__M2QA_IE3_CI
Country or Territory of Origin	China
Customs Tariff Number	85015220
Stocked At (Warehouses)	Shanghai, China
Medium Description	?kW, 4P, Frame Size 80, 3 Phases, 400V, ?Hz, IP55 Enclosure, IMB5/IM3001 Mounting (3GQA082310-BSL) kW
Short Description	?kW, 4P, Frame Size 80, 3PH, 400V, ?Hz, IP55, IMB5/IM3001 kW

Electrical

Temperature Class Default	--
Altitude	1000 m m
Ambient Temperature	40 °C
IC Class	IC411
IE Class Data (50 Hz)	IE Class IE3, Full Load (100%) 80.8 %, Partial Load (75%) 81.1 %, Partial Load (50%) 78.7 %
IP Class	IP55
Insulation Class	ICLF
Direction of Rotation	Both sides
Number of Poles (High)	4
Two Speed Motor	No
Type of Duty	S1
Voltage Code	S

Mechanical

Frame Material	Cast Iron
Frame Size	80
Bearing	6204-2Z/C3
Bearing NDE	6204-2Z/C3
Lubrication	For life
IM Class	IMB5 IM3001
Terminator Box Location	D-End top

Dimensions

Product Net Weight	20 kg kg
Gross Weight	21 kg kg

Environmental

WEEE Category

5. Small Equipment (No External Dimension More Than 50 cm) cm

External Classifications and Standards

Standards	IEC 60034-1
UNSPSC	26101100, 39120000
