Home / ABB / Flameproof IEC Low voltage motors / ABB 3GQA081310-BSG

ABB

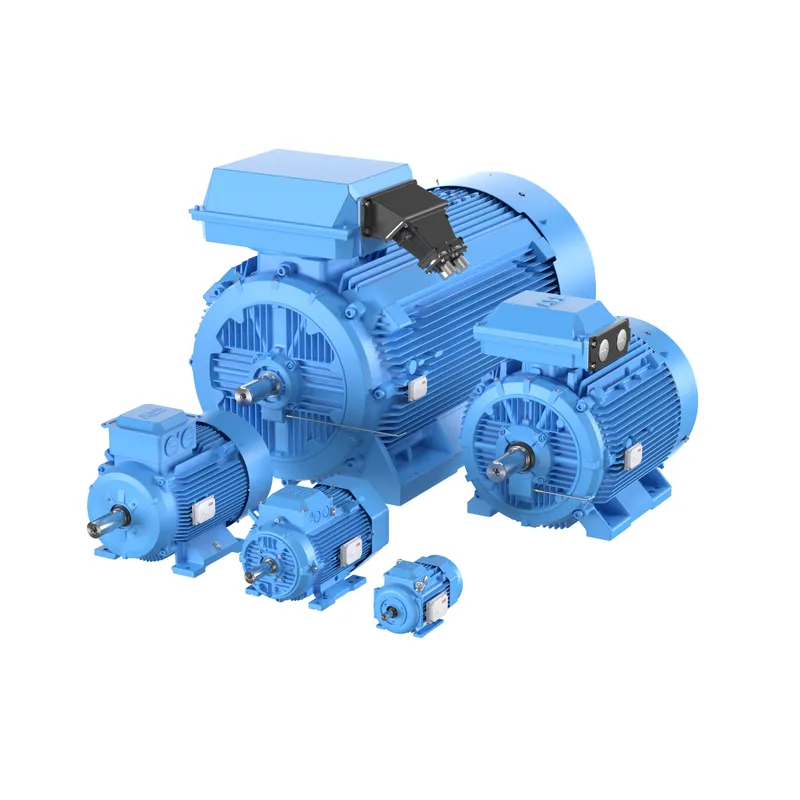

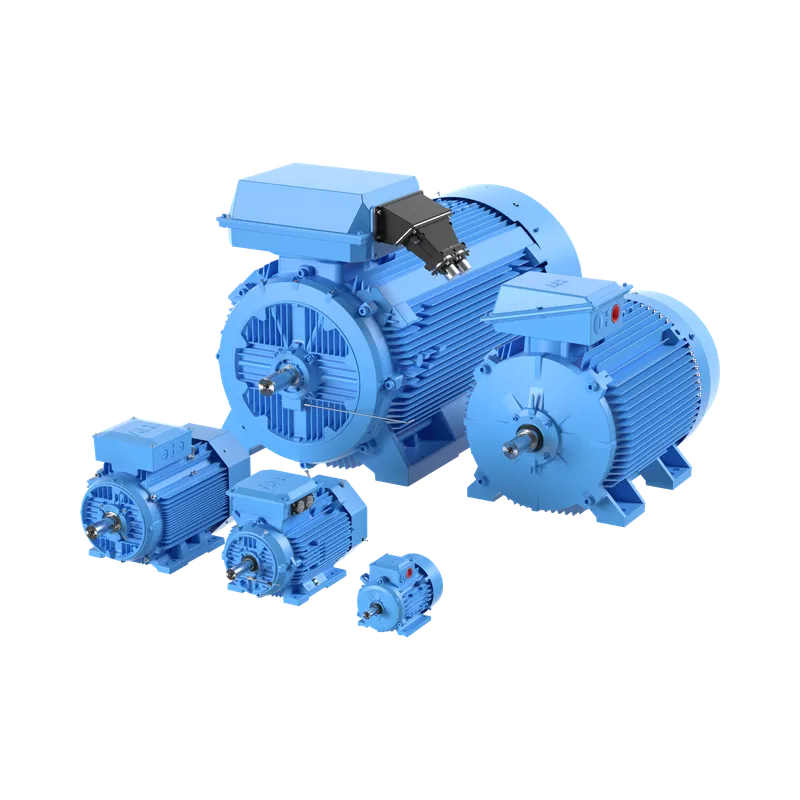

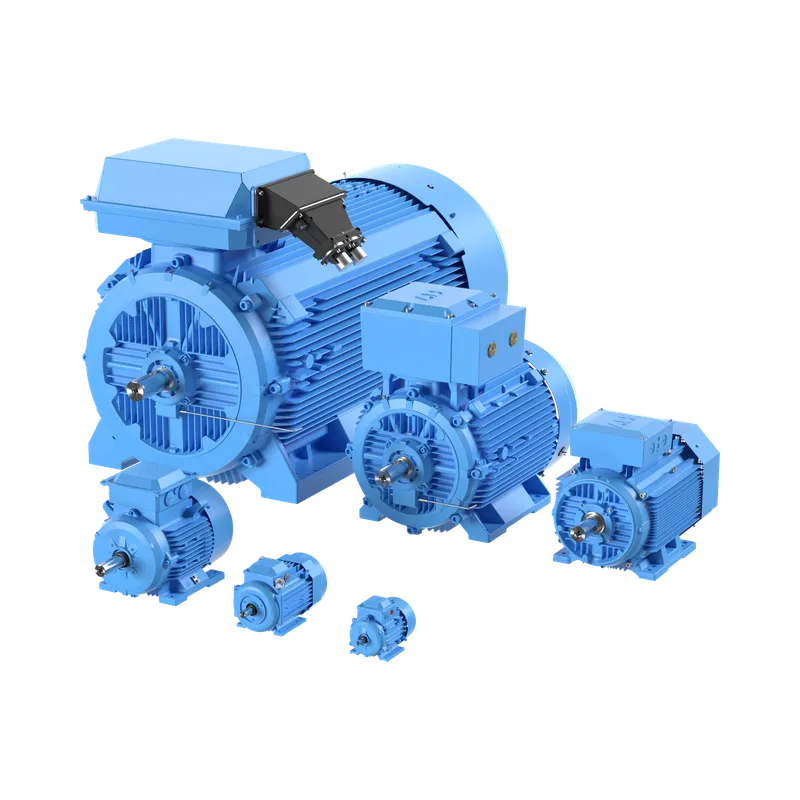

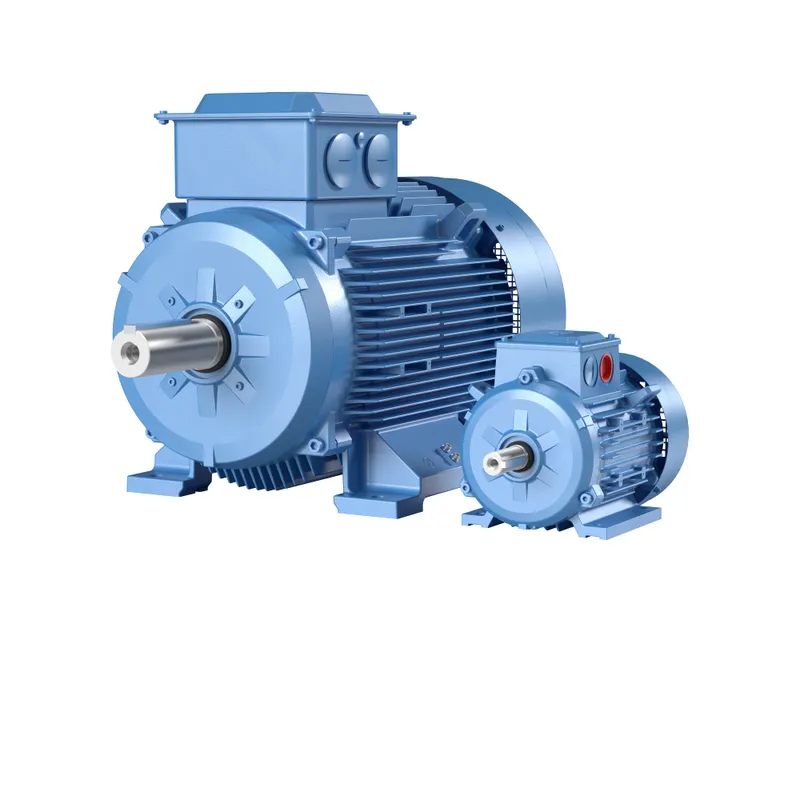

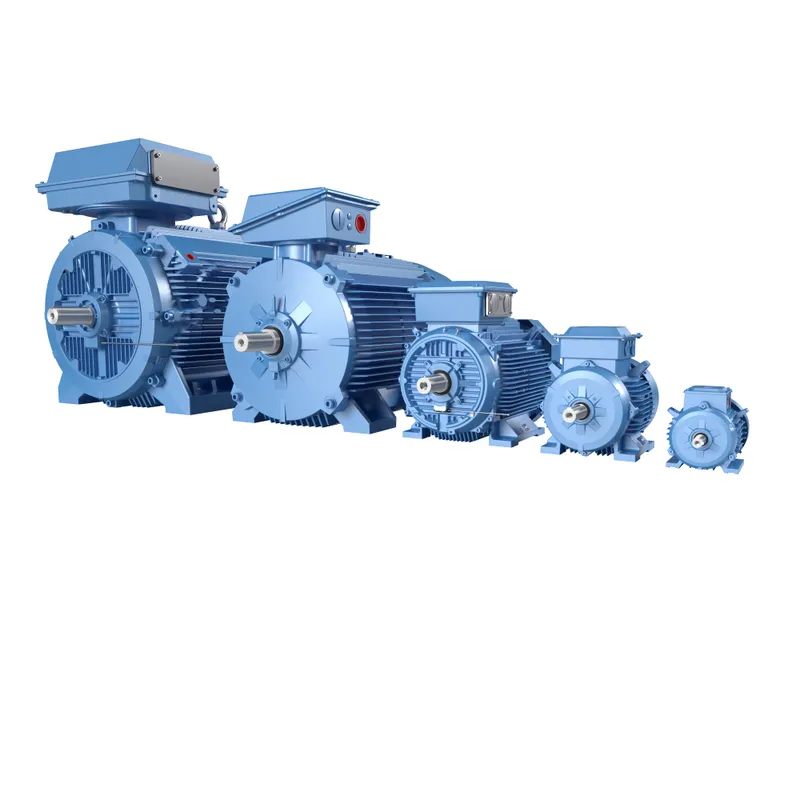

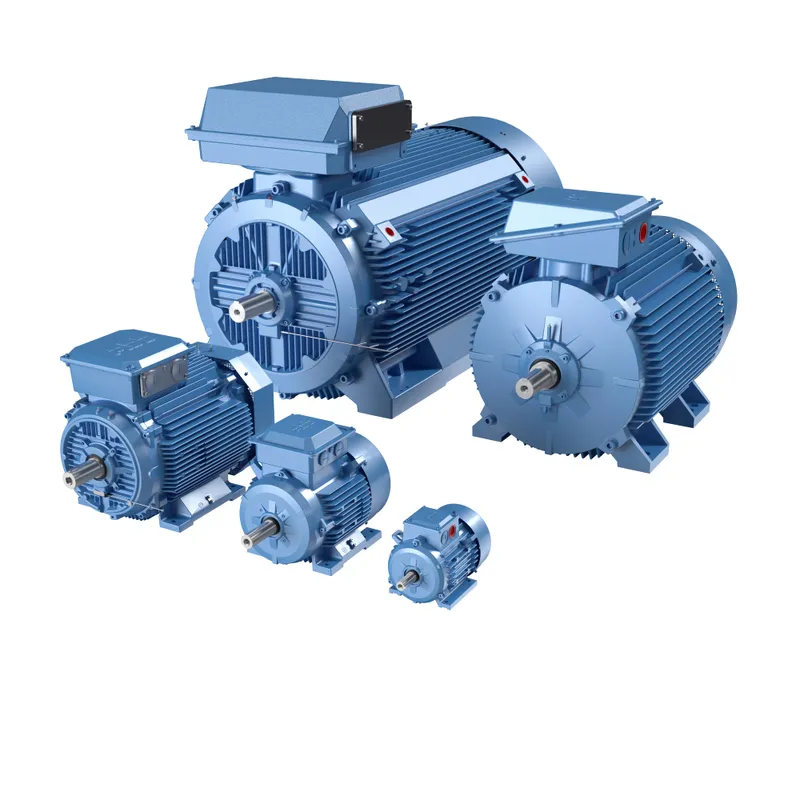

ABB 3GQA081310-BSG

MPN: 3GQA081310-BSG
Category: Flameproof IEC Low voltage motors

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare ABB parts? We buy surplus →

What is the ABB 3GQA081310-BSG?

(3GQA081310-BSG)

Specifications

Ordering

ABB Type Designation	M2QA 80MA 2
Invoice Description	M2QA 80MA 2
Product Name	3-Phase squirrel cage motor
Product Type	CQA2__M2QA_IE2_CI
Country or Territory of Origin	China
Customs Tariff Number	85015100
Stocked At (Warehouses)	Shanghai, China
Medium Description	?kW, 2P, Frame Size 80, 3 Phases, 400V, ?Hz, IP55 Enclosure, IMB5/IM3001 Mounting (3GQA081310-BSG) kW
Short Description	?kW, 2P, Frame Size 80, 3PH, 400V, ?Hz, IP55, IMB5/IM3001 kW

Electrical

Temperature Class Default	--
Altitude	1000 m m
Ambient Temperature	40 °C
IC Class	IC411
IE Class Data (50 Hz)	IE Class IE2, Full Load (100%) 77.4 %, Partial Load (75%) 79.7 %, Partial Load (50%) 79.3 %
IP Class	IP55
Insulation Class	ICLF
Direction of Rotation	Both sides
Number of Poles (High)	2
Two Speed Motor	No
Type of Duty	S1
Voltage Code	S

Mechanical

Frame Material	Cast Iron
Frame Size	80
Bearing	6204-2Z/C3
Bearing NDE	6204-2Z/C3
IM Class	IMB5 IM3001
Terminator Box Location	D-End top

Dimensions

Product Net Weight	17.4 kg kg
Gross Weight	18.4 kg kg

Environmental

WEEE Category

5. Small Equipment (No External Dimension More Than 50 cm) cm

External Classifications and Standards

UNSPSC

26101100

3GQA081310-BSG: frequently asked questions

When can 3GQA081310-BSG be shipped?

3GQA081310-BSG is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 3GQA081310-BSG in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 3GQA081310-BSG and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 3GQA081310-BSG, subject to availability and destination.
