ABB 3GLT132722-HDB

MPN: 3GLT132722-HDB
Category: Flameproof IEC Low voltage motors

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare ABB parts? We buy surplus →

What is the ABB 3GLT132722-HDB?

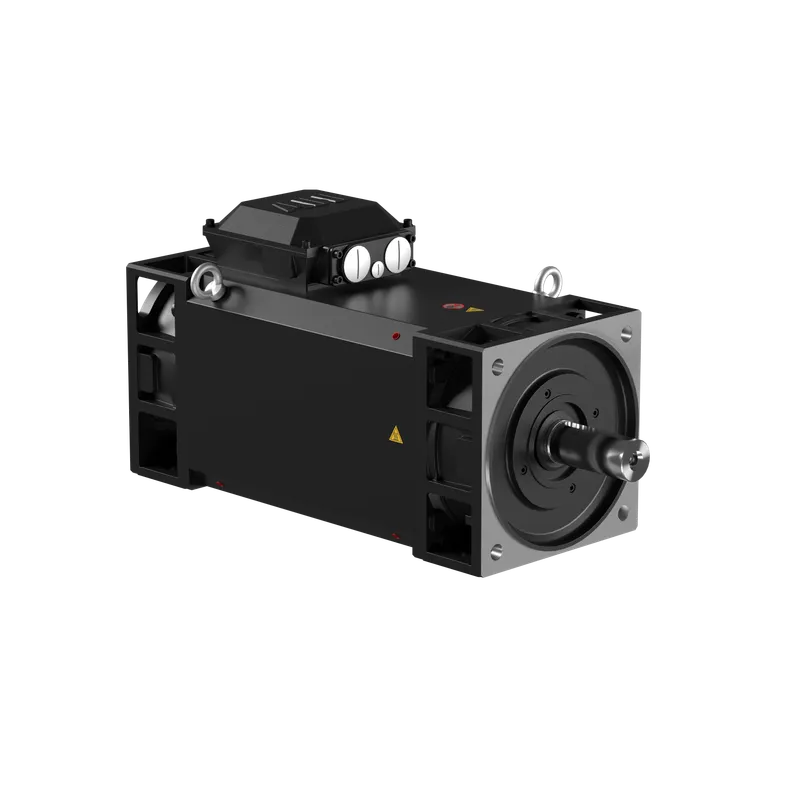

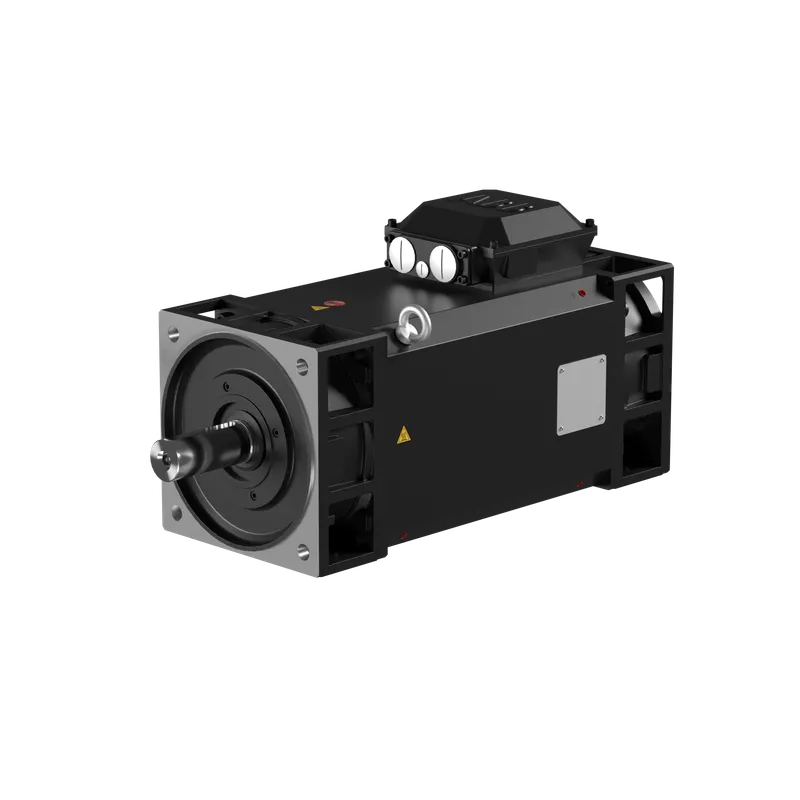

HDP Induction Motors, 18.5 kW, 400 V (3GLT132722-HDB)

Specifications

Ordering

ABB Type Designation	M3LT 132B 4
Invoice Description	M3LT 132B 4
Product Name	High dynamic performance motors
Product Type	3LTB__M3LT__HDP__water_cooled_motor_
Country or Territory of Origin	Finland
Customs Tariff Number	85015230
Medium Description	18.5kW, 4P, Frame Size 132, 3 Phases, 400V, 50Hz, IP55 Enclosure, IMB35/IM2001 Mounting (3GLT132722-HDB)
Short Description	18.5kW, 4P, Frame Size 132, 3PH, 400V, 50Hz, IP55, IMB35/IM2001

Electrical

Connection Configuration	Y
Temperature Class Default	--
Input Voltage (Uin)	400 V V
Frequency (f)	50 Hz Hz
Motor Operational Voltage	335 V V
Operating Frequency (fsw)	51.300 Hz Hz
Output Power	18.5 kW kW
Altitude	1000 m m
Ambient Temperature	40 °C
IC Class	IC71W
IE Class Data (50 Hz)	IE Class IE1, Full Load (100%) 89.4 %, Partial Load (75%) 90.5 %, Partial Load (50%) 91.2 %
IE Class Data (60 Hz)	IE Class IE1, Full Load (100%) 90.3 %, Partial Load (75%) 90.9 %, Partial Load (50%) 90.6 %
IP Class	IP55
Insulation Class	ICLH
Direction of Rotation	Both sides
Number of Poles (High)	4
Two Speed Motor	No
Type of Duty	S9
Voltage Code	D

Mechanical

Frame Material	Aluminum
Frame Size	132
Bearing	6310-2Z
Bearing NDE	6310-2Z
IM Class	IMB35 IM2001
Terminator Box Location	N-End top

Dimensions

Product Net Depth / Length	531 mm mm
Product Net Height	347 mm mm
Product Net Width	262 mm mm
Product Net Weight	89.4 kg kg
Gross Weight	94.4 kg kg

Environmental

WEEE Category

4. Large Equipment (Any External Dimension More Than 50 cm) cm

External Classifications and Standards

UNSPSC

26101100
