Home / ABB / Flameproof IEC Low voltage motors / ABB 3GLP354820-ADG

ABB

ABB 3GLP354820-ADG

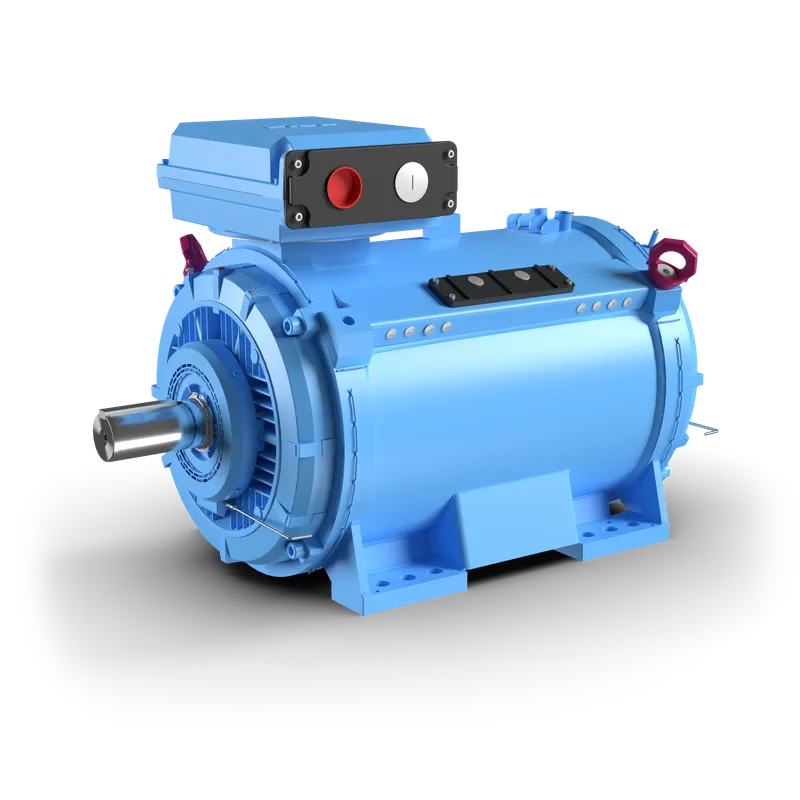

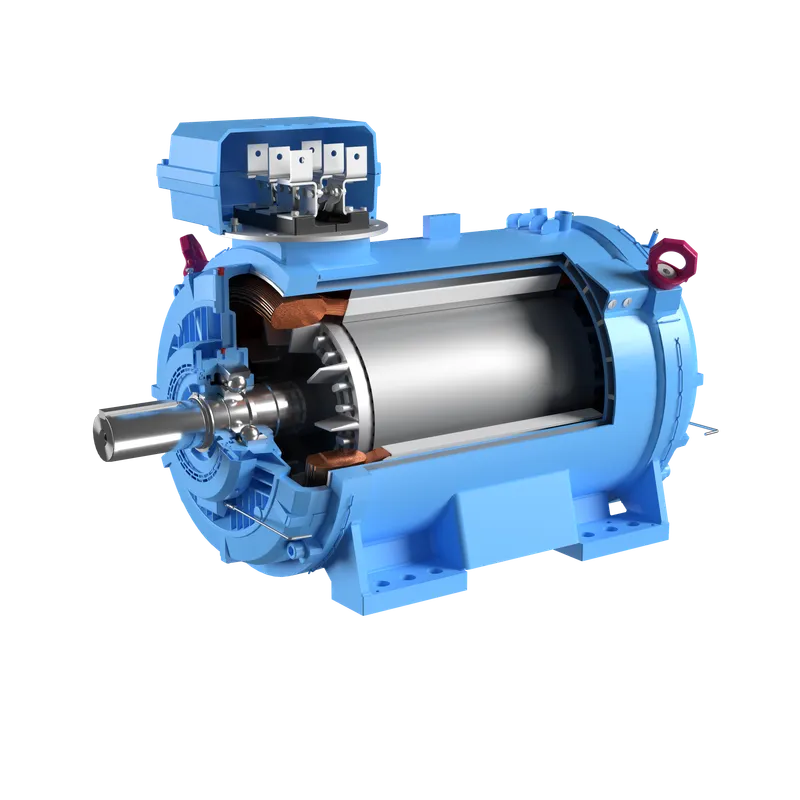

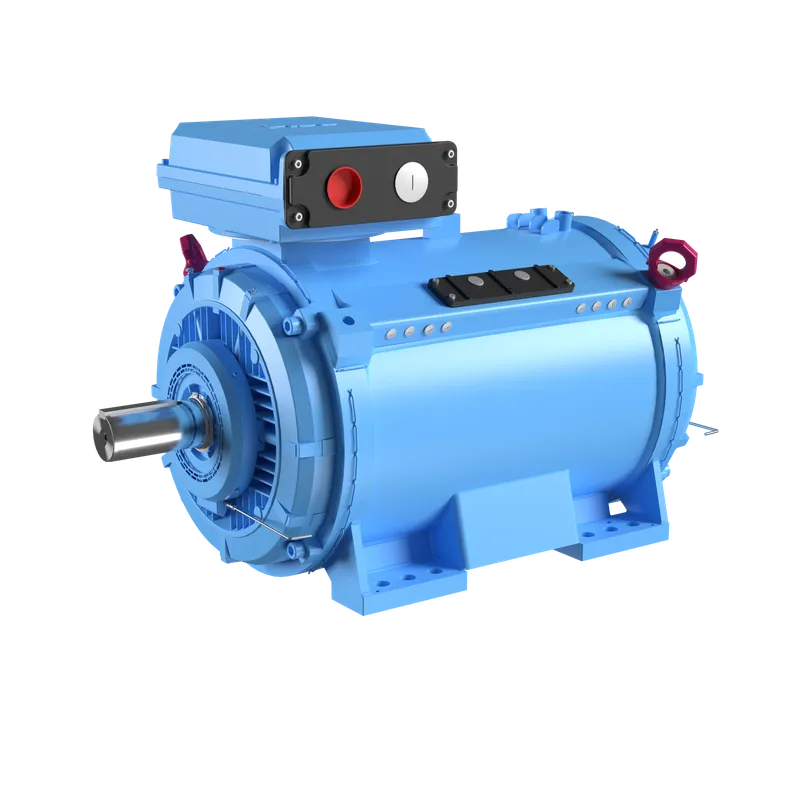

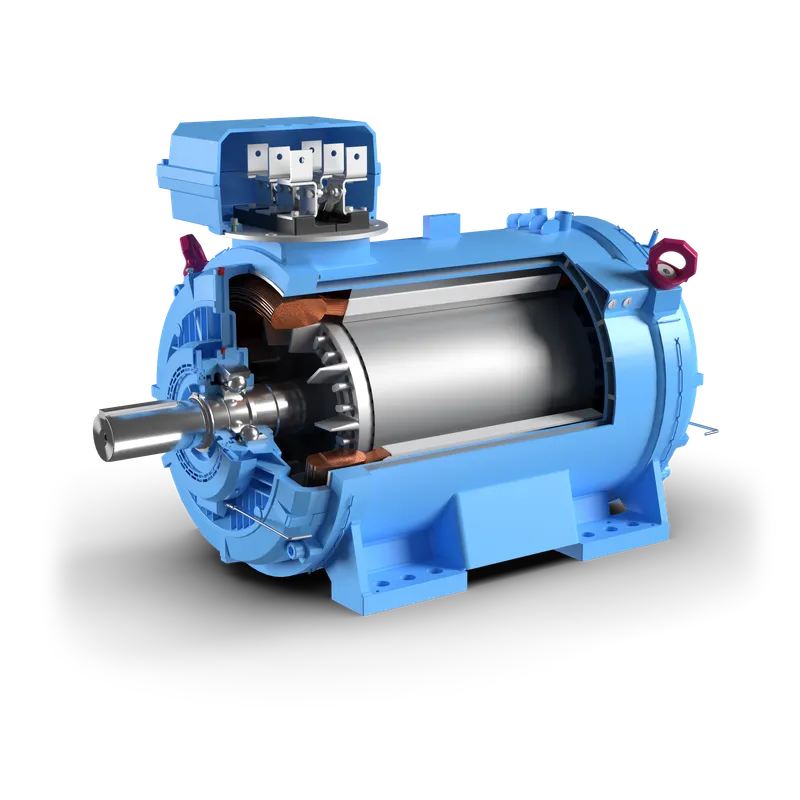

M3LP 355LKB 8

MPN: 3GLP354820-ADG
Category: Flameproof IEC Low voltage motors

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare ABB parts? We buy surplus →

What is the ABB 3GLP354820-ADG?

(3GLP354820-ADG)

Specifications

Ordering

ABB Type Designation	M3LP 355LKB 8
Invoice Description	Water cooled motor
Product Name	3-Phase squirrel cage motor
Product Type	3LP2__water_cooled_motor_IE2
Country or Territory of Origin	Finland
Customs Tariff Number	85015381
Medium Description	?kW, 8P, Frame Size 355, 3 Phases, 400V, ?Hz, IP55 Enclosure, IMB3/IM1001 Mounting (3GLP354820-ADG) kW
Short Description	?kW, 8P, Frame Size 355, 3PH, 400V, ?Hz, IP55, IMB3/IM1001 kW

Electrical

Temperature Class Default	--
Altitude	1000 m m
Ambient Temperature	40 °C
IC Class	IC71W
IE Class Data (50 Hz)	IE Class IE2, Full Load (100%) 93.5 %, Partial Load (75%) 93.6 %, Partial Load (50%) 93.0 %
IP Class	IP55
Insulation Class	ICLF
Direction of Rotation	Both sides
Number of Poles (High)	8
Two Speed Motor	No
Type of Duty	S1
Voltage Code	D

Mechanical

Frame Material	Welded Steel
Frame Size	355
Bearing	6322/C3
Bearing NDE	6316/C3
IM Class	IMB3 IM1001
Terminator Box Location	Top

Dimensions

Product Net Weight	2450 kg kg
Gross Weight	2480 kg kg

Environmental

WEEE Category

4. Large Equipment (Any External Dimension More Than 50 cm) cm

External Classifications and Standards

UNSPSC

26101100
