Home / ABB / Flameproof IEC Low voltage motors / ABB 3GLP314410-HDK

ABB

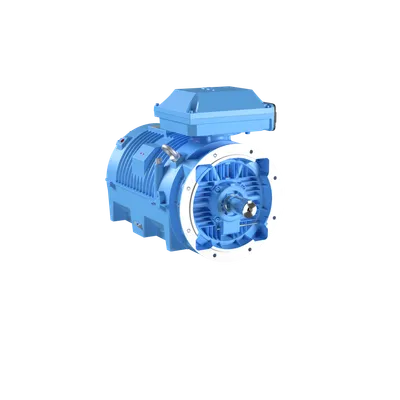

ABB 3GLP314410-HDK

M3LP 315MLA 8

MPN: 3GLP314410-HDK
Category: Flameproof IEC Low voltage motors

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare ABB parts? We buy surplus →

What is the ABB 3GLP314410-HDK?

M3LP 315MLA 8

Specifications

Ordering

ABB Type Designation	M3LP 315MLA 8
Invoice Description	M3LP 315MLA 8
Product Name	3-Phase squirrel cage motor
Product Type	3LP3__water_cooled_motor_IE3
Country or Territory of Origin	Finland
Customs Tariff Number	85015381
Medium Description	?kW, 8P, Frame Size 315, 3 Phases, 400V, ?Hz, IP55 Enclosure, IMB35/IM2001 Mounting (3GLP314410-HDK) kW
Short Description	?kW, 8P, Frame Size 315, 3PH, 400V, ?Hz, IP55, IMB35/IM2001 kW

Electrical

Temperature Class Default	--
Altitude	1000 m m
Ambient Temperature	40 °C
IC Class	IC71W
IE Class Data (50 Hz)	IE Class IE3, Full Load (100%) 93.7 %, Partial Load (75%) 94.1 %, Partial Load (50%) 93.7 %
IP Class	IP55
Insulation Class	ICLF
Direction of Rotation	Both sides
Number of Poles (High)	8
Two Speed Motor	No
Type of Duty	S1
Voltage Code	D

Mechanical

Frame Material	Aluminum
Frame Size	315
Bearing	6319/C3
Bearing NDE	6316/C3
IM Class	IMB35 IM2001
Terminator Box Location	Top

Dimensions

Product Net Weight	1028 kg kg
Gross Weight	1048 kg kg

Environmental

WEEE Category

4. Large Equipment (Any External Dimension More Than 50 cm) cm

External Classifications and Standards

UNSPSC

26101100

3GLP314410-HDK: frequently asked questions

When can 3GLP314410-HDK be shipped?

3GLP314410-HDK is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 3GLP314410-HDK in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 3GLP314410-HDK and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 3GLP314410-HDK, subject to availability and destination.
