What is the ABB 3GLP314340-HDK?

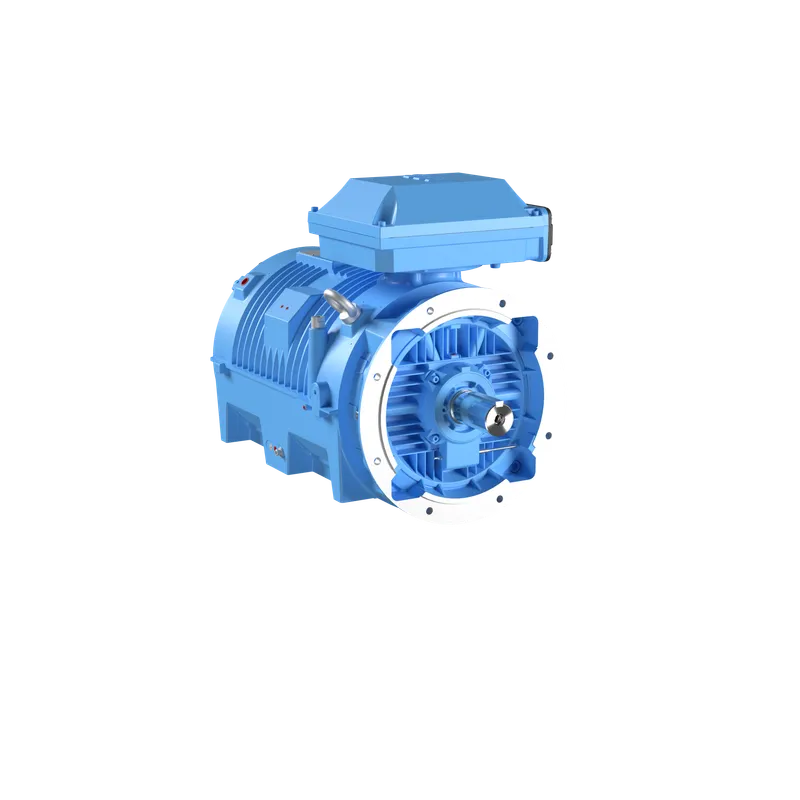

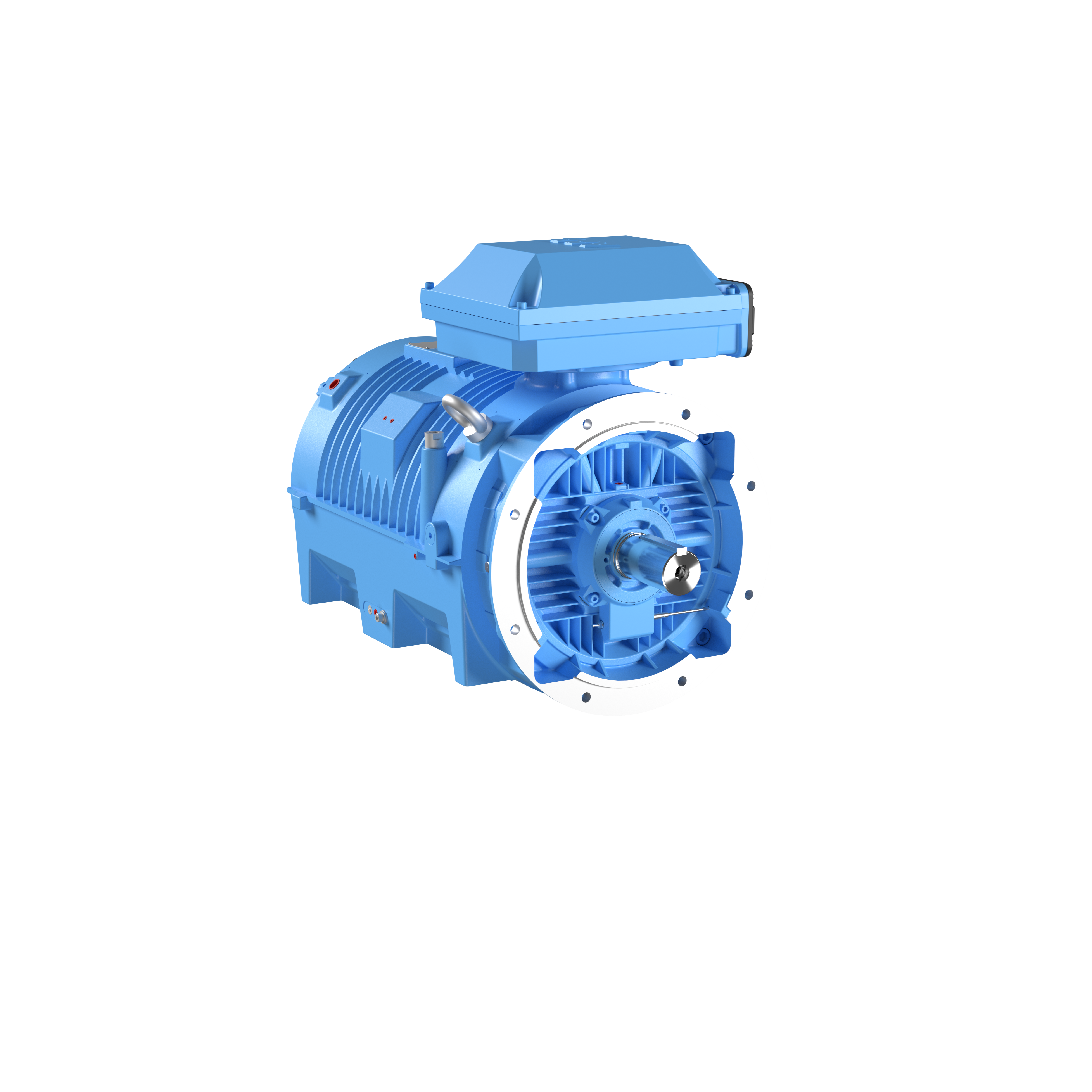

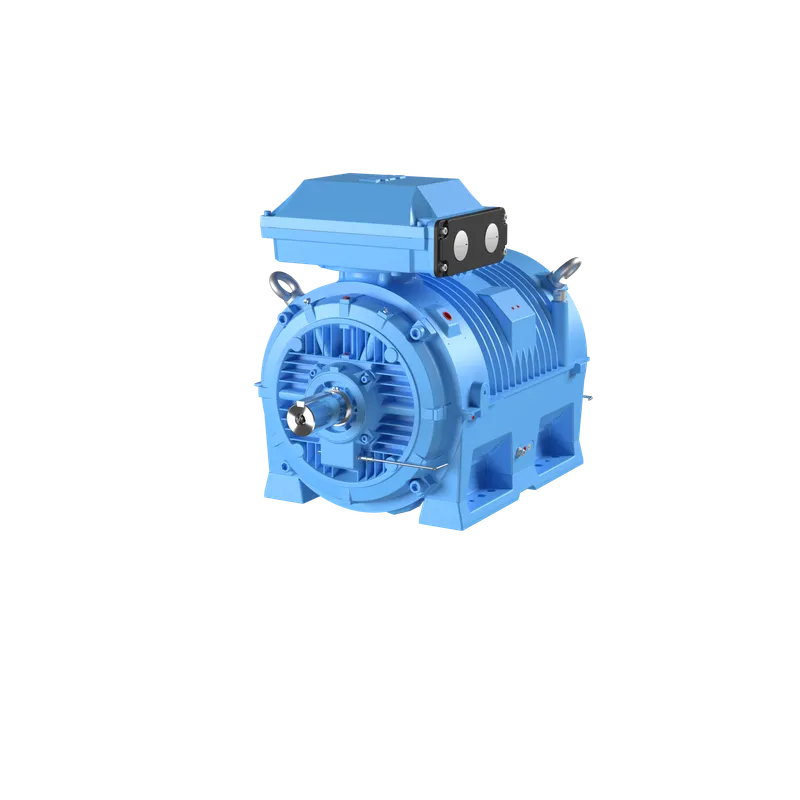

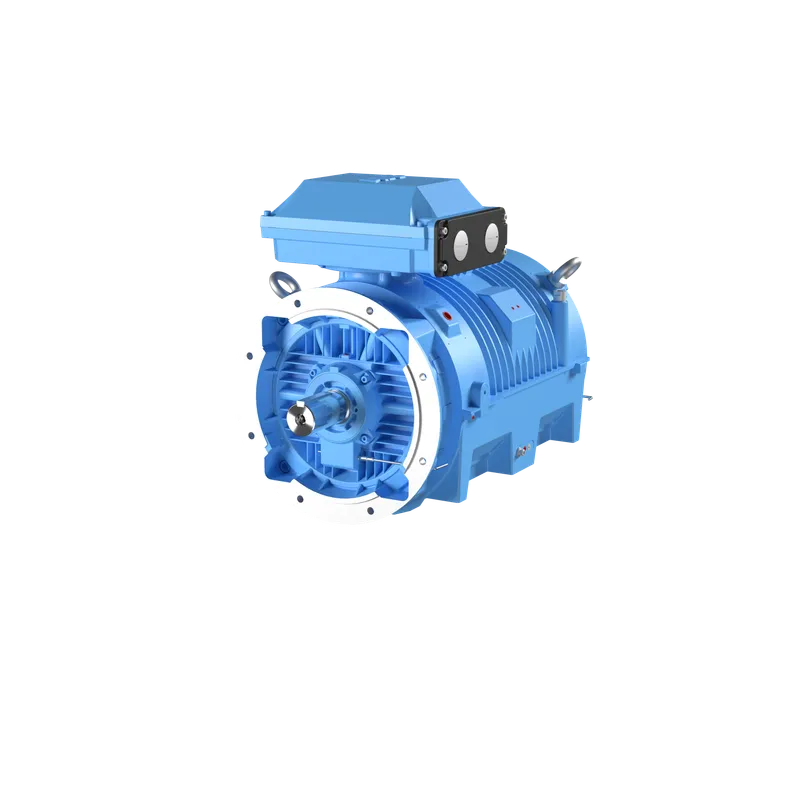

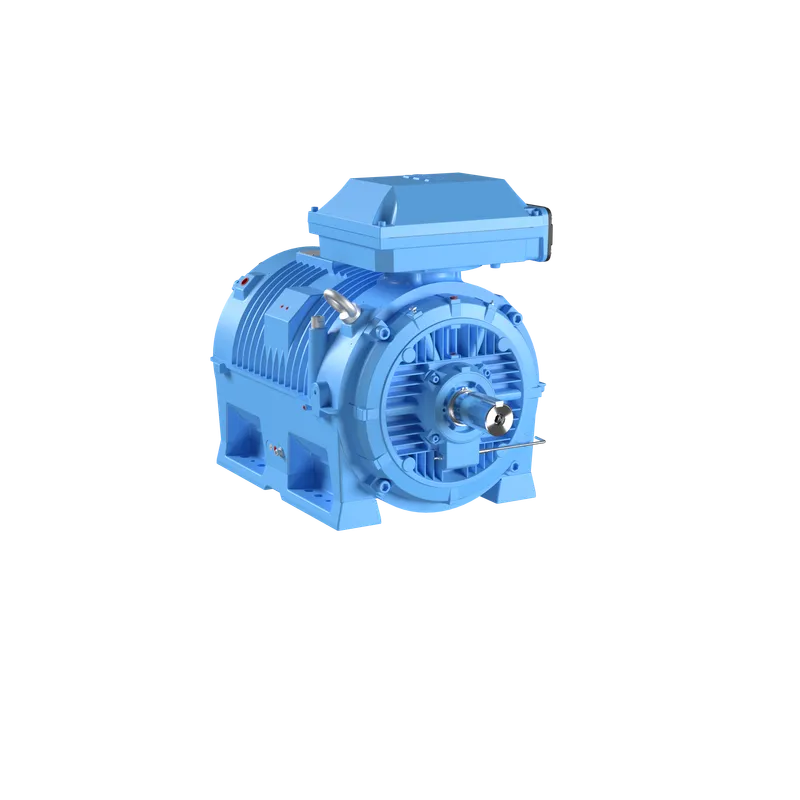

M3LP 315MD 8

Specifications

Ordering

ABB Type Designation	M3LP 315MD 8
Invoice Description	M3LP 315MD 8
Product Name	3-Phase squirrel cage motor
Product Type	3LP3__water_cooled_motor_IE3
Country or Territory of Origin	Finland
Customs Tariff Number	85015381
Medium Description	?kW, 8P, Frame Size 315, 3 Phases, 400V, ?Hz, IP55 Enclosure, IMB35/IM2001 Mounting (3GLP314340-HDK) kW
Short Description	?kW, 8P, Frame Size 315, 3PH, 400V, ?Hz, IP55, IMB35/IM2001 kW

Electrical

Temperature Class Default	--
Altitude	1000 m m
Ambient Temperature	40 °C
IC Class	IC71W
IE Class Data (50 Hz)	IE Class IE3, Full Load (100%) 93.4 %, Partial Load (75%) 93.5 %, Partial Load (50%) 92.8 %
IP Class	IP55
Insulation Class	ICLF
Direction of Rotation	Both sides
Number of Poles (High)	8
Two Speed Motor	No
Type of Duty	S1
Voltage Code	D

Mechanical

Frame Material	Aluminum
Frame Size	315
Bearing	6319/C3
Bearing NDE	6316/C3
IM Class	IMB35 IM2001
Terminator Box Location	Top

Dimensions

Product Net Weight	850 kg kg
Gross Weight	870 kg kg

Environmental

WEEE Category

4. Large Equipment (Any External Dimension More Than 50 cm) cm

External Classifications and Standards

UNSPSC

26101100
