ABB 3GKP454530-BDK

MPN: 3GKP454530-BDK
Category: Flameproof IEC Low voltage motors

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare ABB parts? We buy surplus →

What is the ABB 3GKP454530-BDK?

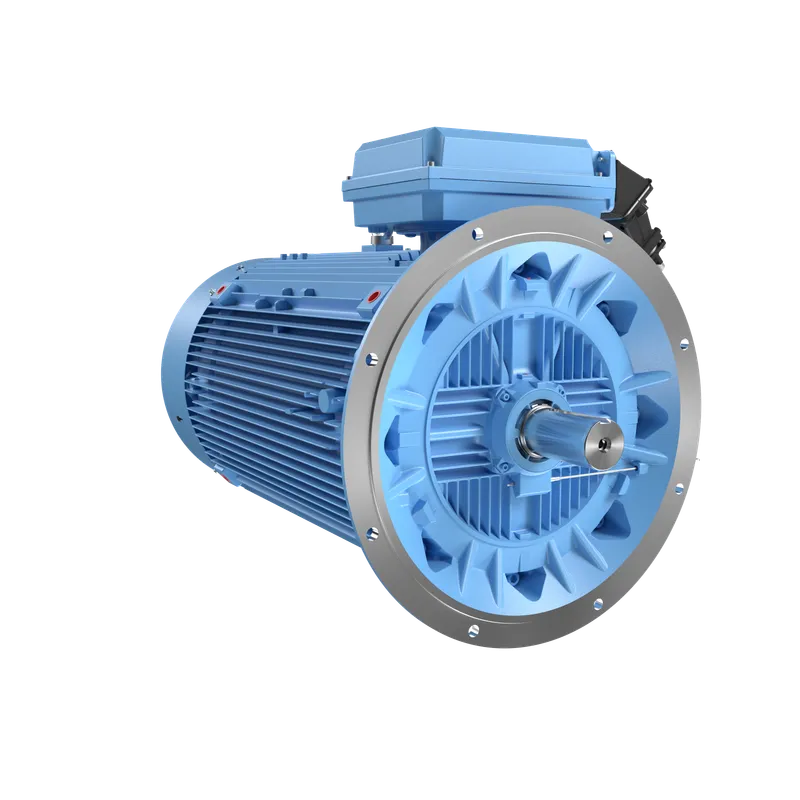

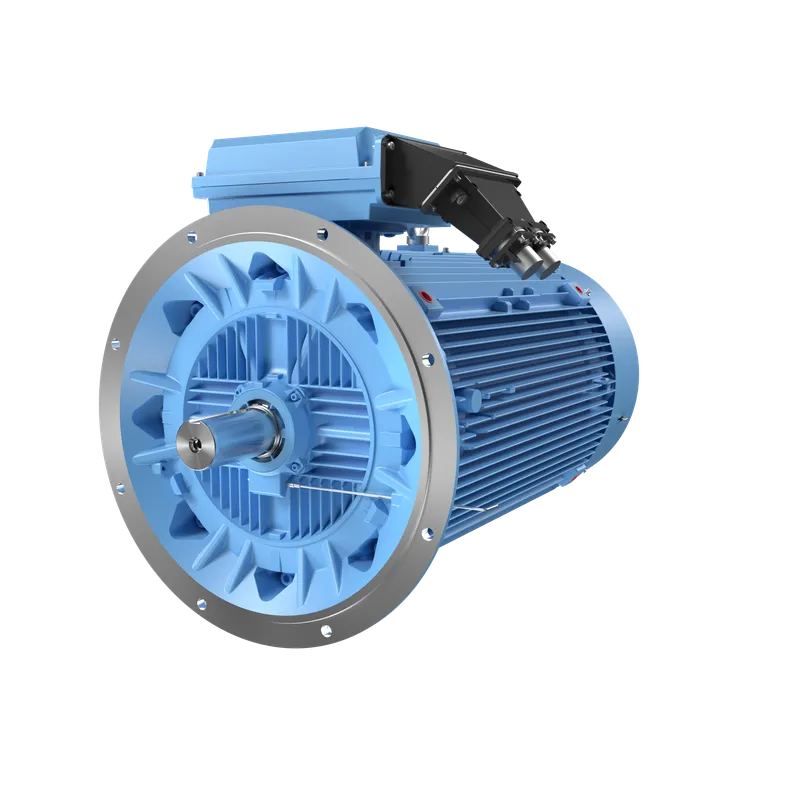

Flameproof IE3 Premium Efficiency Motors, 530 kW, 400 V (3GKP454530-BDK)

Specifications

Ordering

ABB Type Designation	M3KP 450LC 8
Invoice Description	M3KP 450LC 8
Product Name	3-Phase squirrel cage motor
Product Type	3KP3__M3KP_IE3_Flameproof_Ex_db_eb_motor
Country or Territory of Origin	Finland
Customs Tariff Number	85015394
Medium Description	530kW, 8 Poles, Frame Size 450, 3 Phases, 400V, 50Hz, IP55 Enclosure, IMB5/IM3001 Mounting (3GKP454530-BDK)
Short Description	530kW, 8P, Frame Size 450, 3PH, 400V, 50Hz, IP55, IMB5/IM3001

Electrical

Connection Configuration	D
Temperature Class Default	T4
Input Voltage (Uin)	400 V V
Frequency (f)	50 Hz Hz
Output Power	530 kW kW
Altitude	1000 m m
Ambient Temperature	40 °C
IC Class	IC411
IE Class Data (50 Hz)	IE Class IE3, Full Load (100%) 94.6 %, Partial Load (75%) 94.6 %, Partial Load (50%) 93.9 %
IE Class Data (60 Hz)	IE Class IE3, Full Load (100%) 95.0 %, Partial Load (75%) 94.9 %, Partial Load (50%) 93.9 %
IP Class	IP55
Insulation Class	ICLF
Direction of Rotation	Both sides
Number of Poles (High)	8
Two Speed Motor	No
Type of Duty	S1
Voltage Code	D
EX-Protection	Exdbeb
Gas Group	IIB

Mechanical

Frame Material	Cast Iron
Frame Size	450
Bearing	6326/C3
Bearing NDE	6322/C3
IM Class	IMB5 IM3001
Terminator Box Location	Top

Dimensions

Product Net Depth / Length	2073 mm mm
Product Net Height	1315 mm mm
Product Net Width	950 mm mm
Product Net Weight	4446 kg kg
Gross Weight	4486 kg kg

Environmental

WEEE Category

4. Large Equipment (Any External Dimension More Than 50 cm) cm

External Classifications and Standards

UNSPSC

26101100

3GKP454530-BDK: frequently asked questions

When can 3GKP454530-BDK be shipped?

3GKP454530-BDK is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 3GKP454530-BDK in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 3GKP454530-BDK and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 3GKP454530-BDK, subject to availability and destination.
