Home / ABB / Flameproof IEC Low voltage motors / ABB 3GKP352810-AEG

ABB

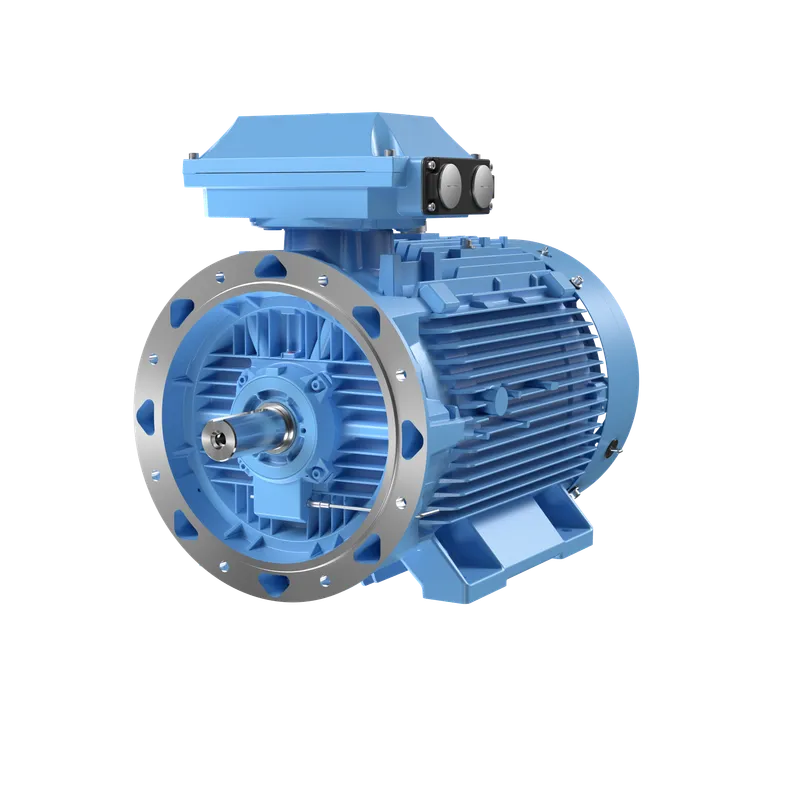

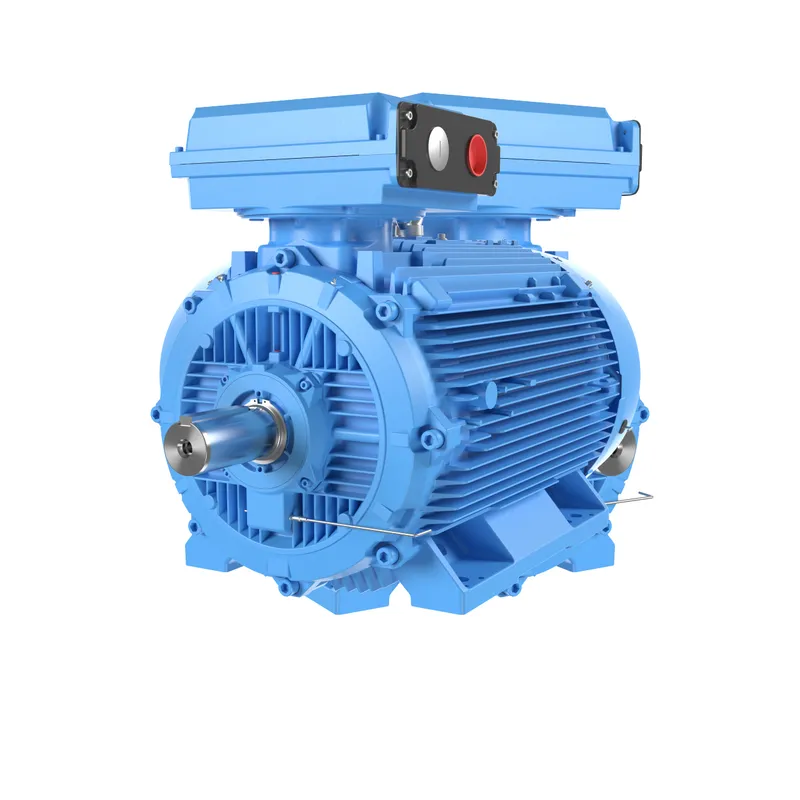

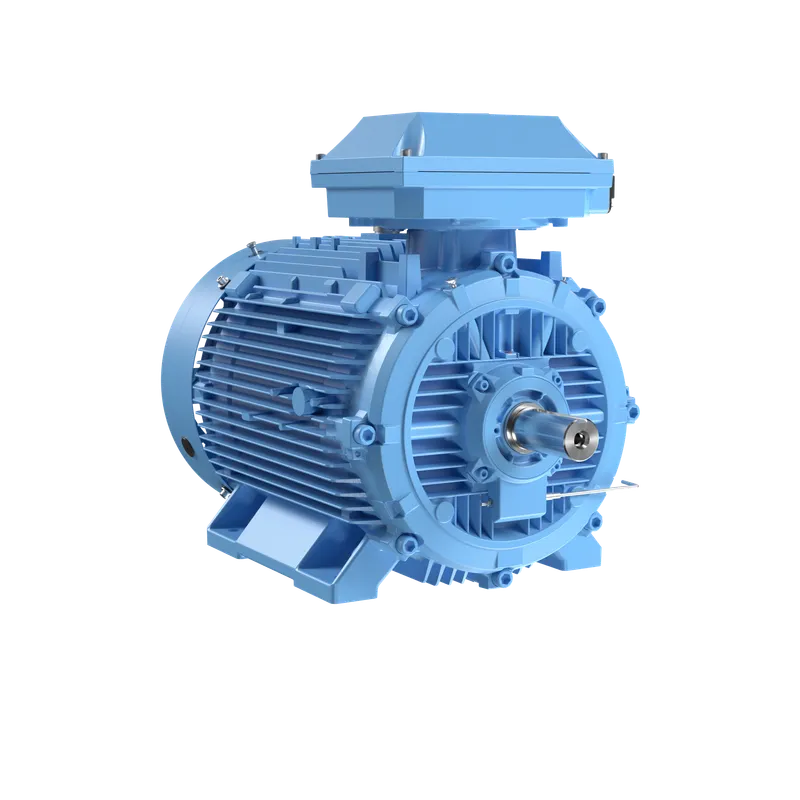

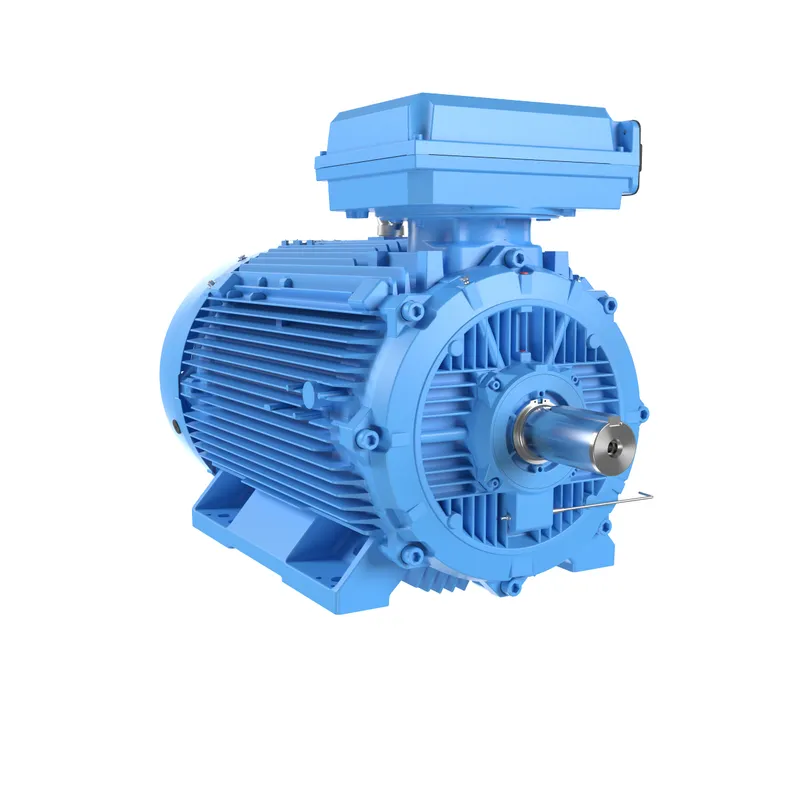

ABB 3GKP352810-AEG

M3KP 355LKA 4

MPN: 3GKP352810-AEG
Category: Flameproof IEC Low voltage motors

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare ABB parts? We buy surplus →

What is the ABB 3GKP352810-AEG?

Flameproof IE2 High Efficiency Motors, 250 kW, (3GKP352810-AEG)

Specifications

Ordering

ABB Type Designation	M3KP 355LKA 4
Invoice Description	M3KP 355LKA 4
Product Name	3-Phase squirrel cage motor
Product Type	3KP2__M3KP_IE2_Flameproof_Ex_db_eb_motor
Country or Territory of Origin	Finland
Customs Tariff Number	85015394
Medium Description	500kW, 4P, Frame Size 355, 3 Phases, 500V, 50Hz, IP55 Enclosure, IMB3/IM1001 Mounting (3GKP352810-AEG)
Short Description	500kW, 4P, Frame Size 355, 3PH, 500V, 50Hz, IP55, IMB3/IM1001

Electrical

Temperature Class Default	T4
Output Power	250 kW kW
Altitude	1000 m m
Ambient Temperature	40 °C
IC Class	IC411
IE Class Data (50 Hz)	IE Class IE2, Full Load (100%) 95.1 %, Partial Load (75%) 95.1 %, Partial Load (50%) 94.2 %
IP Class	IP55
Insulation Class	ICLF
Direction of Rotation	Both sides
Number of Poles (High)	4
Two Speed Motor	No
Type of Duty	S1
Voltage Code	E
EX-Protection	Exdbeb
Gas Group	IIB

Mechanical

Frame Material	Cast Iron
Frame Size	355
Bearing	6322/C3
Bearing NDE	6316/C3
IM Class	IMB3 IM1001

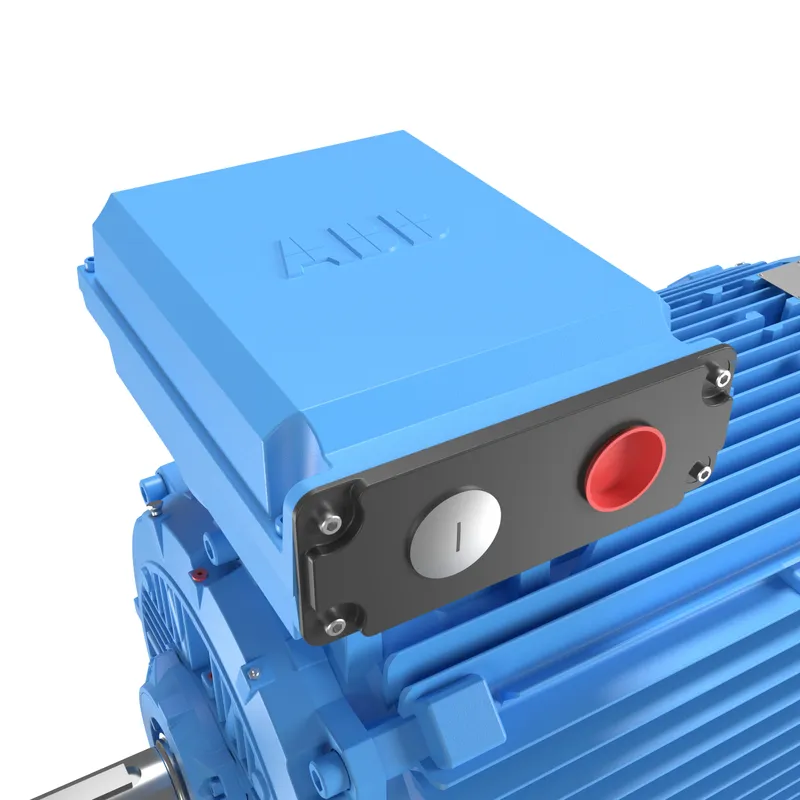

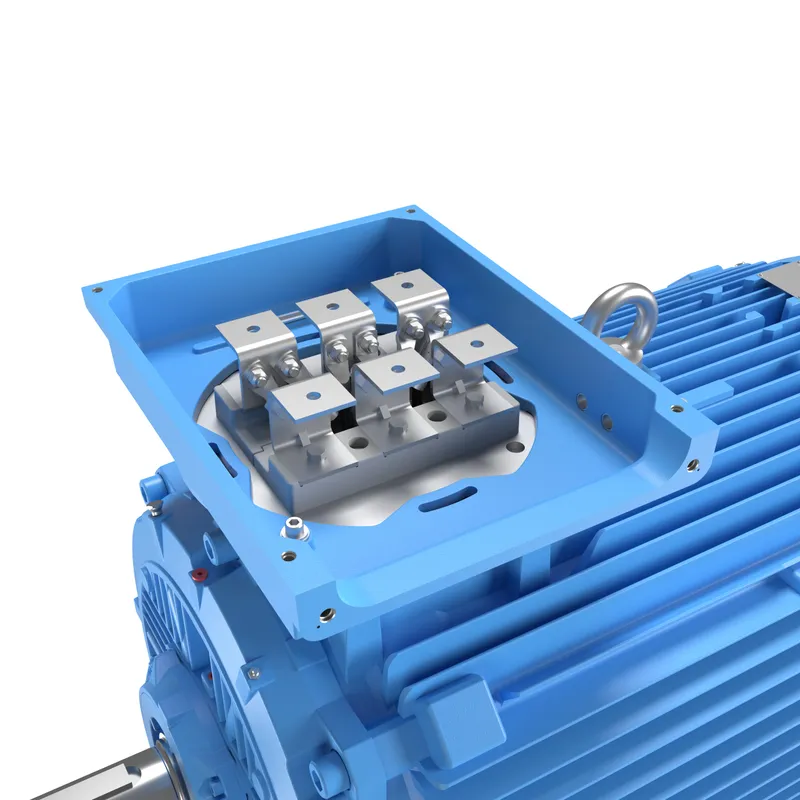

Terminator Box Location	Top

Dimensions

Product Net Weight	2530 kg kg
Gross Weight	2560 kg kg

Environmental

WEEE Category

4. Large Equipment (Any External Dimension More Than 50 cm) cm

External Classifications and Standards

UNSPSC

26101100
