ABB

ABB 3GKP319221-ADG

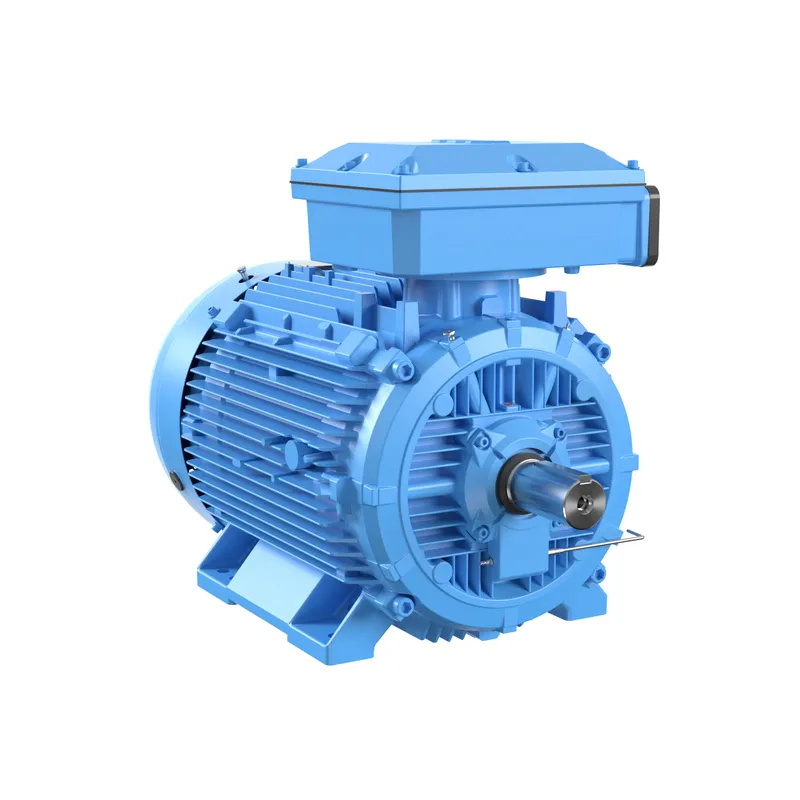

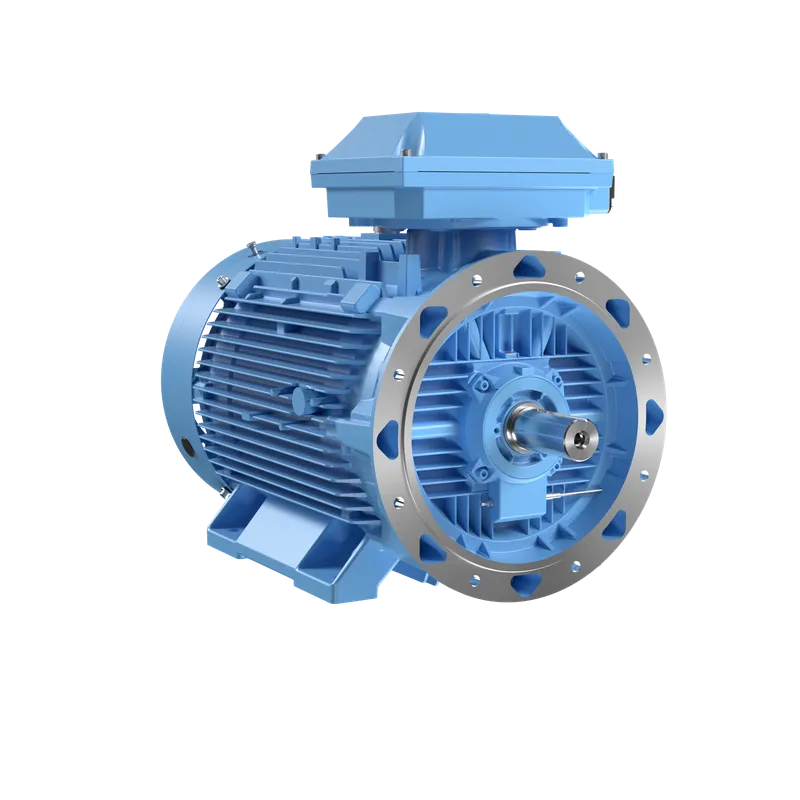

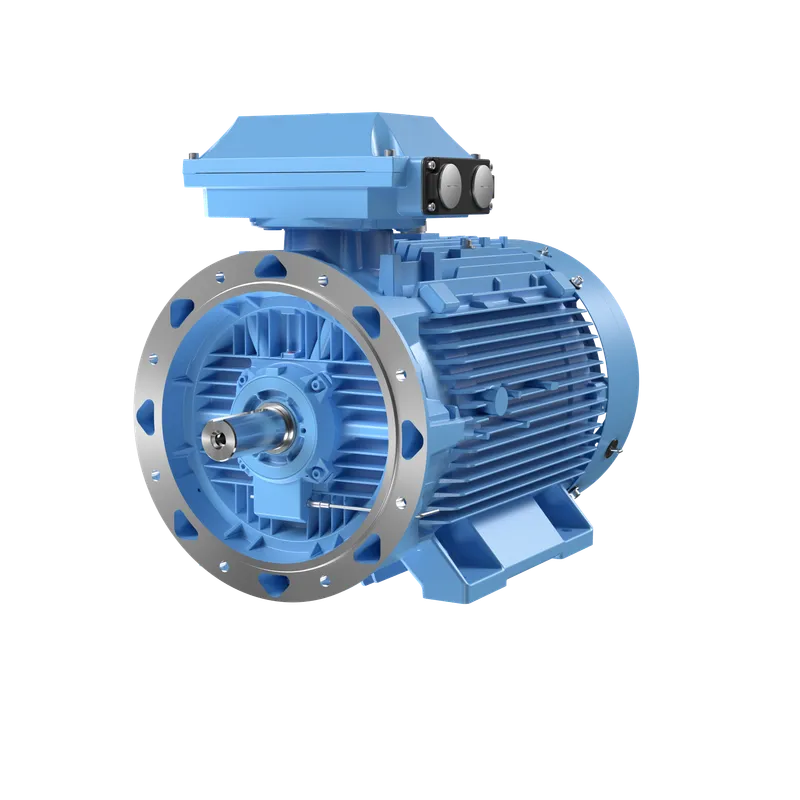

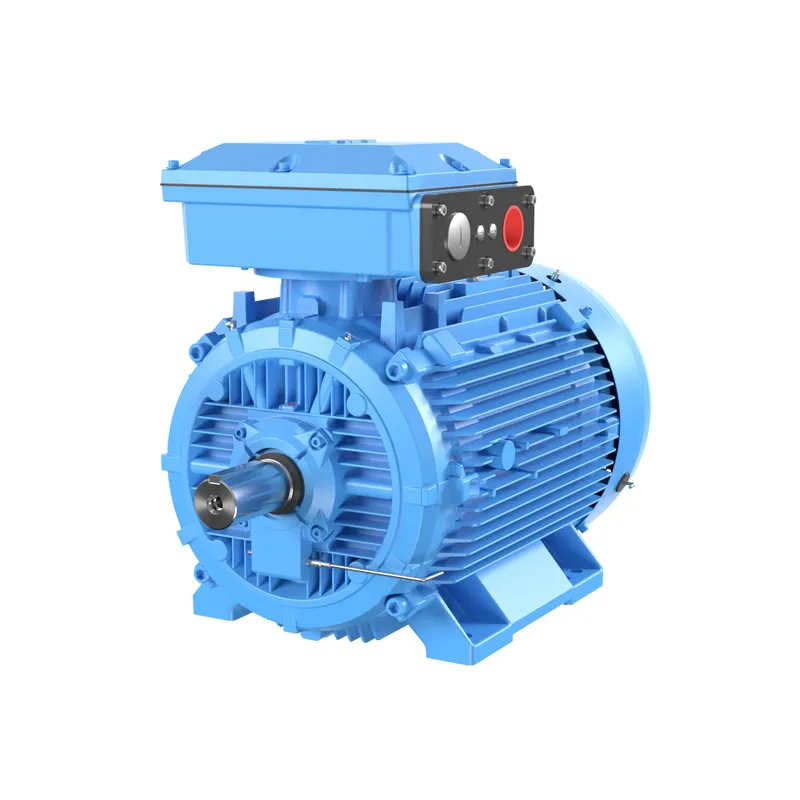

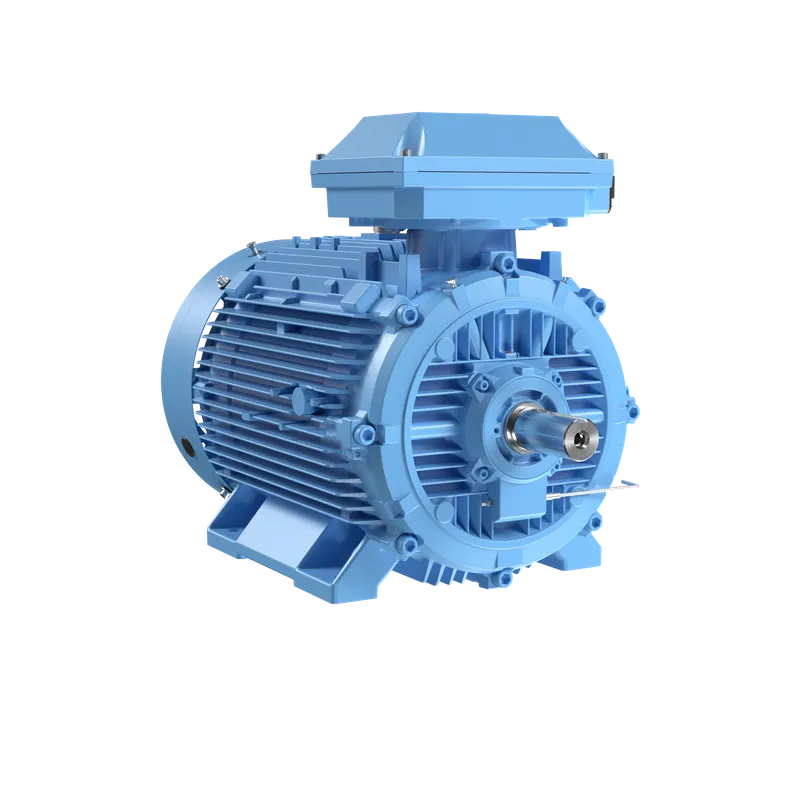

M3KP 315SMB 2/4

MPN: 3GKP319221-ADG
Category: Flameproof IEC Low voltage motors

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare ABB parts? We buy surplus →

What is the ABB 3GKP319221-ADG?

Flameproof IE2 High Efficiency Motors, 100 kW, (3GKP319221-ADG)

Specifications

Ordering

ABB Type Designation	M3KP 315SMB 2/4
Invoice Description	M3KP 315SMB 2/4
Product Name	3-Phase squirrel cage motor
Product Type	3KP2__M3KP_IE2_Flameproof_Ex_db_eb_motor
Country or Territory of Origin	Finland
Customs Tariff Number	85015230

Electrical

Temperature Class Default	T4
Output Power	100 kW kW
Altitude	1000 m m
Ambient Temperature	40 °C
IC Class	IC411
IP Class	IP55
Insulation Class	ICLF
Number of Poles (High)	2
Two Speed Motor	Yes
Type of Duty	S1
Voltage Code	D
EX-Protection	Exdbeb
Gas Group	IIB

Mechanical

Frame Material	Cast Iron
Frame Size	315
Bearing	6316/C3
Bearing NDE	6316/C3
IM Class	IMB3 IM1001

Dimensions

Product Net Weight	960 kg kg
Gross Weight	980 kg kg

Environmental

WEEE Category

4. Large Equipment (Any External Dimension More Than 50 cm) cm

External Classifications and Standards

UNSPSC

26101100

3GKP319221-ADG: frequently asked questions

When can 3GKP319221-ADG be shipped?

3GKP319221-ADG is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 3GKP319221-ADG in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 3GKP319221-ADG and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 3GKP319221-ADG, subject to availability and destination.
