ABB 3GKP313240-BFL

M3KP 315SMD 6

MPN: 3GKP313240-BFL
Category: Flameproof IEC Low voltage motors

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare ABB parts? We buy surplus →

What is the ABB 3GKP313240-BFL?

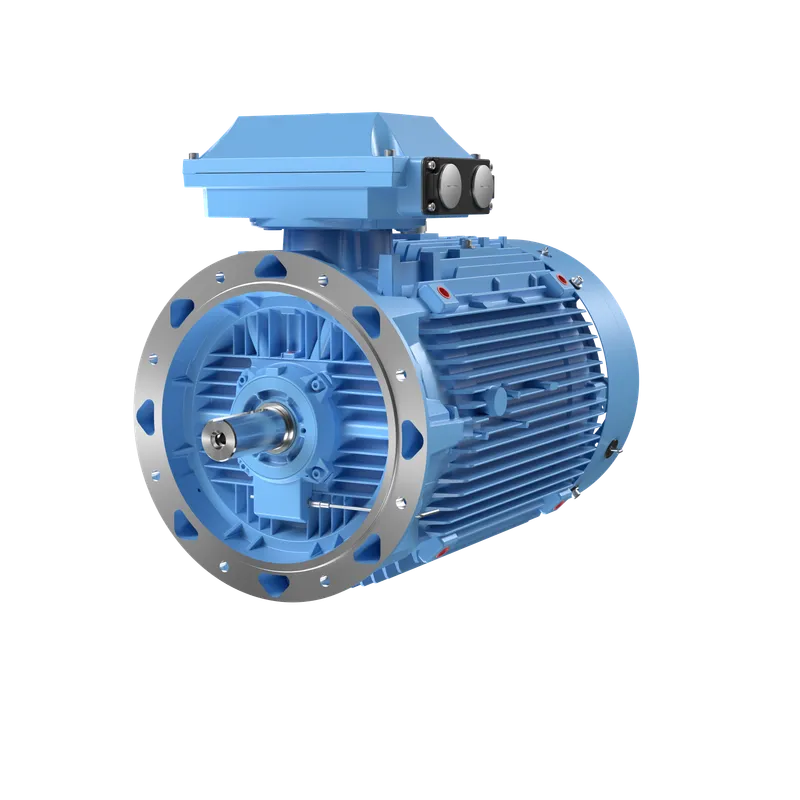

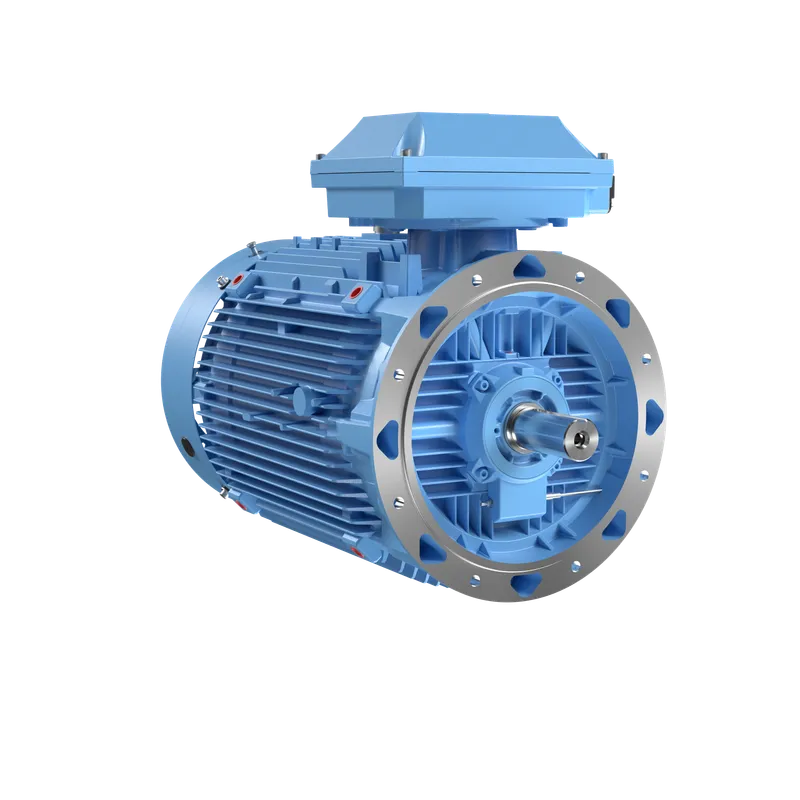

Flameproof IE3 Premium Efficiency Motors, 110 kW, 500 V (3GKP313240-BFL)

Specifications

Ordering

ABB Type Designation	M3KP 315SMD 6
Invoice Description	M3KP 315SMD 6
Product Name	3-Phase squirrel cage motor
Product Type	5KP3__M3KP_IE3_Flameproof_Exde_motor
Country or Territory of Origin	Finland
Customs Tariff Number	85015381
Medium Description	110kW, 6 Poles, Frame Size 315, 3 Phases, 500V, 50Hz, IP55 Enclosure, IMB5/IM3001 Mounting (3GKP313240-BFL)
Short Description	110kW, 6P, Frame Size 315, 3PH, 500V, 50Hz, IP55, IMB5/IM3001

Electrical

Connection Configuration	Y
Temperature Class Default	T4
Input Voltage (Uin)	500 V V
Frequency (f)	50 Hz Hz
Output Power	110 kW kW
Altitude	1000 m m
Ambient Temperature	40 °C
IC Class	IC411
IE Class Data (50 Hz)	IE Class IE3, Full Load (100%) 95.1 %, Partial Load (75%) 95.3 %, Partial Load (50%) 95.0 %
IP Class	IP55
Insulation Class	ICLF
Direction of Rotation	Both sides
Number of Poles (High)	6
Two Speed Motor	No
Type of Duty	S1
Voltage Code	F
EX-Protection	Exdbeb
Gas Group	IIB

Mechanical

Frame Material	Cast Iron
Frame Size	315
Bearing	6319/C3
Bearing NDE	6316/C3
IM Class	IMB5 IM3001
Terminator Box Location	D-End top

Dimensions

Product Net Depth / Length	1204 mm mm
Product Net Height	858 mm mm
Product Net Width	590 mm mm
Product Net Weight	1054 kg kg
Gross Weight	1074 kg kg

Environmental

WEEE Category

4. Large Equipment (Any External Dimension More Than 50 cm) cm

External Classifications and Standards

UNSPSC

26101100
