ABB 3GKP133280-CFK

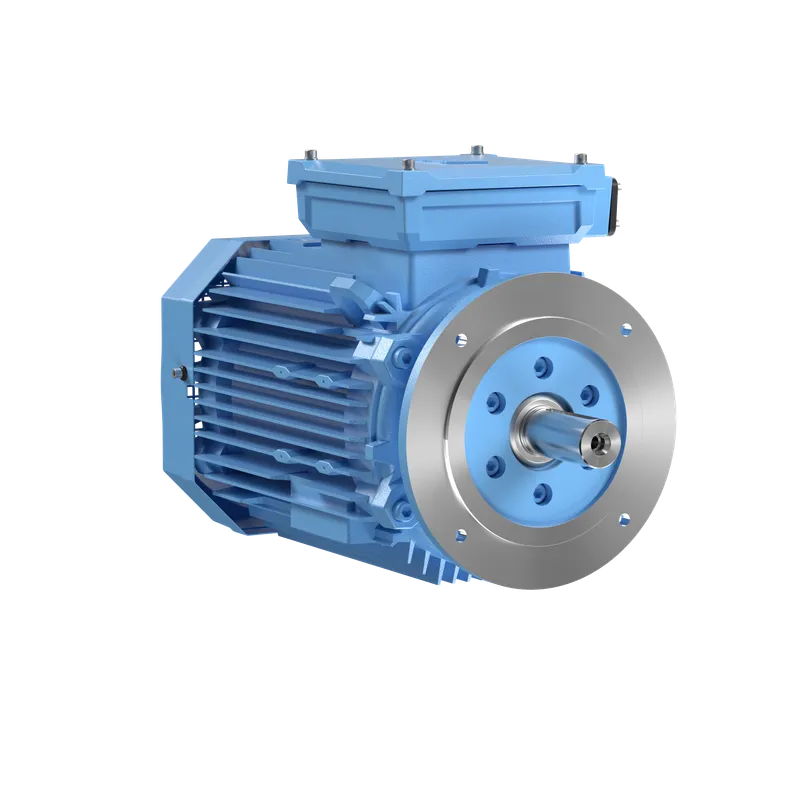

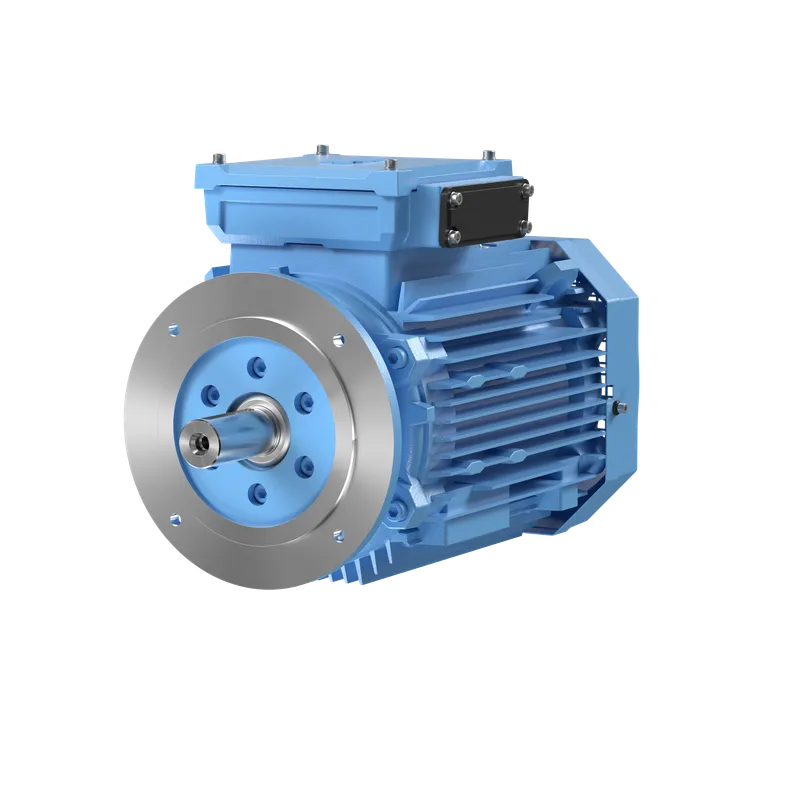

M3KP 132SMH 6

MPN: 3GKP133280-CFK
Category: Flameproof IEC Low voltage motors

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare ABB parts? We buy surplus →

What is the ABB 3GKP133280-CFK?

Flameproof IE3 Premium Efficiency Motors, 5.5 kW, 500 V (3GKP133280-CFK)

Specifications

Ordering

ABB Type Designation	M3KP 132SMH 6
Invoice Description	M3KP 132SMH 6
Product Name	3-Phase squirrel cage motor
Product Type	3KP3__M3KP_IE3_Flameproof_Ex_db_eb_motor
Country or Territory of Origin	Finland
Customs Tariff Number	85015220
Medium Description	5.5kW, 6 Poles, Frame Size 132, 3 Phases, 500V, 50Hz, IP55 Enclosure, IMB14/IM3601 Mounting (3GKP133280-CFK)
Short Description	5.5kW, 6P, Frame Size 132, 3PH, 500V, 50Hz, IP55, IMB14/IM3601

Electrical

Connection Configuration	Y
Temperature Class Default	T4
Input Voltage (Uin)	500 V V
Frequency (f)	50 Hz Hz
Output Power	5.5 kW kW
Altitude	1000 m m
Ambient Temperature	40 °C
IC Class	IC411
IE Class Data (50 Hz)	IE Class IE3, Full Load (100%) 88.0 %, Partial Load (75%) 88.9 %, Partial Load (50%) 88.7 %
IE Class Data (60 Hz)	IE Class IE3, Full Load (100%) 91.0 %, Partial Load (75%) 91.2 %, Partial Load (50%) 90.3 %
IP Class	IP55
Insulation Class	ICLF
Direction of Rotation	Both sides
Number of Poles (High)	6
Two Speed Motor	No
Type of Duty	S1
Voltage Code	F
EX-Protection	Exdbeb
Gas Group	IIB

Mechanical

Frame Material	Cast Iron
Frame Size	132
Bearing	6208-2Z/C3
Bearing NDE	6208-2Z/C3
IM Class	IMB14 IM3601
Terminator Box Location	D-End top

Dimensions

Product Net Depth / Length	576 mm mm
Product Net Height	346 mm mm
Product Net Width	294 mm mm
Product Net Weight	109 kg kg
Gross Weight	114 kg kg

Environmental

WEEE Category

5. Small Equipment (No External Dimension More Than 50 cm) cm

External Classifications and Standards

UNSPSC

26101100
