ABB

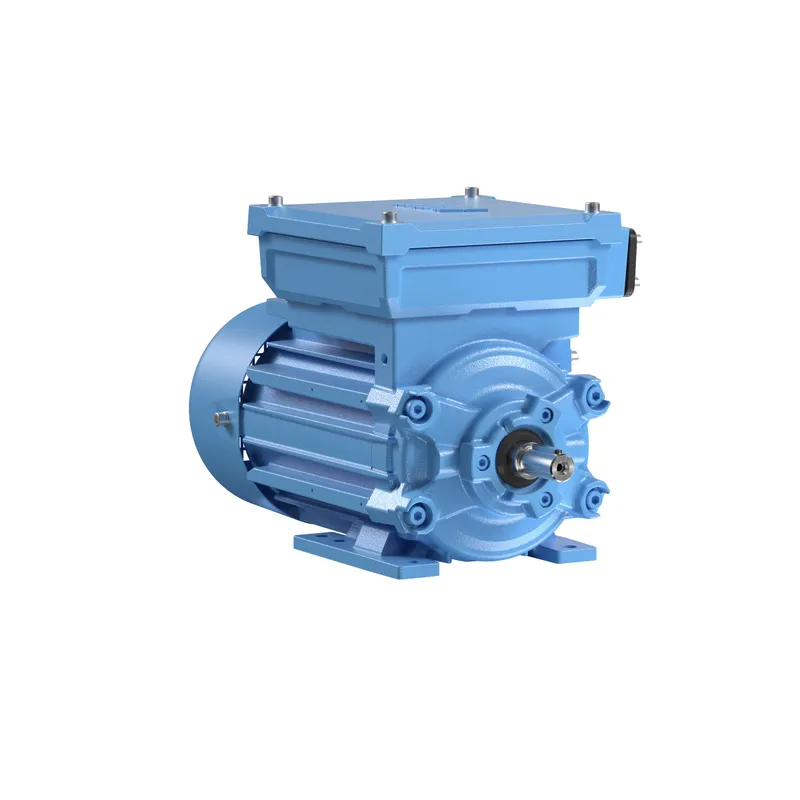

ABB 3GKP093050-BDJ

M3KP 90SLE 6

MPN: 3GKP093050-BDJ
Category: Flameproof IEC Low voltage motors

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare ABB parts? We buy surplus →

What is the ABB 3GKP093050-BDJ?

(3GKP093050-BDJ)

Specifications

Ordering

ABB Type Designation	M3KP 90SLE 6
Invoice Description	M3KP 90SLE 6
Product Name	3-Phase squirrel cage motor
Product Type	3KP0__M3KP_IE2_Flameproof_Exde_motor
Country or Territory of Origin	Finland
Customs Tariff Number	85015220
Replaced Product ID (OLD)	3GKP093030-BDH
Medium Description	?kW, 6P, Frame Size 90, 3 Phases, 400V, ?Hz, IP55 Enclosure, IMB5/IM3001 Mounting (3GKP093050-BDJ) kW
Short Description	?kW, 6P, Frame Size 90, 3PH, 400V, ?Hz, IP55, IMB5/IM3001 kW

Electrical

Temperature Class Default	T4
Altitude	1000 m m
Ambient Temperature	40 °C
IC Class	IC411
IE Class Data (50 Hz)	IE Class IE2, Full Load (100%) 78.1 %, Partial Load (75%) 78.6 %, Partial Load (50%) 76.5 %
IE Class Data (60 Hz)	IE Class IE1, Full Load (100%) 75.0 %, Partial Load (75%) 74.8 %, Partial Load (50%) 72.0 %
IP Class	IP55
Insulation Class	ICLF
Direction of Rotation	Both sides
Number of Poles (High)	6
Two Speed Motor	No
Type of Duty	S1
Voltage Code	D
EX-Protection	Exdbeb
Gas Group	IIB

Mechanical

Frame Material	Cast Iron
Frame Size	90
Bearing	6205-2Z/C3
Bearing NDE	6204-2Z/C3
IM Class	IMB5 IM3001
Terminator Box Location	D-End top

Dimensions

Product Net Weight	49 kg kg
Gross Weight	52 kg kg

Environmental

WEEE Category

5. Small Equipment (No External Dimension More Than 50 cm) cm

External Classifications and Standards

UNSPSC

26101100
