What is the ABB 3GKP084320-CDH?

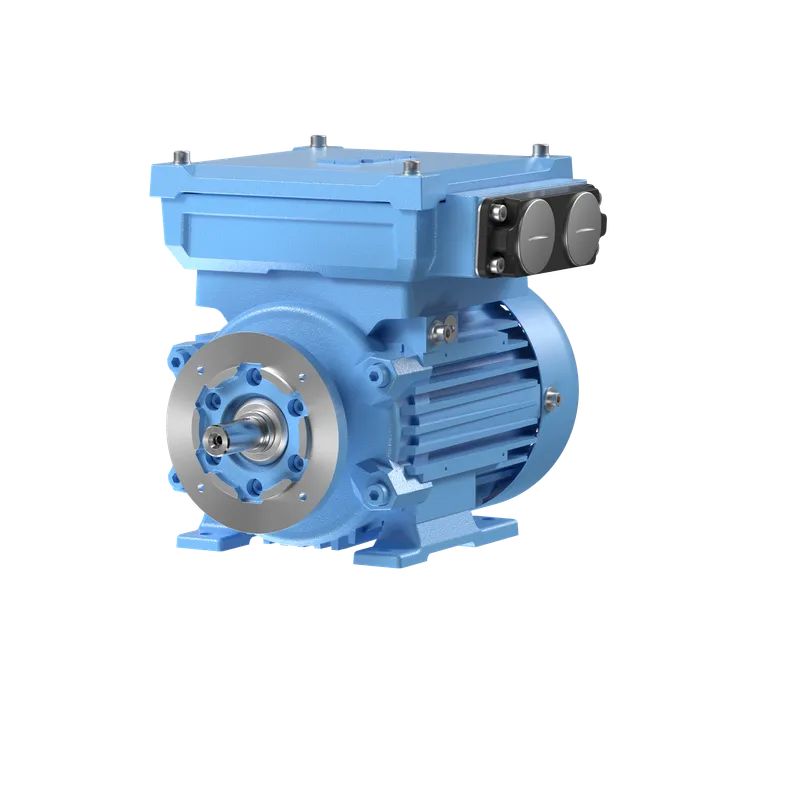

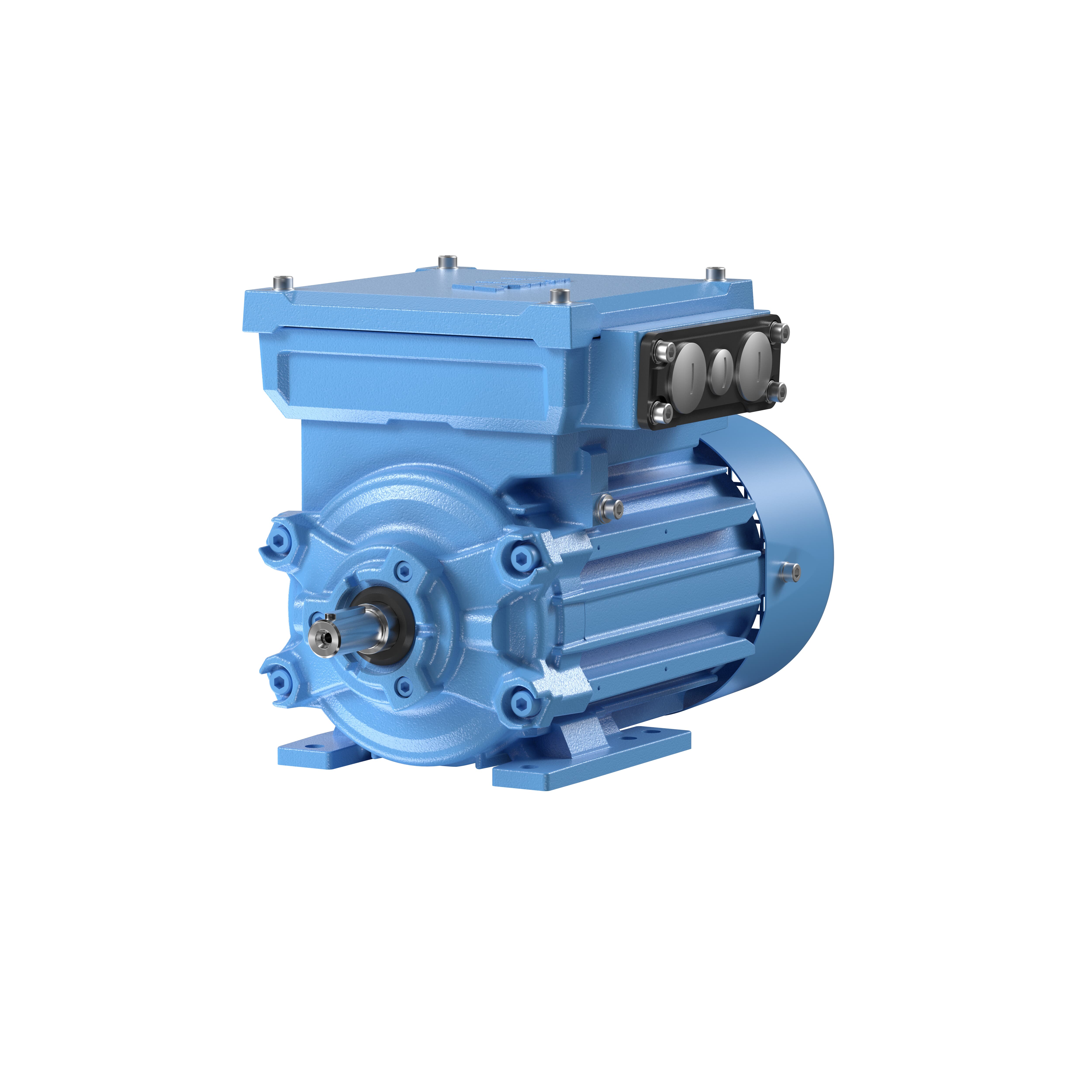

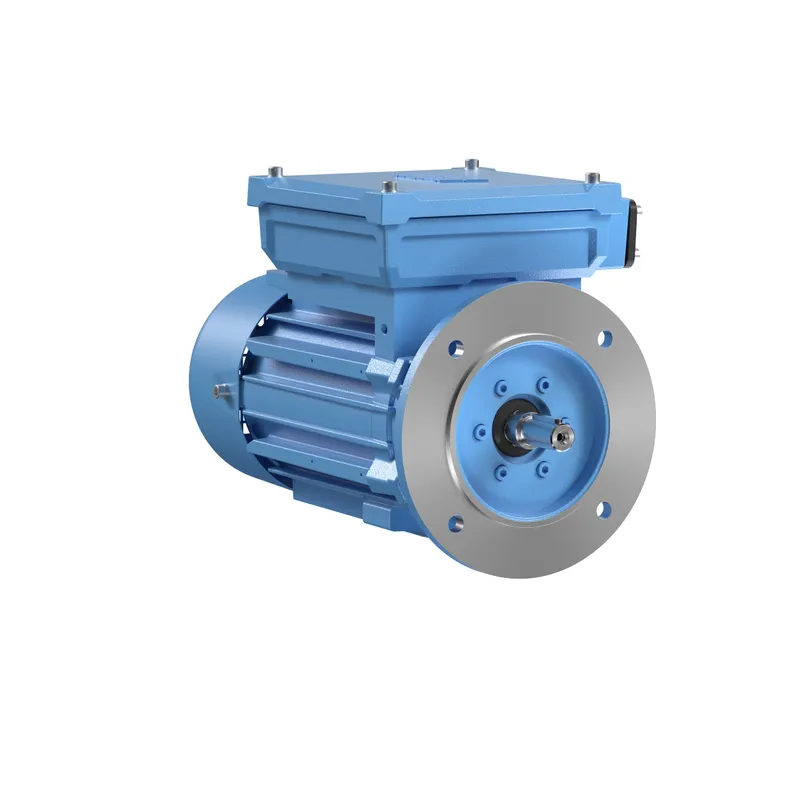

M3KP 80MB 8

Specifications

Ordering

ABB Type Designation	M3KP 80MB 8
Invoice Description	M3KP 80MB 8
Product Name	3-Phase squirrel cage motor
Product Type	3KP2__M3KP_IE2_Flameproof_Ex_db_eb_motor
Country or Territory of Origin	Finland
Customs Tariff Number	85015100
Replaced Product ID (OLD)	3GKP084320-CDG

Electrical

Temperature Class Default	T4
Altitude	1000 m m
Ambient Temperature	40 °C
IC Class	IC411
IE Class Data (50 Hz)	IE Class IE2, Full Load (100%) 50.6 %, Partial Load (75%) 45.0 %, Partial Load (50%) 35.3 %
IP Class	IP55
Insulation Class	ICLF
Direction of Rotation	Both sides
Number of Poles (High)	8
Two Speed Motor	No
Type of Duty	S1
Voltage Code	D
EX-Protection	Exde
Gas Group	IIB

Mechanical

Frame Material	Cast Iron
Frame Size	80
Bearing	6205-2Z/C3
Bearing NDE	6204-2Z/C3
IM Class	IMB14 IM3601
Terminator Box Location	Top

Dimensions

Product Net Weight	29 kg kg
Gross Weight	32 kg kg

Environmental

WEEE Category

5. Small Equipment (No External Dimension More Than 50 cm) cm

External Classifications and Standards

UNSPSC

26101100
