ABB 3GJP354220-BDL

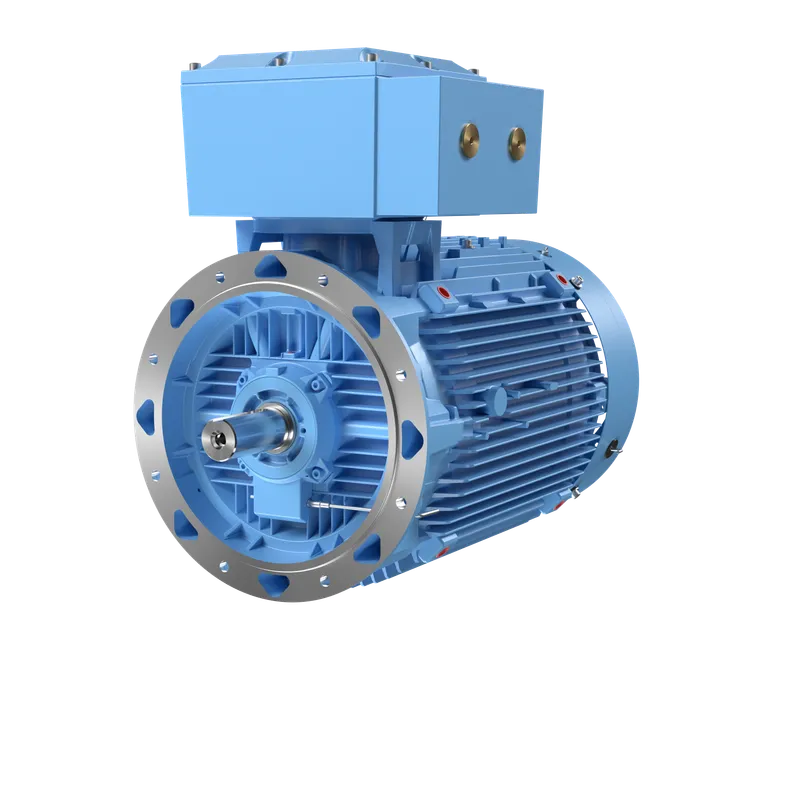

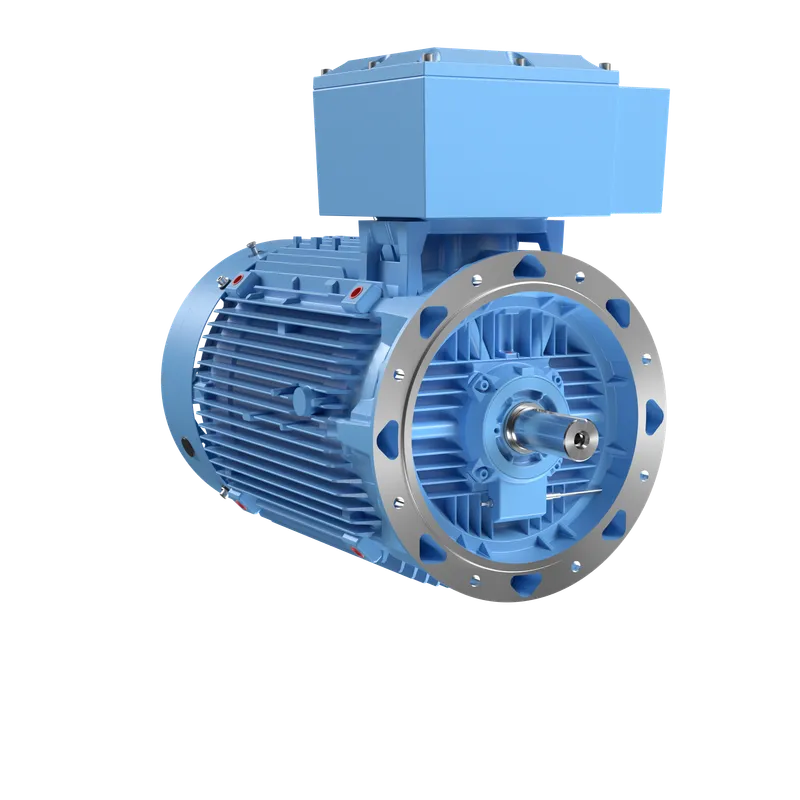

M3JP 355SMB 8

MPN: 3GJP354220-BDL
Category: Flameproof IEC Low voltage motors

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare ABB parts? We buy surplus →

What is the ABB 3GJP354220-BDL?

Flameproof IE3 Premium Efficiency Motors, 160 kW, 400 V (3GJP354220-BDL)

Specifications

Ordering

ABB Type Designation	M3JP 355SMB 8
Invoice Description	M3JP 355SMB 8
Product Name	3-Phase squirrel cage motor
Product Type	5JP3__M3JP_IE3_Flameproof_Exd_motor
Country or Territory of Origin	Finland
Customs Tariff Number	85015381
Medium Description	160kW, 8 Poles, Frame Size 355, 3 Phases, 400V, 50Hz, IP55 Enclosure, IMB5/IM3001 Mounting (3GJP354220-BDL)
Short Description	160kW, 8P, Frame Size 355, 3PH, 400V, 50Hz, IP55, IMB5/IM3001

Electrical

Connection Configuration	D
Temperature Class Default	T4
Input Voltage (Uin)	400 V V
Frequency (f)	50 Hz Hz
Output Power	160 kW kW
Altitude	1000 m m
Ambient Temperature	40 °C
IC Class	IC411
IE Class Data (50 Hz)	IE Class IE3, Full Load (100%) 94.3 %, Partial Load (75%) 94.3 %, Partial Load (50%) 93.3 %
IP Class	IP55
Insulation Class	ICLF
Direction of Rotation	Both sides
Number of Poles (High)	8
Two Speed Motor	No
Type of Duty	S1
Voltage Code	D
EX-Protection	Exdb
Gas Group	IIB

Mechanical

Frame Material	Cast Iron
Frame Size	355
Bearing	6322/C3
Bearing NDE	6316/C3
IM Class	IMB5 IM3001
Terminator Box Location	Top

Dimensions

Product Net Depth / Length	1479 mm mm
Product Net Height	1032 mm mm
Product Net Width	700 mm mm
Product Net Weight	1804 kg kg
Gross Weight	1834 kg kg

Environmental

WEEE Category	4. Large Equipment (Any External Dimension More Than 50 cm) cm
SCIP	297e96db-dbee-43c1-ad2d-ddd583080bb8 Finland

External Classifications and Standards

UNSPSC

26101100
