ABB 3GJP225220-BEG

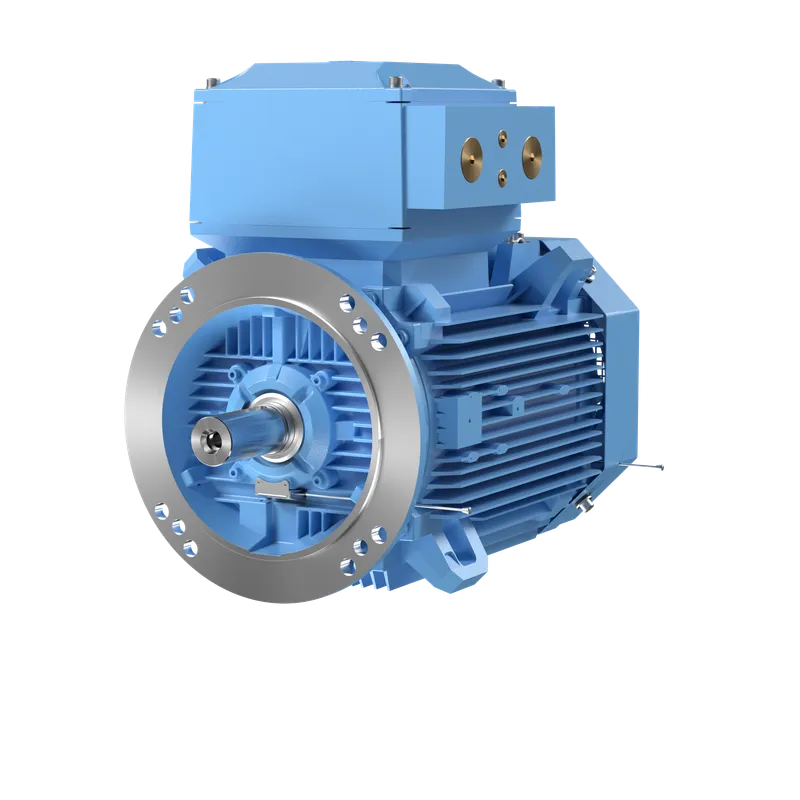

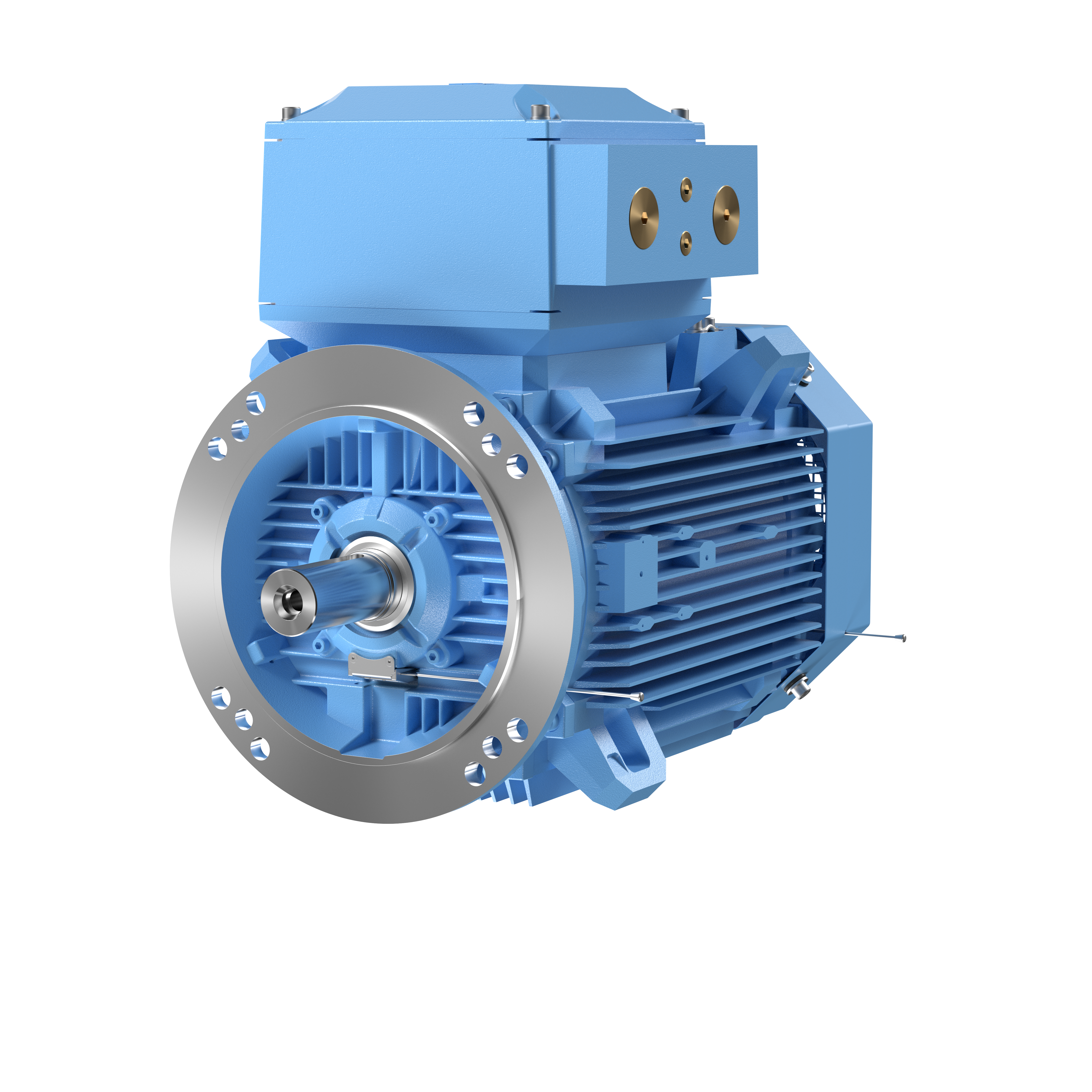

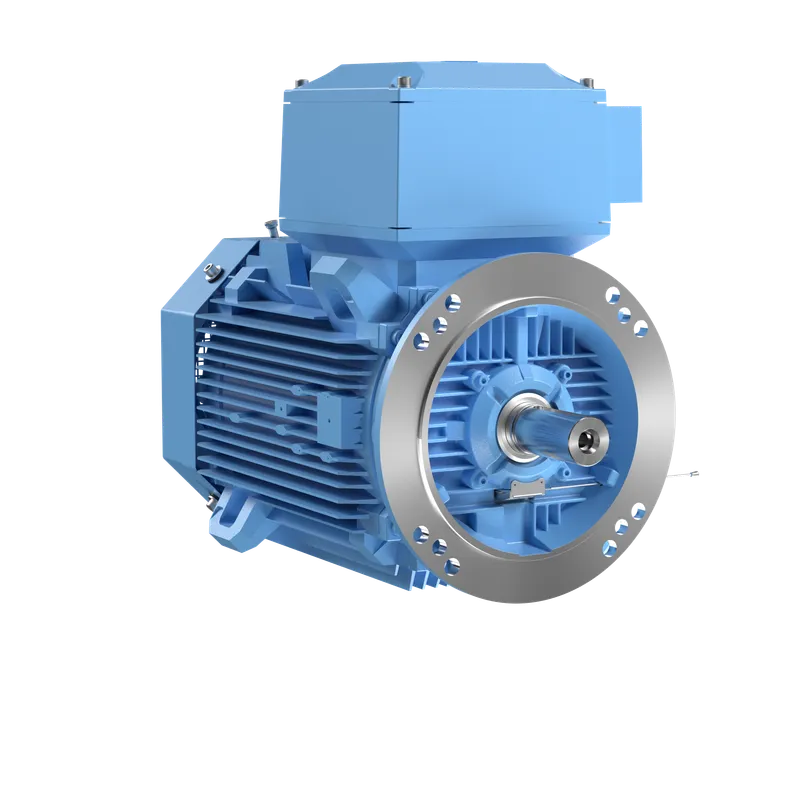

M3JP 225SMB 10

MPN: 3GJP225220-BEG
Category: Flameproof IEC Low voltage motors

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare ABB parts? We buy surplus →

What is the ABB 3GJP225220-BEG?

Flameproof IE2 High Efficiency Motors, 18.5 kW, 500 V (3GJP225220-BEG)

Specifications

Ordering

ABB Type Designation	M3JP 225SMB 10
Invoice Description	M3JP 225SMB 10
Product Name	3-Phase squirrel cage motor
Product Type	3JP2__M3JP_IE2_Flameproof_Ex_db_motor
Country or Territory of Origin	Finland
Customs Tariff Number	85015230
Medium Description	18.5kW, 10 Poles, Frame Size 225, 3 Phases, 500V, 50Hz, IP55 Enclosure, IMB5/IM3001 Mounting (3GJP225220-BEG)
Short Description	18.5kW, 10P, Frame Size 225, 3PH, 500V, 50Hz, IP55, IMB5/IM3001

Electrical

Connection Configuration	D
Temperature Class Default	T4
Input Voltage (Uin)	500 V V
Frequency (f)	50 Hz Hz
Output Power	18.5 kW kW
Altitude	1000 m m
Ambient Temperature	40 °C
IC Class	IC411
IE Class Data (50 Hz)	IE Class NA, Full Load (100%) 89.2 %, Partial Load (75%) 89.1 %, Partial Load (50%) 87.4 %
IP Class	IP55
Insulation Class	ICLF
Direction of Rotation	Both sides
Number of Poles (High)	10
Two Speed Motor	No
Type of Duty	S1
Voltage Code	E
EX-Protection	Exdb
Gas Group	IIB

Mechanical

Frame Material	Cast Iron
Frame Size	225
Bearing	6313/C3
Bearing NDE	6312/C3
IM Class	IMB5 IM3001
Terminator Box Location	Top

Dimensions

Product Net Depth / Length	796 mm mm
Product Net Height	663 mm mm
Product Net Width	432 mm mm
Product Net Weight	385 kg kg
Gross Weight	395 kg kg

Environmental

WEEE Category	4. Large Equipment (Any External Dimension More Than 50 cm) cm
SCIP	297e96db-dbee-43c1-ad2d-ddd583080bb8 Finland

External Classifications and Standards

UNSPSC

26101100
