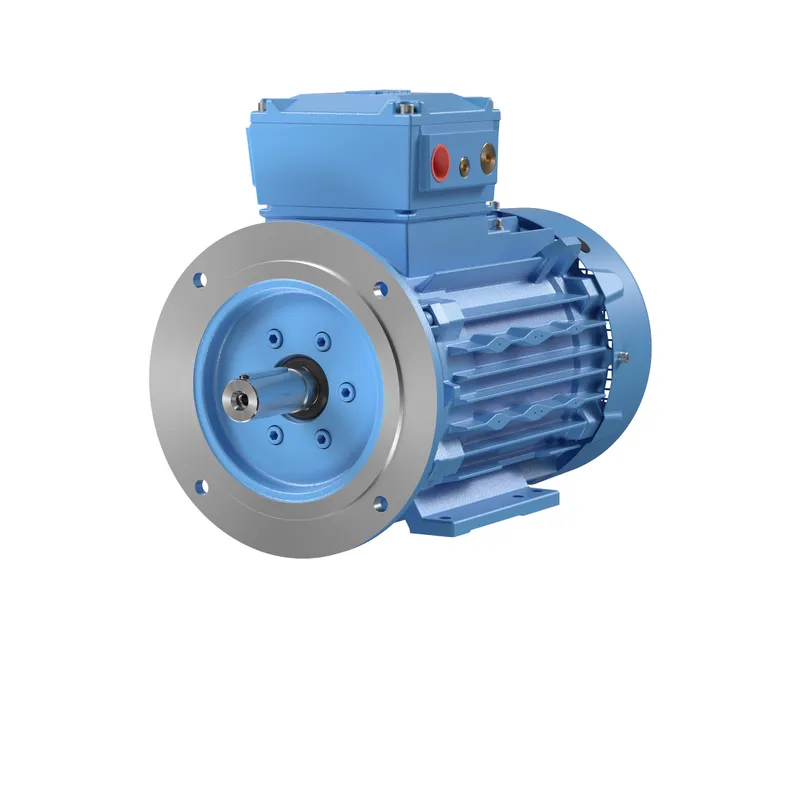

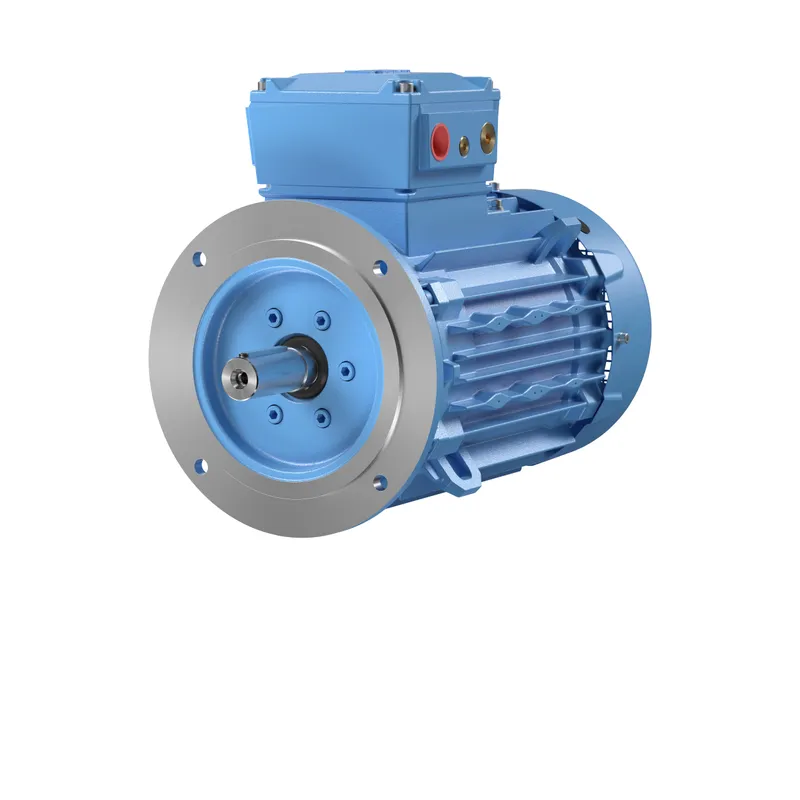

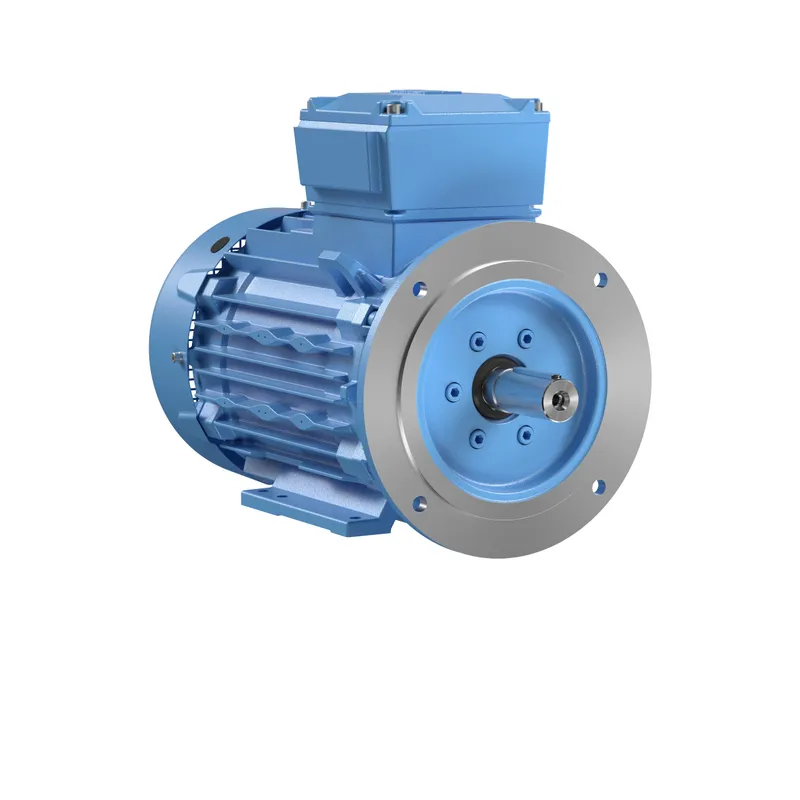

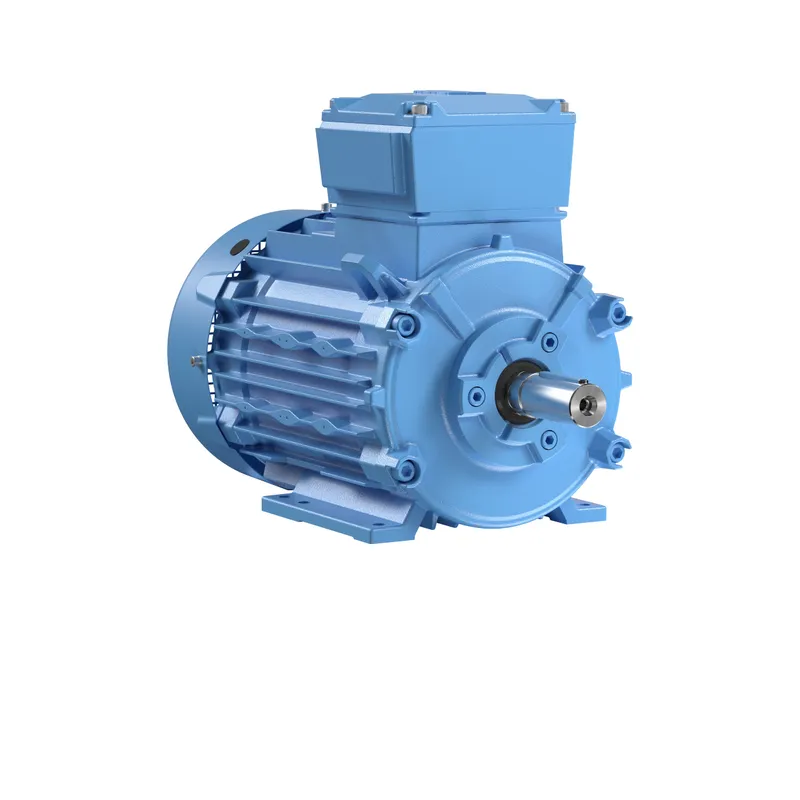

ABB 3GJP133230-BDL

M3JP 132SMC 6

MPN: 3GJP133230-BDL

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare ABB parts? We buy surplus →

What is the ABB 3GJP133230-BDL?

(3GJP133230-BDL)

Specifications

Ordering

ABB Type Designation	M3JP 132SMC 6
Invoice Description	M3JP 132SMC 6
Product Name	3-Phase squirrel cage motor
Product Type	5JP3__M3JP_IE3_Flameproof_Exd_motor
Country or Territory of Origin	Finland
Customs Tariff Number	85015220

Electrical

Temperature Class Default	T4
Altitude	1000 m m
Ambient Temperature	40 °C
IC Class	IC411
IE Class Data (50 Hz)	IE Class IE3, Full Load (100%) 86.8 %, Partial Load (75%) 86.3 %, Partial Load (50%) 83.9 %
IP Class	IP55
Insulation Class	ICLF
Direction of Rotation	Both sides
Number of Poles (High)	6
Two Speed Motor	No
Voltage Code	D
EX-Protection	Exd
Gas Group	IIB

Mechanical

Frame Material	Cast Iron
Frame Size	132
Bearing	6208-2Z/C3
Bearing NDE	6208-2Z/C3
IM Class	IMB5 IM3001
Terminator Box Location	D-End top

Dimensions

Product Net Weight	107 kg kg
Gross Weight	112 kg kg

Environmental

WEEE Category

5. Small Equipment (No External Dimension More Than 50 cm) cm

External Classifications and Standards

UNSPSC

26101100
