Home / ABB / ABB 3GJP113320-CDL

ABB

ABB 3GJP113320-CDL

MPN: 3GJP113320-CDL

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare ABB parts? We buy surplus →

What is the ABB 3GJP113320-CDL?

(3GJP113320-CDL)

Specifications

Ordering

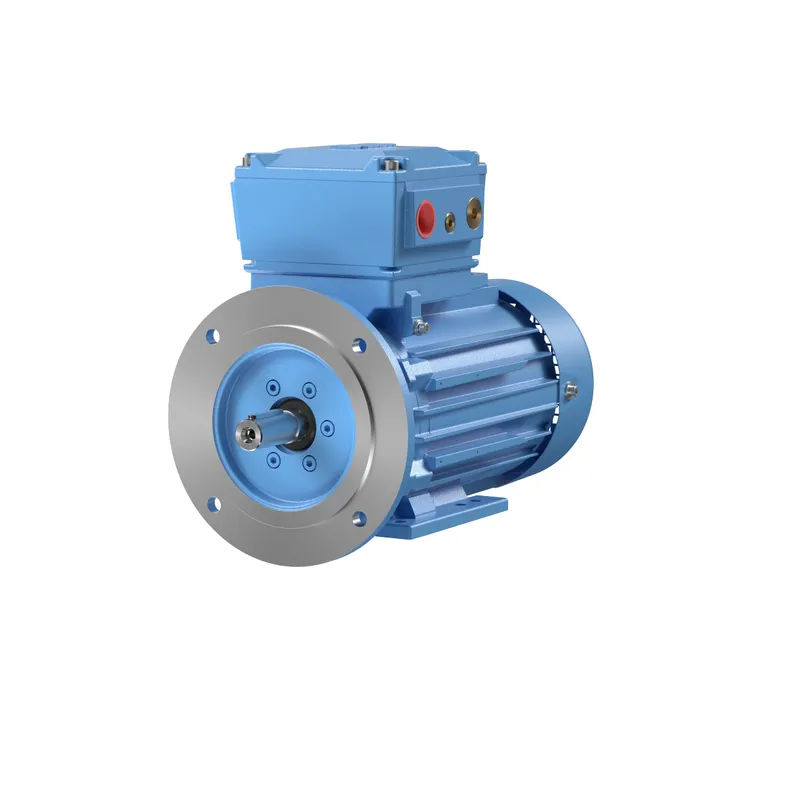

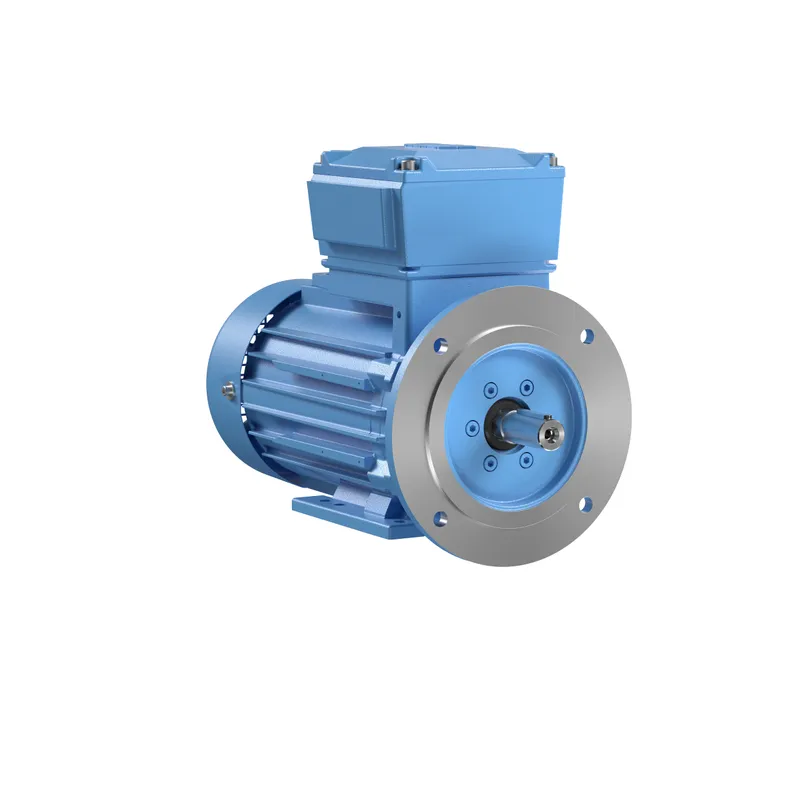

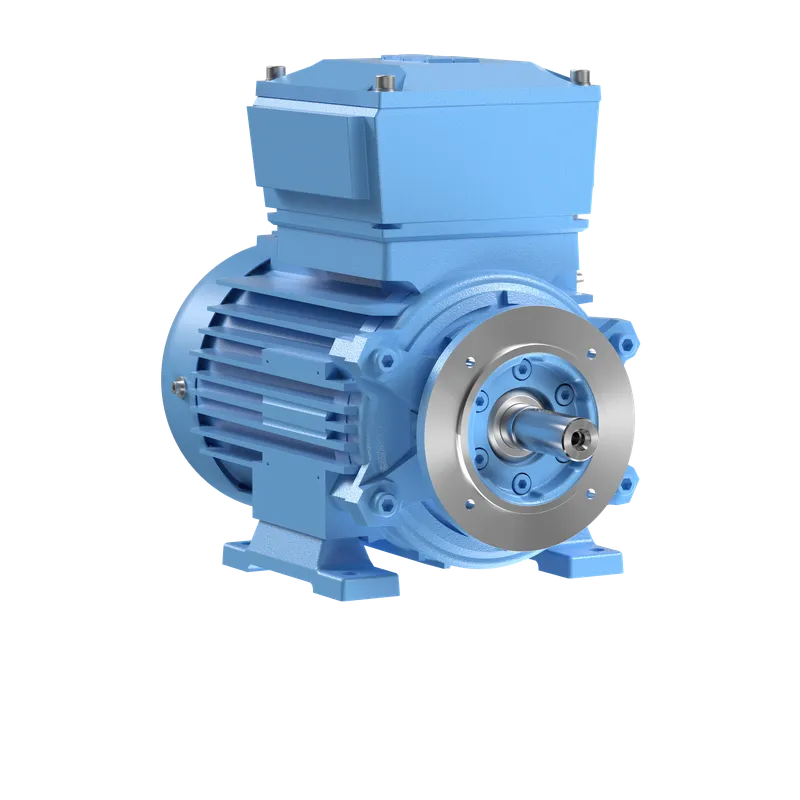

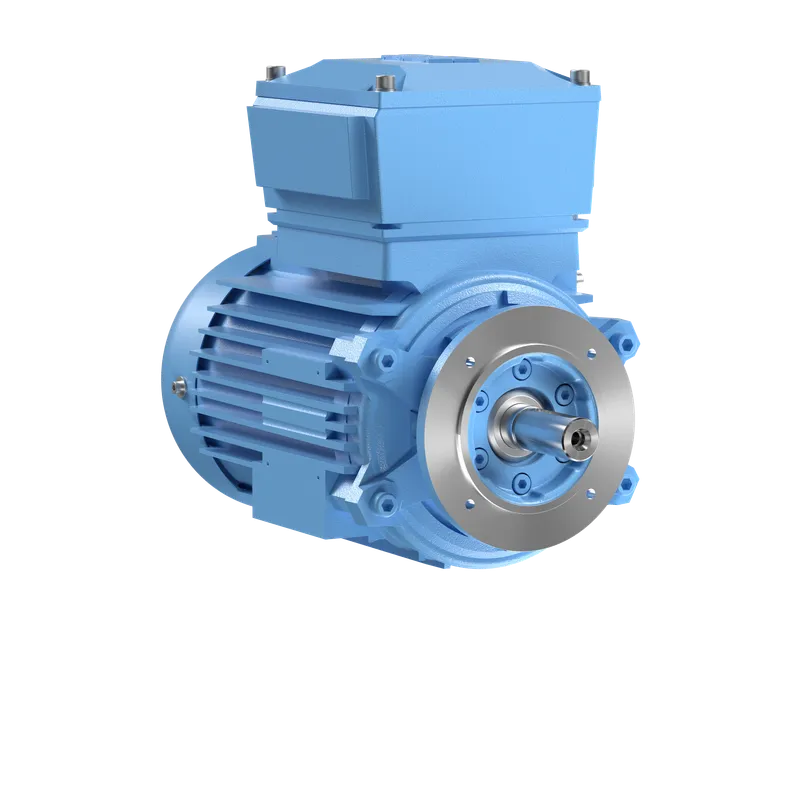

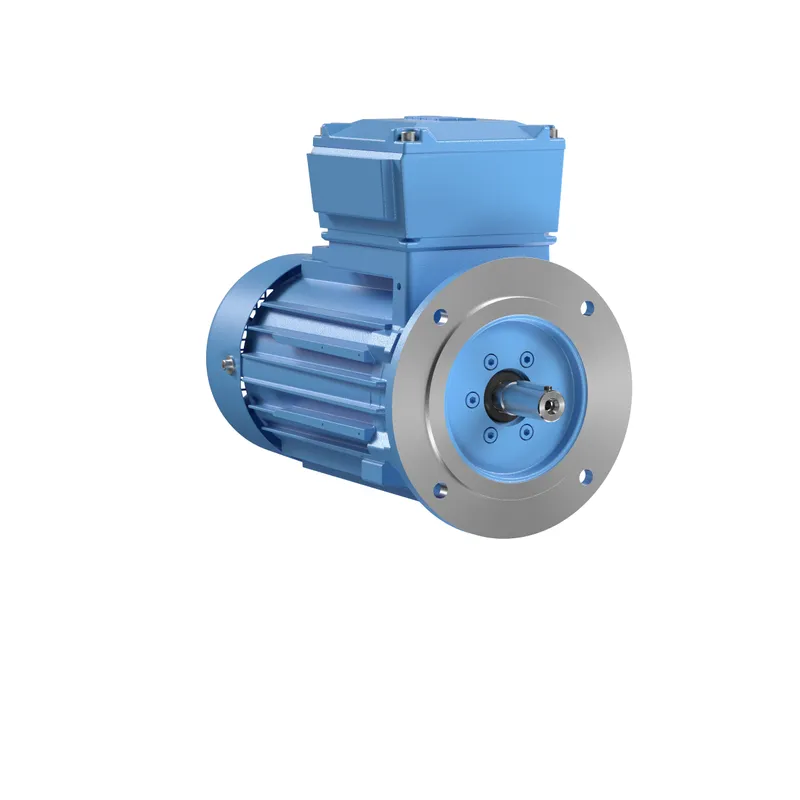

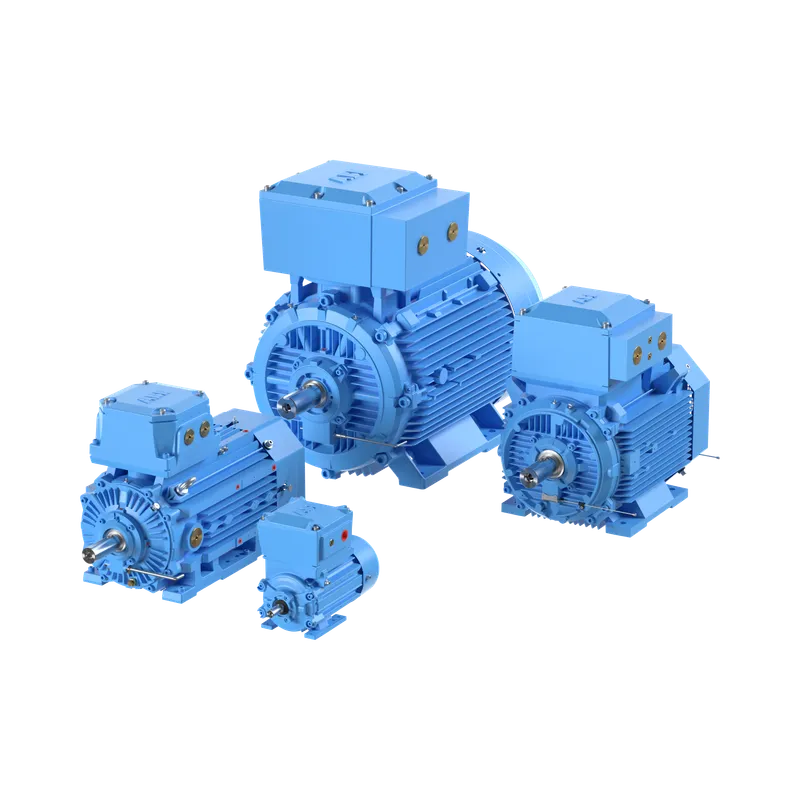

ABB Type Designation	M3JP 112MB 6
Invoice Description	M3JP 112MB 6
Product Name	3-Phase squirrel cage motor
Product Type	5JP3__M3JP_IE3_Flameproof_Exd_motor
Country or Territory of Origin	Finland
Customs Tariff Number	85015220

Electrical

Temperature Class Default	T4
Altitude	1000 m m
Ambient Temperature	40 °C
IC Class	IC411
IE Class Data (50 Hz)	IE Class IE2, Full Load (100%) 81.8 %, Partial Load (75%) 81.0 %, Partial Load (50%) 77.6 %
IP Class	IP55
Insulation Class	ICLF
Direction of Rotation	Both sides
Number of Poles (High)	6
Two Speed Motor	No
Voltage Code	D
EX-Protection	Exd
Gas Group	IIB

Mechanical

Frame Material	Cast Iron
Frame Size	112
Bearing	6206-2Z/C3
Bearing NDE	6206-2Z/C3
IM Class	IMB14 IM3601
Terminator Box Location	D-End top

Dimensions

Product Net Weight	79 kg kg
Gross Weight	84 kg kg

Environmental

WEEE Category

5. Small Equipment (No External Dimension More Than 50 cm) cm

External Classifications and Standards

UNSPSC

26101100

3GJP113320-CDL: frequently asked questions

When can 3GJP113320-CDL be shipped?

3GJP113320-CDL is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 3GJP113320-CDL in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 3GJP113320-CDL and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 3GJP113320-CDL, subject to availability and destination.
