Home / ABB / Flameproof IEC Low voltage motors / ABB 3GJP103500-AEJ

ABB

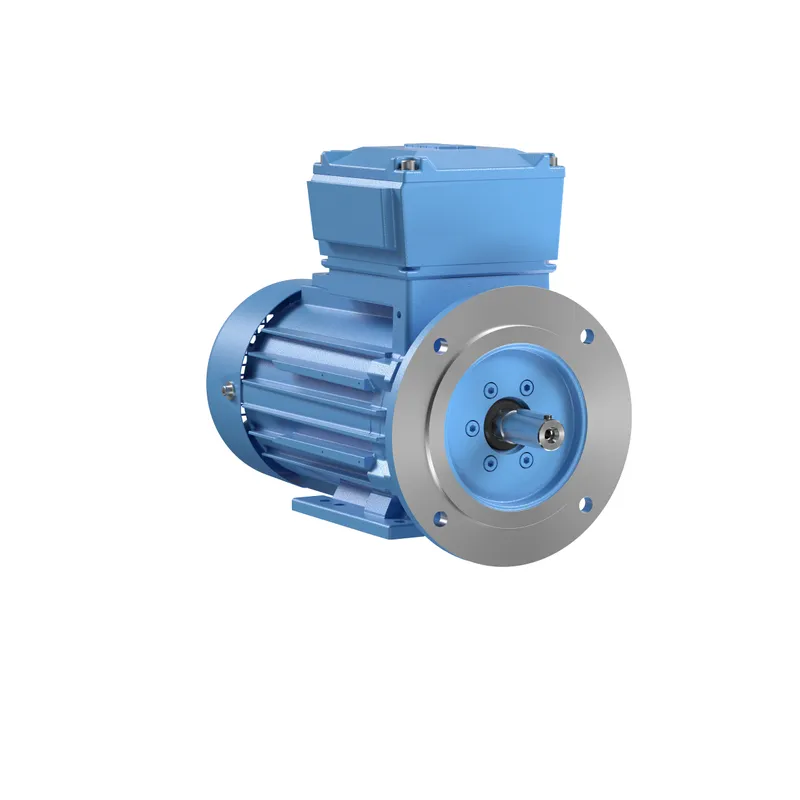

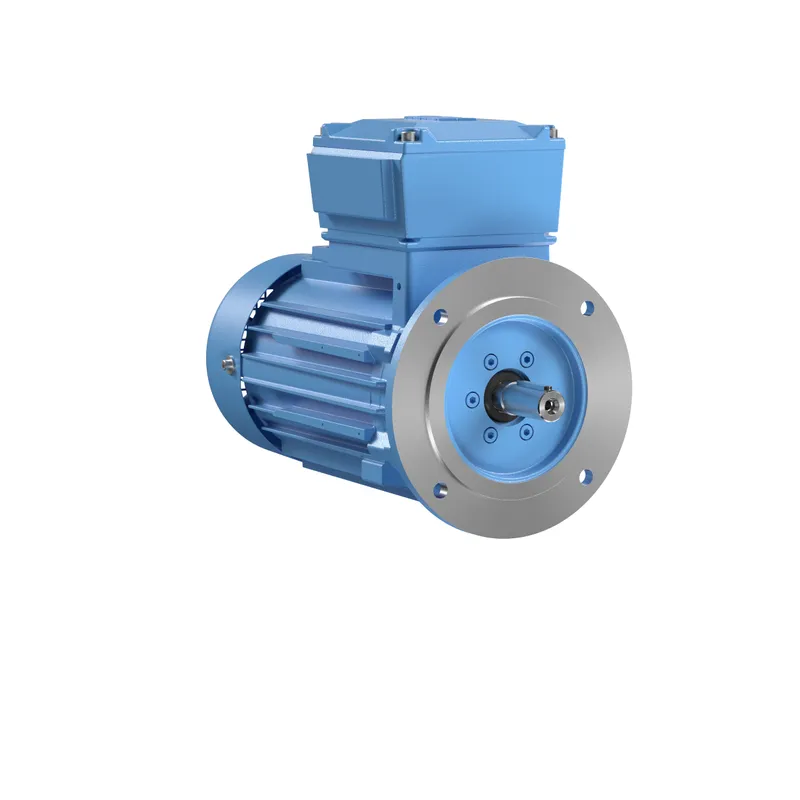

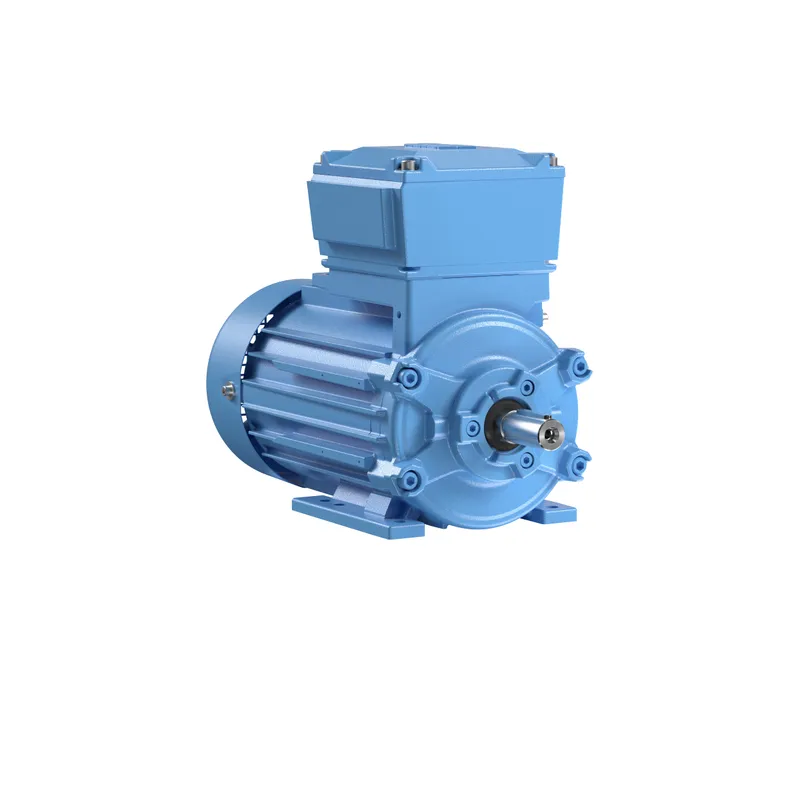

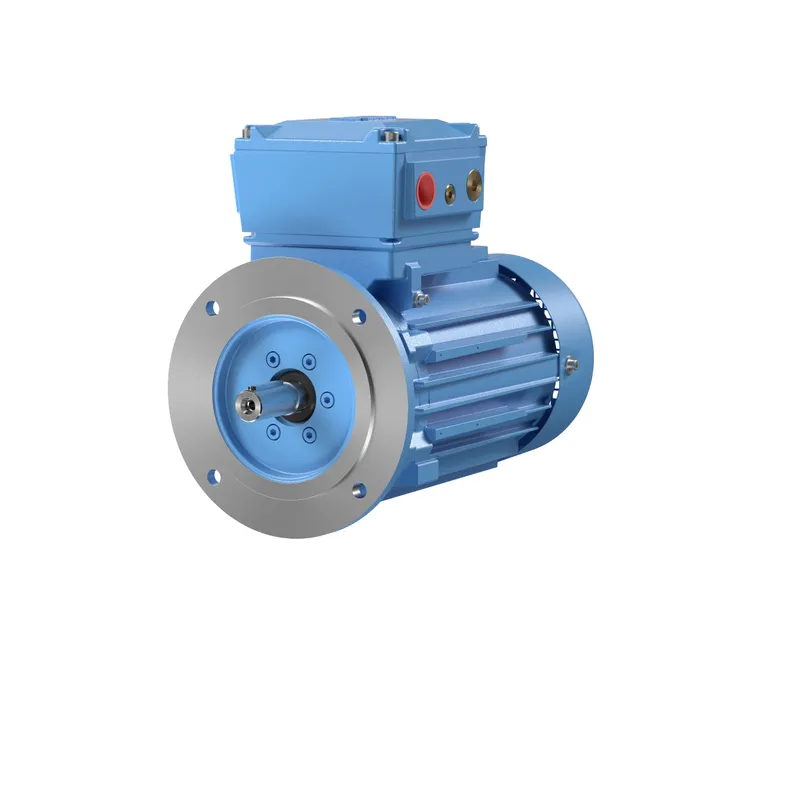

ABB 3GJP103500-AEJ

MPN: 3GJP103500-AEJ
Category: Flameproof IEC Low voltage motors

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare ABB parts? We buy surplus →

What is the ABB 3GJP103500-AEJ?

(3GJP103500-AEJ)

Specifications

Ordering

ABB Type Designation	M3JP 100L 6
Invoice Description	M3JP 100L 6
Product Name	3-Phase squirrel cage motor
Product Type	3JP0__M3JP_IE2_Flameproof_Exd_motor
Country or Territory of Origin	Finland
Customs Tariff Number	85015220
Replaced Product ID (OLD)	3GJP103510-AEH
Medium Description	1.5kW, 6P, Frame Size 100, 3 Phases, 500V, 50Hz, IP55 Enclosure, IMB3/IM1001 Mounting (3GJP103500-AEJ)
Short Description	1.5kW, 6P, Frame Size 100, 3PH, 500V, 50Hz, IP55, IMB3/IM1001

Electrical

Temperature Class Default	T4
Altitude	1000 m m
Ambient Temperature	40 °C
IC Class	IC411
IE Class Data (50 Hz)	IE Class IE2, Full Load (100%) 81.2 %, Partial Load (75%) 81.5 %, Partial Load (50%) 79.5 %
IE Class Data (60 Hz)	IE Class IE1, Full Load (100%) 82.2 %, Partial Load (75%) 81.7 %, Partial Load (50%) 78.8 %
IP Class	IP55
Insulation Class	ICLF
Direction of Rotation	Both sides
Number of Poles (High)	6
Two Speed Motor	No
Type of Duty	S1
Voltage Code	E
EX-Protection	Exdb
Gas Group	IIB

Mechanical

Frame Material	Cast Iron
Frame Size	100
Bearing	6206-2Z/C3
Bearing NDE	6205-2Z/C3
IM Class	IMB3 IM1001
Terminator Box Location	D-End top

Dimensions

Product Net Weight	67 kg kg
Gross Weight	72 kg kg

Environmental

WEEE Category	5. Small Equipment (No External Dimension More Than 50 cm) cm
SCIP	297e96db-dbee-43c1-ad2d-ddd583080bb8 Finland

External Classifications and Standards

UNSPSC

26101100
