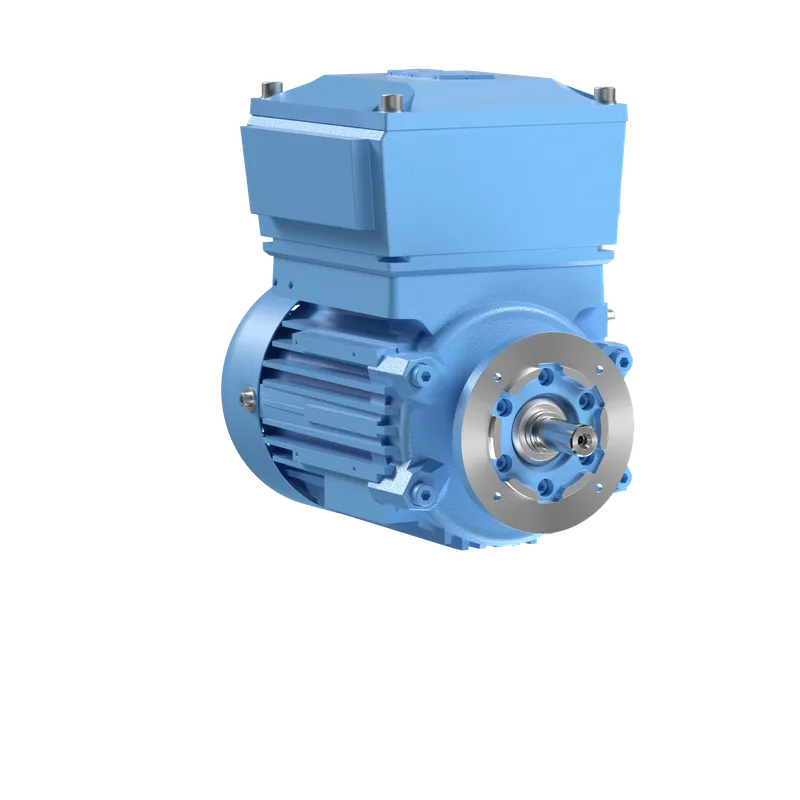

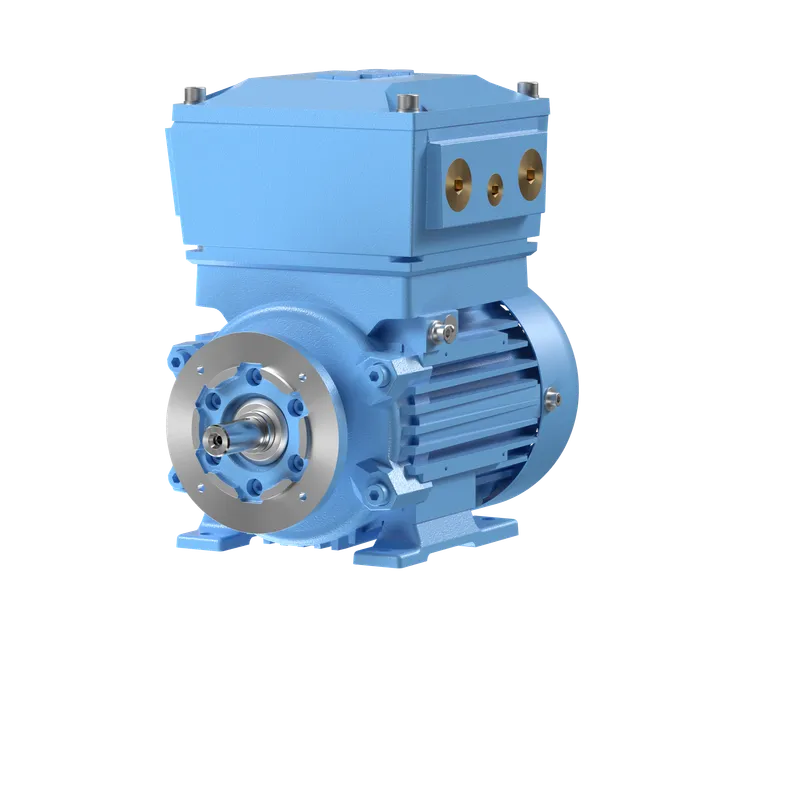

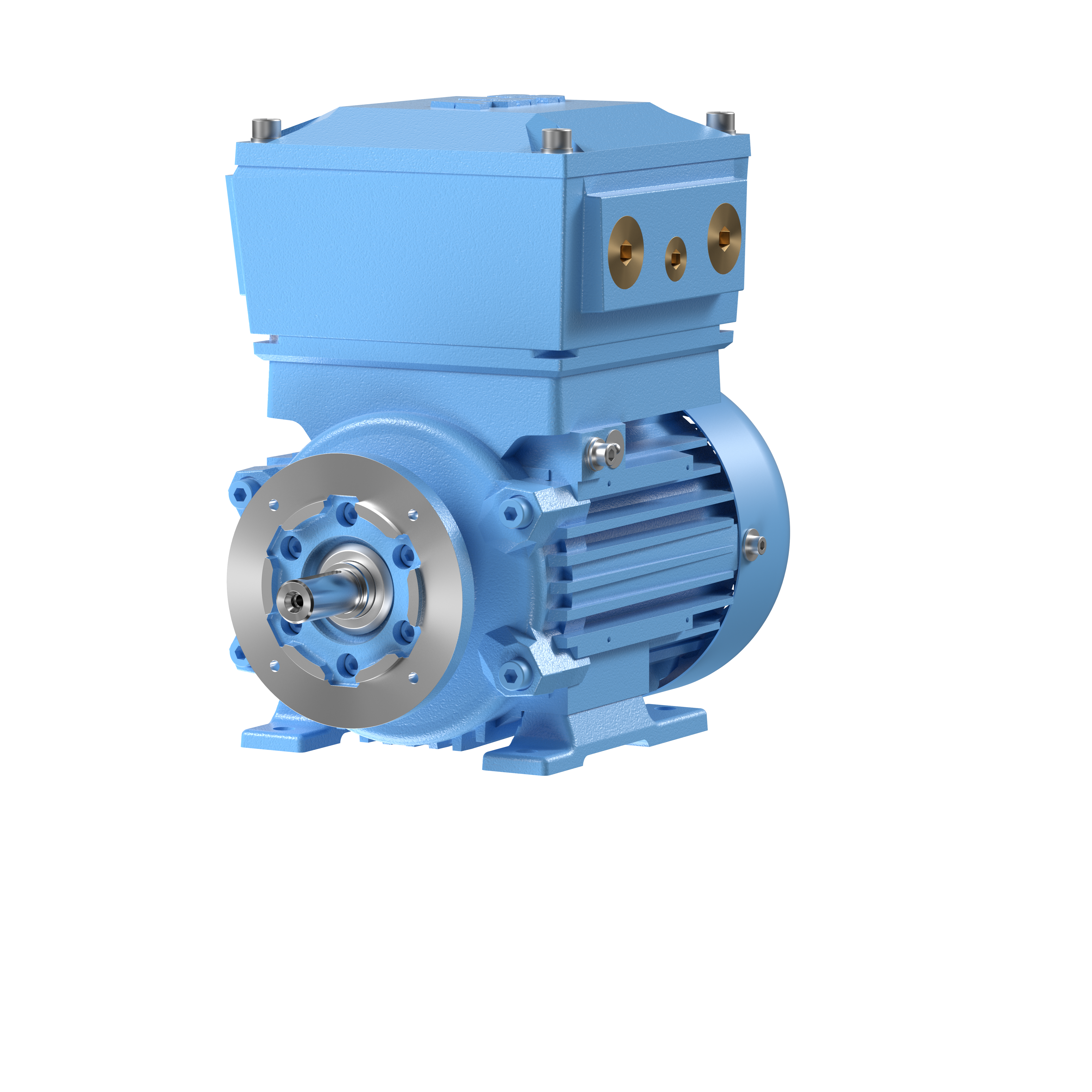

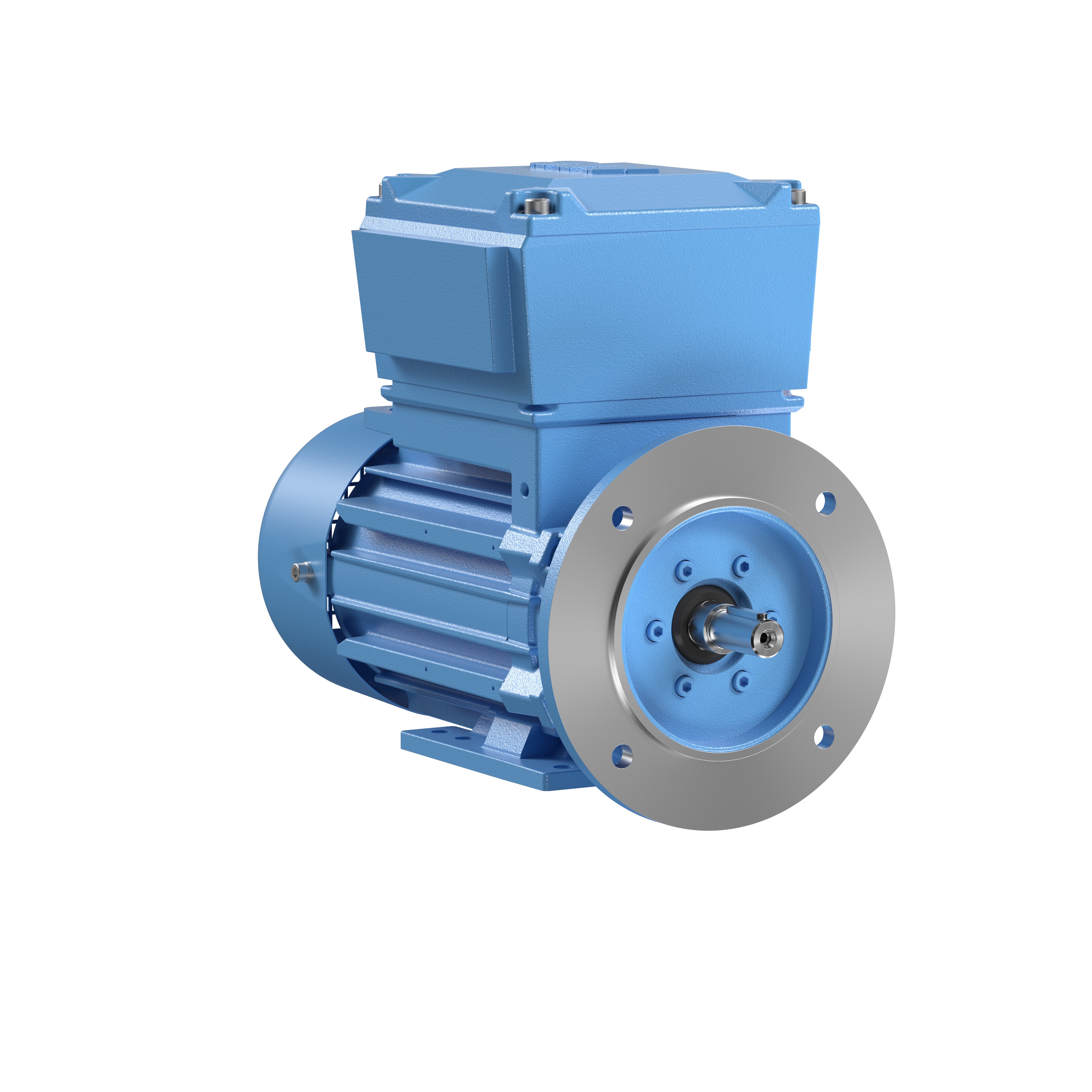

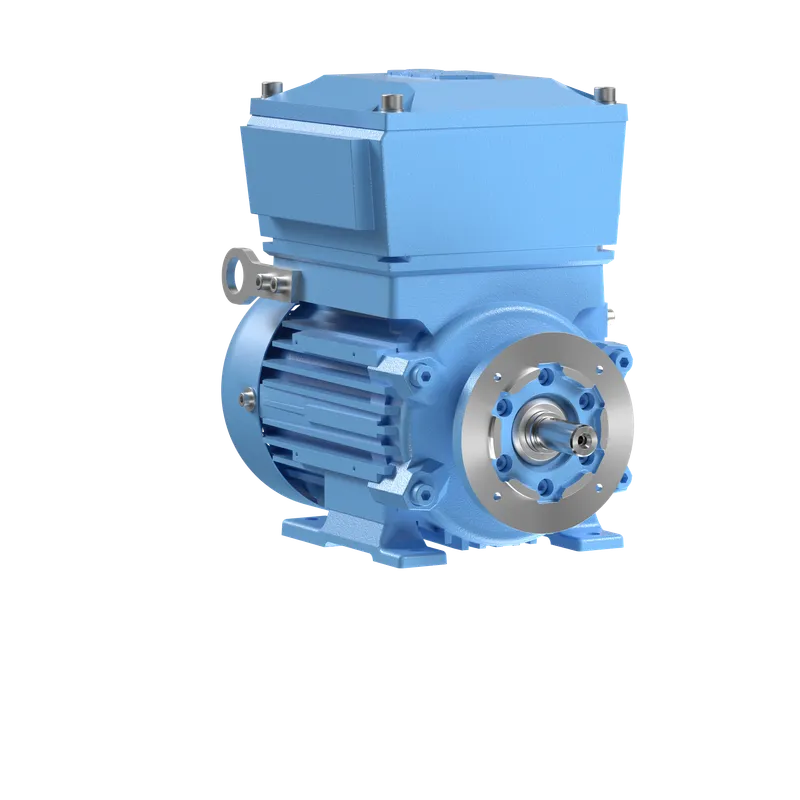

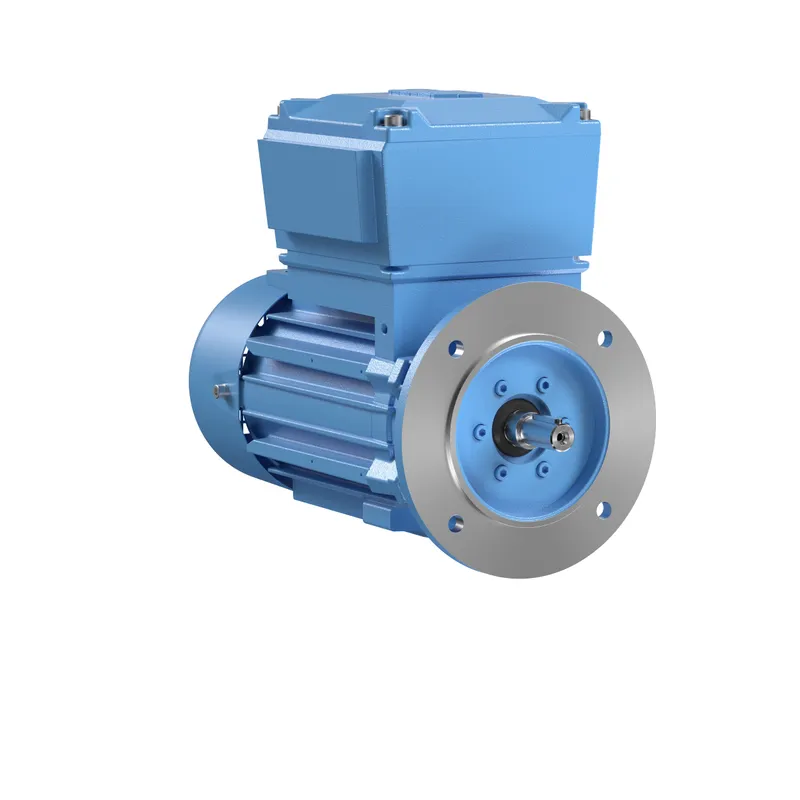

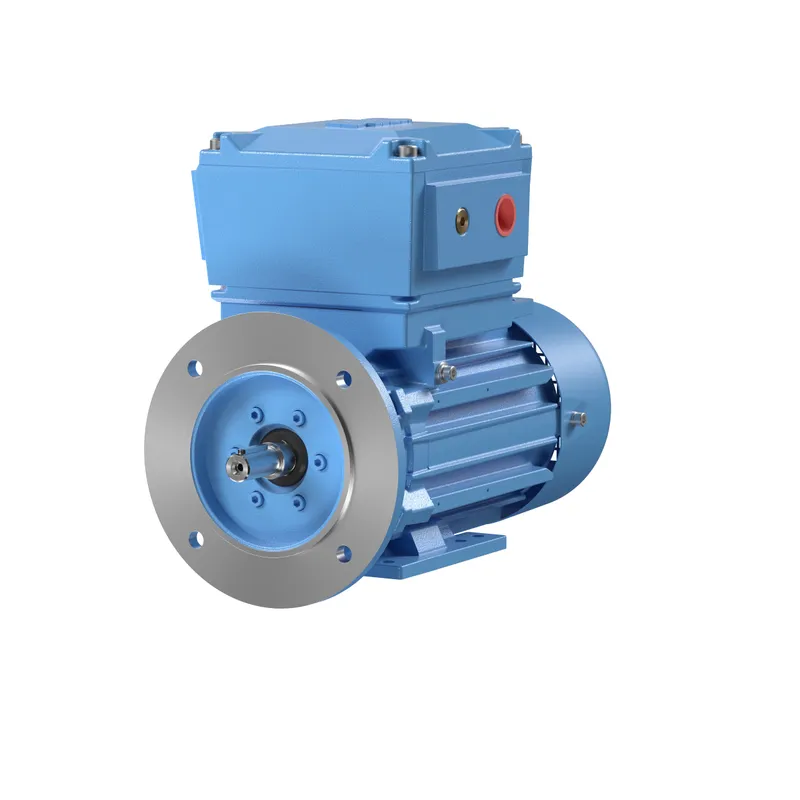

ABB 3GJP092030-BDH

M3JP 90SLC 4

MPN: 3GJP092030-BDH

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare ABB parts? We buy surplus →

What is the ABB 3GJP092030-BDH?

M3JP 90SLC 4

Specifications

Ordering

ABB Type Designation	M3JP 90SLC 4
Invoice Description	M3JP 90SLC 4
Product Name	3-Phase squirrel cage motor
Product Type	3JP2__M3JP_IE2_Flameproof_Ex_db_motor
Country or Territory of Origin	Finland
Customs Tariff Number	85015220
Replaced Product ID (OLD)	3GJP092030-BDG

Electrical

Temperature Class Default	T4
Altitude	1000 m m
Ambient Temperature	40 °C
IC Class	IC411
IE Class Data (50 Hz)	IE Class IE2, Full Load (100%) 83.2 %, Partial Load (75%) 83.6 %, Partial Load (50%) 81.9 %
IP Class	IP55
Insulation Class	ICLF
Direction of Rotation	Both sides
Number of Poles (High)	4
Two Speed Motor	No
Type of Duty	S1
Voltage Code	D
EX-Protection	Exd
Gas Group	IIB

Mechanical

Frame Material	Cast Iron
Frame Size	90
Bearing	6205-2Z/C3
Bearing NDE	6205-2Z/C3
IM Class	IMB5 IM3001
Terminator Box Location	Top

Dimensions

Product Net Weight	53 kg kg
Gross Weight	56 kg kg

Environmental

WEEE Category

5. Small Equipment (No External Dimension More Than 50 cm) cm

External Classifications and Standards

UNSPSC

26101100
