Home / ABB / ABB 3GJP082310-ASH

ABB

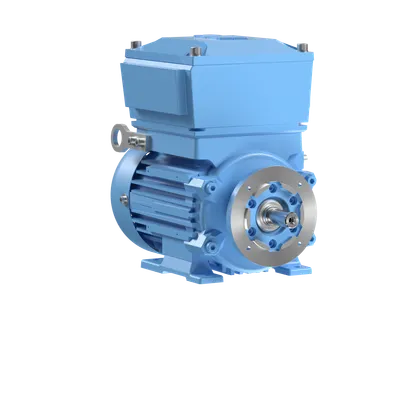

ABB 3GJP082310-ASH

MPN: 3GJP082310-ASH

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare ABB parts? We buy surplus →

What is the ABB 3GJP082310-ASH?

M3JP 80MA 4

Specifications

Ordering

ABB Type Designation	M3JP 80MA 4
Invoice Description	M3JP 80MA 4
Product Name	3-Phase squirrel cage motor
Product Type	3JP2__M3JP_IE2_Flameproof_Ex_db_motor
Country or Territory of Origin	Finland, Poland
Customs Tariff Number	85015100
Replaced Product ID (OLD)	3GJP082310-ASG

Electrical

Temperature Class Default	T4
Altitude	1000 m m
Ambient Temperature	40 °C
IC Class	IC411
IE Class Data (50 Hz)	IE Class IE1, Full Load (100%) 76.6 %, Partial Load (75%) 76.9 %, Partial Load (50%) 74.1 %
IP Class	IP55
Insulation Class	ICLF
Direction of Rotation	Both sides
Number of Poles (High)	4
Two Speed Motor	No
Type of Duty	S1
Voltage Code	S
EX-Protection	Exd
Gas Group	IIB

Mechanical

Frame Material	Cast Iron
Frame Size	80
Bearing	6205-2Z/C3
Bearing NDE	6204-2Z/C3
IM Class	IMB3 IM1001
Terminator Box Location	Top

Dimensions

Product Net Weight	38 kg kg
Gross Weight	41 kg kg

Environmental

WEEE Category

5. Small Equipment (No External Dimension More Than 50 cm) cm

External Classifications and Standards

UNSPSC

26101100

3GJP082310-ASH: frequently asked questions

When can 3GJP082310-ASH be shipped?

3GJP082310-ASH is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 3GJP082310-ASH in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 3GJP082310-ASH and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 3GJP082310-ASH, subject to availability and destination.
