ABB 3GJM314210-BEL

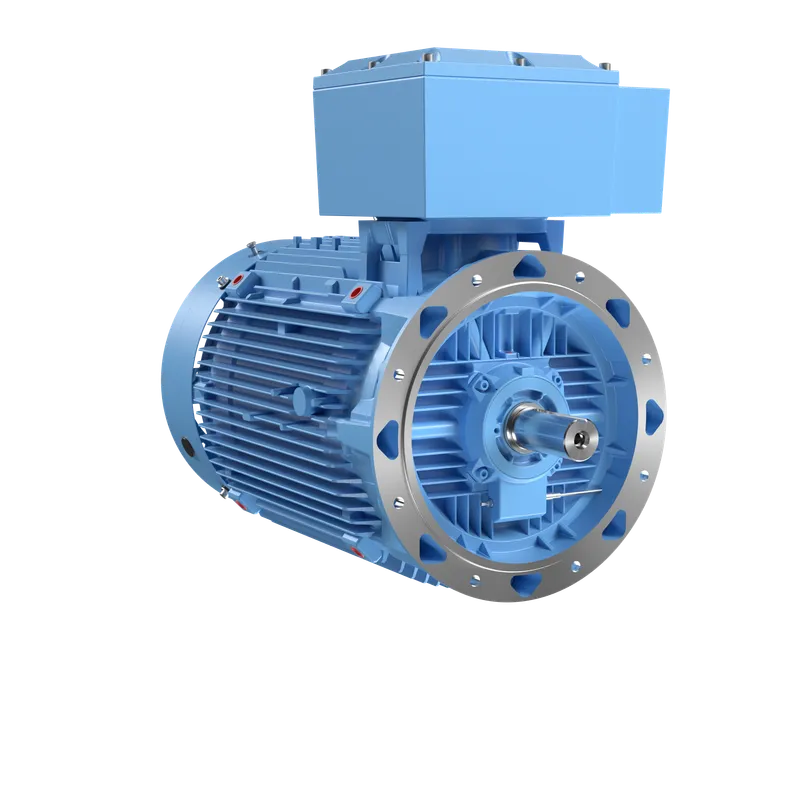

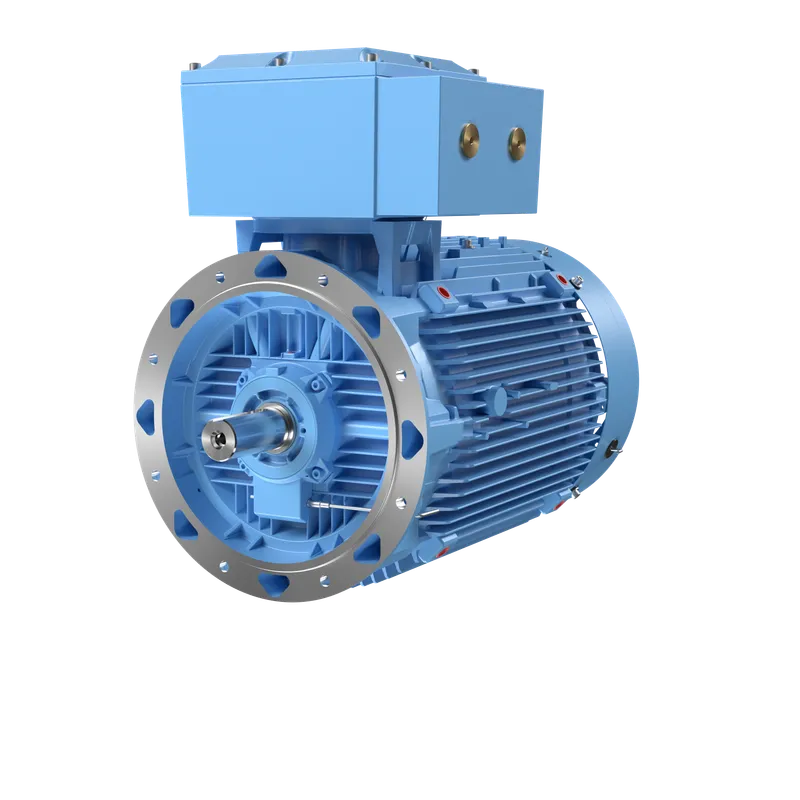

M3JM 315SMA 8

MPN: 3GJM314210-BEL
Category: Flameproof IEC Low voltage motors

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare ABB parts? We buy surplus →

What is the ABB 3GJM314210-BEL?

Flameproof IE3 Premium Efficiency Mining Motors, 55 kW, 500 V (3GJM314210-BEL)

Specifications

Ordering

ABB Type Designation	M3JM 315SMA 8
Invoice Description	M3JM 315SMA 8
Product Name	3-Phase squirrel cage motor
Product Type	5JM3__M3JM_IE3_Group_I_Flameproof_Exd_mining_motor
Country or Territory of Origin	Finland
Customs Tariff Number	85015230
Medium Description	55kW, 8 Poles, Frame Size 315, 3 Phases, 500V, 50Hz, IP66 Enclosure, IMB5/IM3001 Mounting (3GJM314210-BEL)
Short Description	55kW, 8P, Frame Size 315, 3PH, 500V, 50Hz, IP66, IMB5/IM3001

Electrical

Connection Configuration	D
Temperature Class Default	--
Input Voltage (Uin)	500 V V
Frequency (f)	50 Hz Hz
Output Power	55 kW kW
Altitude	1000 m m
Ambient Temperature	40 °C
IC Class	IC411
IE Class Data (50 Hz)	IE Class IE3, Full Load (100%) 92.5 %, Partial Load (75%) 93.1 %, Partial Load (50%) 92.5 %
IE Class Data (60 Hz)	IE Class IE2, Full Load (100%) 93.0 %, Partial Load (75%) 92.8 %, Partial Load (50%) 91.5 %
IP Class	IP66
Insulation Class	ICLF
Direction of Rotation	Both sides
Number of Poles (High)	8
Two Speed Motor	No
Type of Duty	S1
Voltage Code	E
EX-Protection	Exdb

Mechanical

Frame Material	Cast Iron
Frame Size	315
Bearing	6319/C3
Bearing NDE	6316/C3
IM Class	IMB5 IM3001
Terminator Box Location	Top

Dimensions

Product Net Depth / Length	1204 mm mm
Product Net Height	852 mm mm
Product Net Width	536 mm mm
Product Net Weight	960 kg kg
Gross Weight	980 kg kg

Environmental

WEEE Category

4. Large Equipment (Any External Dimension More Than 50 cm) cm

External Classifications and Standards

UNSPSC

26101100
