ABB 3GJM182430-BEH

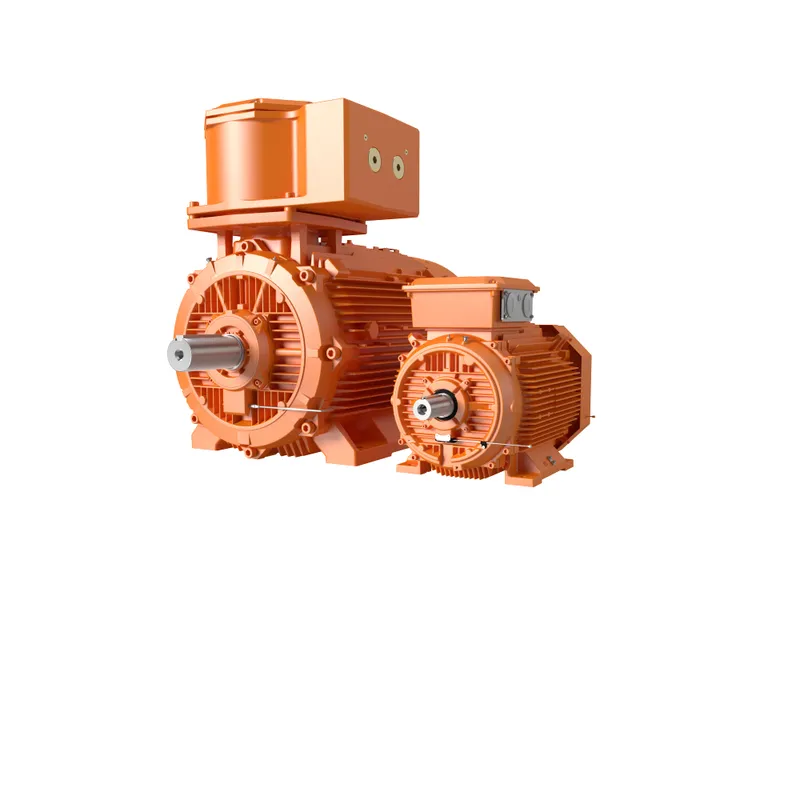

M3JM 180MLC 4

MPN: 3GJM182430-BEH
Category: Low voltage flameproof motors

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare ABB parts? We buy surplus →

What is the ABB 3GJM182430-BEH?

M3JM 180MLC 4

Specifications

Ordering

ABB Type Designation	M3JM 180MLC 4
Invoice Description	M3JM 180MLC 4
Product Name	3-Phase squirrel cage motor
Product Type	3JM2__M3JM_IE2_Group_I_Flameproof_Exd_mining_motor
Country or Territory of Origin	Finland
Customs Tariff Number	85015230
Medium Description	30kW, 4P, Frame Size 180, 3 Phases, 500V, 50Hz, IP66 Enclosure, IMB5/IM3001 Mounting (3GJM182430-BEH)
Short Description	30kW, 4P, Frame Size 180, 3PH, 500V, 50Hz, IP66, IMB5/IM3001

Electrical

Temperature Class Default	--
Altitude	1000 m m
Ambient Temperature	40 °C
IC Class	IC411
IE Class Data (50 Hz)	IE Class IE1, Full Load (100%) 92.1 %, Partial Load (75%) 92.4 %, Partial Load (50%) 91.8 %
IP Class	IP66
Insulation Class	ICLF
Direction of Rotation	Both sides
Number of Poles (High)	4
Two Speed Motor	No
Type of Duty	S1
Voltage Code	E
EX-Protection	Exdb

Mechanical

Frame Material	Cast Iron
Frame Size	180
Bearing	6310/C3
Bearing NDE	6310/C3
IM Class	IMB5 IM3001
Terminator Box Location	Top

Dimensions

Product Net Weight	313 kg kg
Gross Weight	323 kg kg

Environmental

WEEE Category

4. Large Equipment (Any External Dimension More Than 50 cm) cm

External Classifications and Standards

UNSPSC

26101100
