ABB 3GJM133260-CEJ

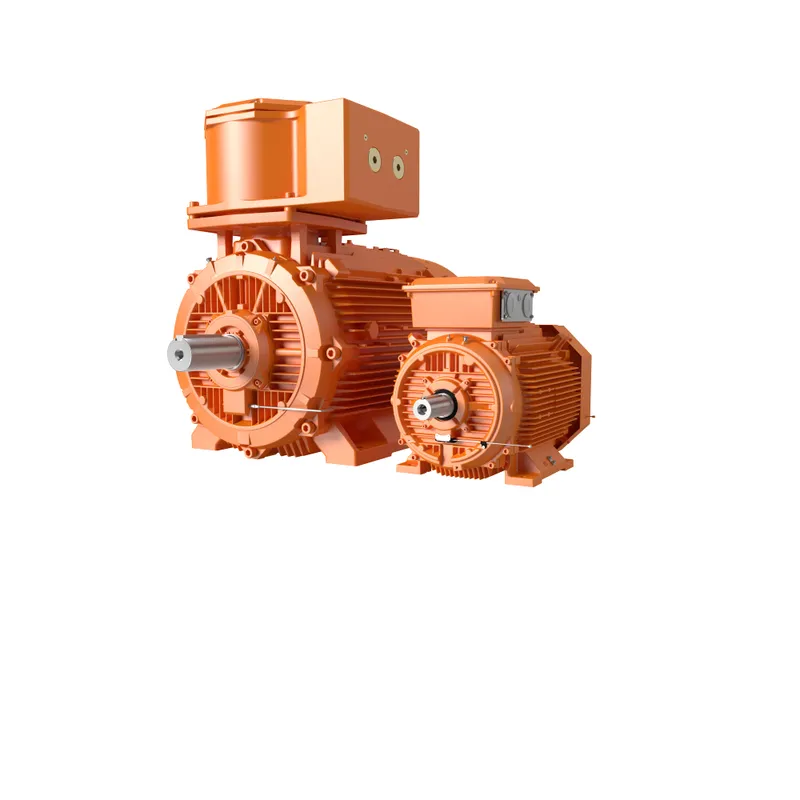

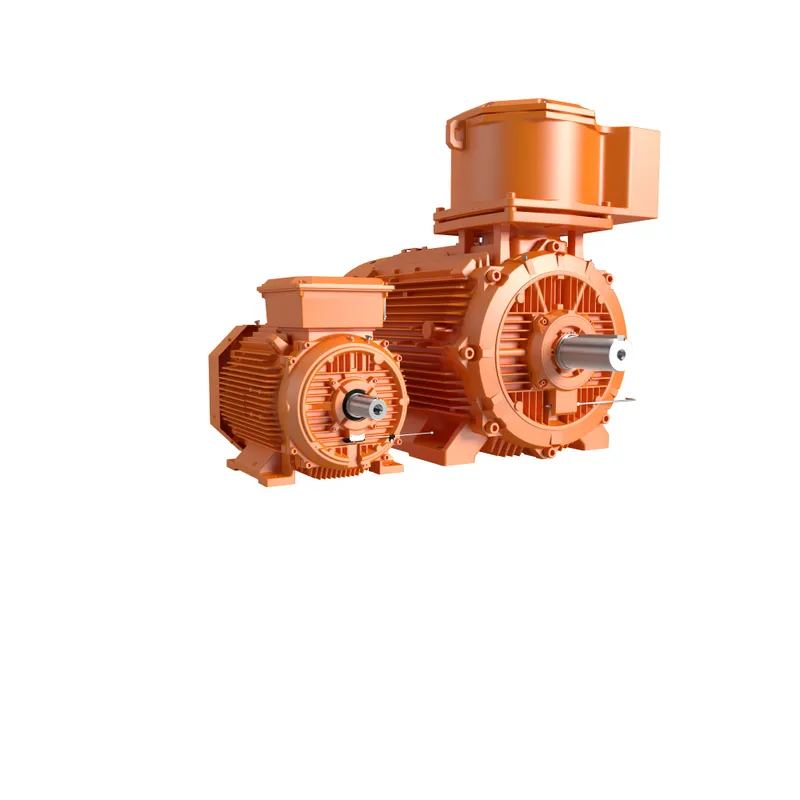

M3JM 132SMF 6

MPN: 3GJM133260-CEJ
Category: Flameproof IEC Low voltage motors

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare ABB parts? We buy surplus →

What is the ABB 3GJM133260-CEJ?

No Description Available

Specifications

Ordering

ABB Type Designation	M3JM 132SMF 6
Product Name	3-Phase squirrel cage motor
Product Type	3JM0__M3JM_IE2_Group_I_Flameproof_Exd_mining_motor
Country or Territory of Origin	Finland
Customs Tariff Number	85015220
Replaced Product ID (OLD)	3GJM133240-CEH

Electrical

Temperature Class Default	--
Altitude	1000 m m
Ambient Temperature	40 °C
IC Class	IC411
IE Class Data (50 Hz)	IE Class IE2, Full Load (100%) 86.0 %, Partial Load (75%) 86.4 %, Partial Load (50%) 85.3 %
IE Class Data (60 Hz)	IE Class IE1, Full Load (100%) 85.5 %, Partial Load (75%) 84.8 %, Partial Load (50%) 82.2 %
IP Class	IP66
Insulation Class	ICLF
Direction of Rotation	Both sides
Number of Poles (High)	6
Two Speed Motor	No
Voltage Code	E

Mechanical

Frame Material	Cast Iron
Frame Size	132
Bearing	6208-2Z/C3
Bearing NDE	6208-2Z/C3
IM Class	IMB14 IM3601
Terminator Box Location	D-End top

Dimensions

Product Net Weight	124 kg kg
Gross Weight	129 kg kg

Environmental

WEEE Category

5. Small Equipment (No External Dimension More Than 50 cm) cm

External Classifications and Standards

UNSPSC

26101100
