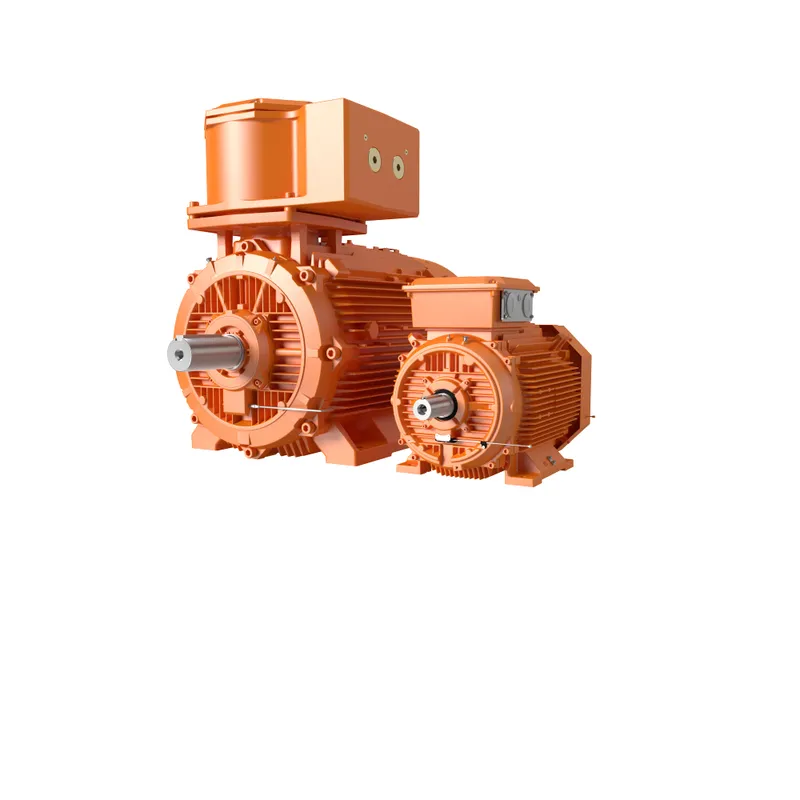

ABB 3GJM133220-BEJ

M3JM 132SMB 6

MPN: 3GJM133220-BEJ
Category: Flameproof IEC Low voltage motors

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare ABB parts? We buy surplus →

What is the ABB 3GJM133220-BEJ?

M3JM 132SMB 6

Specifications

Ordering

ABB Type Designation	M3JM 132SMB 6
Invoice Description	M3JM 132SMB 6
Product Name	3-Phase squirrel cage motor
Product Type	3JM0__M3JM_IE2_Group_I_Flameproof_Exd_mining_motor
Country or Territory of Origin	Finland
Customs Tariff Number	85015220
Replaced Product ID (OLD)	3GJM133220-BEH
Medium Description	3kW, 6P, Frame Size 132, 3 Phases, 500V, 50Hz, IP66 Enclosure, IMB5/IM3001 Mounting (3GJM133220-BEJ)
Short Description	3kW, 6P, Frame Size 132, 3PH, 500V, 50Hz, IP66, IMB5/IM3001

Electrical

Temperature Class Default	--
Altitude	1000 m m
Ambient Temperature	40 °C
IC Class	IC411
IE Class Data (50 Hz)	IE Class IE2, Full Load (100%) 85.1 %, Partial Load (75%) 84.0 %, Partial Load (50%) 81.0 %
IE Class Data (60 Hz)	IE Class IE1, Full Load (100%) 85.2 %, Partial Load (75%) 83.5 %, Partial Load (50%) 79.4 %
IP Class	IP66
Insulation Class	ICLF
Direction of Rotation	Both sides
Number of Poles (High)	6
Two Speed Motor	No
Type of Duty	S1
Voltage Code	E
EX-Protection	Exdb

Mechanical

Frame Material	Cast Iron
Frame Size	132
Bearing	6208-2Z/C3
Bearing NDE	6208-2Z/C3
IM Class	IMB5 IM3001
Terminator Box Location	D-End top

Dimensions

Product Net Weight	109 kg kg
Gross Weight	114 kg kg

Environmental

WEEE Category

5. Small Equipment (No External Dimension More Than 50 cm) cm

External Classifications and Standards

UNSPSC

26101100
