ABB 3GJM114330-CFK

MPN: 3GJM114330-CFK
Category: Flameproof IEC Low voltage motors

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare ABB parts? We buy surplus →

What is the ABB 3GJM114330-CFK?

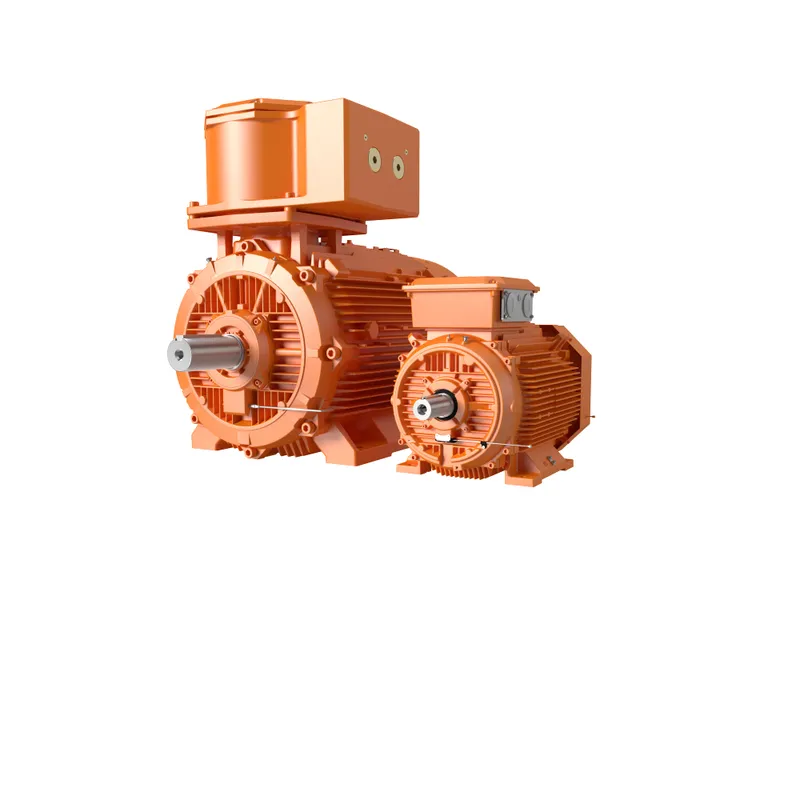

Flameproof IE3 Premium Efficiency Mining Motors, 1.5 kW, 500 V (3GJM114330-CFK)

Specifications

Ordering

ABB Type Designation	M3JM 112MC 8
Invoice Description	M3JM 112MC 8
Product Name	3-Phase squirrel cage motor
Product Type	3JM3__M3JM_IE3_Group_I_Flameproof_Exd_mining_motor
Country or Territory of Origin	Finland
Customs Tariff Number	85015220
Medium Description	1.5kW, 8 Poles, Frame Size 112, 3 Phases, 500V, 50Hz, IP66 Enclosure, IMB14/IM3601 Mounting (3GJM114330-CFK)
Short Description	1.5kW, 8P, Frame Size 112, 3PH, 500V, 50Hz, IP66, IMB14/IM3601

Electrical

Connection Configuration	Y
Temperature Class Default	--
Input Voltage (Uin)	500 V V
Frequency (f)	50 Hz Hz
Output Power	1.5 kW kW
Altitude	1000 m m
Ambient Temperature	40 °C
IC Class	IC411
IE Class Data (50 Hz)	IE Class IE3, Full Load (100%) 79.7 %, Partial Load (75%) 80.1 %, Partial Load (50%) 78.8 %
IE Class Data (60 Hz)	IE Class IE3, Full Load (100%) 84.0 %, Partial Load (75%) 83.6 %, Partial Load (50%) 81.3 %
IP Class	IP66
Insulation Class	ICLF
Direction of Rotation	Both sides
Number of Poles (High)	8
Two Speed Motor	No
Type of Duty	S1
Voltage Code	F
EX-Protection	Exdb

Mechanical

Frame Material	Cast Iron
Frame Size	112
Bearing	6206-2Z/C3
Bearing NDE	6206-2Z/C3
IM Class	IMB14 IM3601
Terminator Box Location	D-End top

Dimensions

Product Net Depth / Length	442 mm mm
Product Net Height	258 mm mm
Product Net Width	202 mm mm
Product Net Weight	83 kg kg
Gross Weight	88 kg kg

Environmental

WEEE Category

5. Small Equipment (No External Dimension More Than 50 cm) cm

External Classifications and Standards

UNSPSC

26101100
