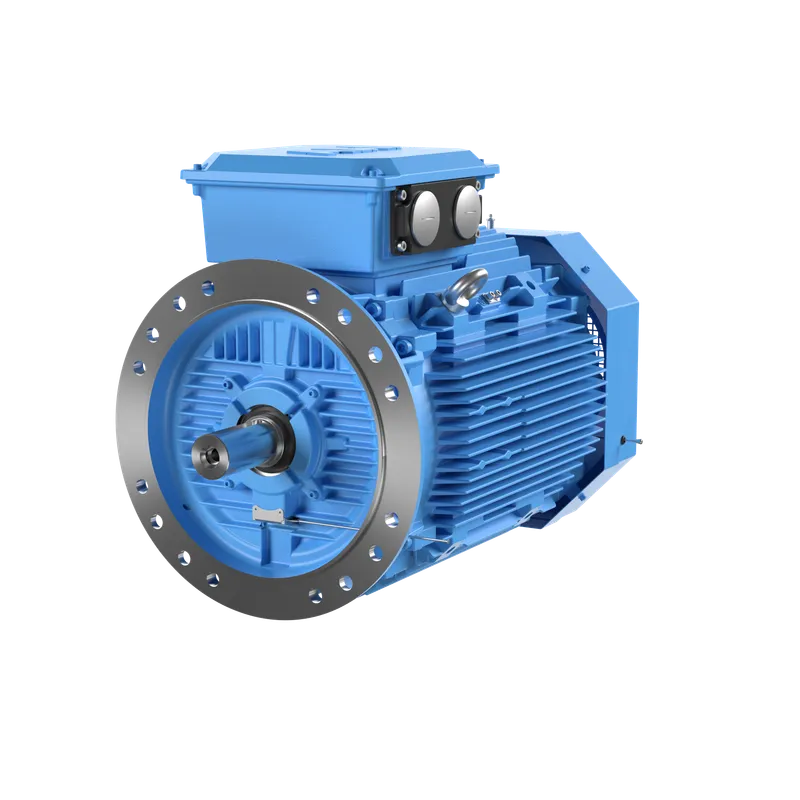

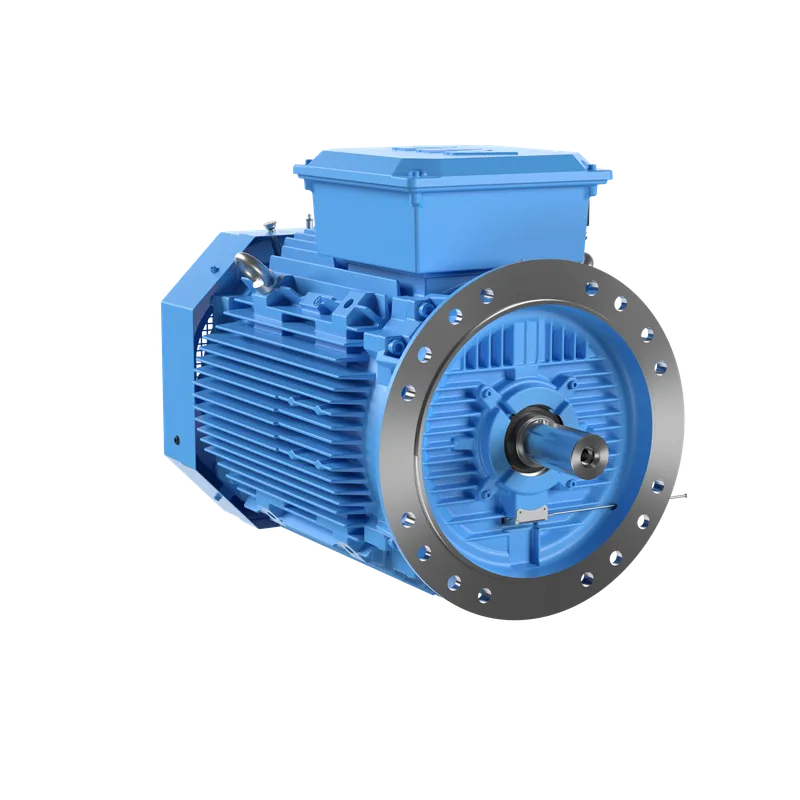

ABB 3GHL252223-BUC
M3HL 250SMB 4
- MPN
- 3GHL252223-BUC
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the ABB 3GHL252223-BUC?
Inceased Safety IE5 Ex eb SynRM Motors, 55 kW, 690 V, (3GHL252223-BUC)
Specifications
Ordering
| ABB Type Designation | M3HL 250SMB 4 |
| Invoice Description | M3HL 250SMB 4 |
| Product Name | 3Phase Synchronous reluctance motor |
| Product Type | 3HL5__M3HL_IE5_SynRM_Ex |
| Country or Territory of Origin | Finland |
| Customs Tariff Number | 85015290 |
| Medium Description | 55kW, 4P, Frame Size 250, 3 Phases, 690V, 50Hz, IP55 Enclosure, IMB5/IM3001 Mounting (3GHL252223-BUC) |
| Short Description | 55kW, 4P, Frame Size 250, 3PH, 690V, 50Hz, IP55, IMB5/IM3001 |
Electrical
| Connection Configuration | Y |
| Temperature Class Default | T3 |
| Input Voltage (Uin) | 690 V V |
| Frequency (f) | 50 Hz Hz |
| Motor Operational Voltage | 650 V V |
| Operating Frequency (fsw) | 50.000 Hz Hz |
| Output Power | 55 kW kW |
| Altitude | 1000 m m |
| Ambient Temperature | 40 °C |
| IC Class | IC411 |
| IE Class Data (50 Hz) | IE Class IE5, Full Load (100%) 96.1 %, Partial Load (75%) 95.9 %, Partial Load (50%) 95.2 % |
| IP Class | IP55 |
| Insulation Class | ICLF |
| Direction of Rotation | Both sides |
| Number of Poles (High) | 4 |
| Two Speed Motor | No |
| Type of Duty | S9 |
| Voltage Code | U |
| EX-Protection | Exeb |
| Gas Group | IIC |
Mechanical
| Frame Material | Cast Iron |
| Frame Size | 250 |
| Bearing | 6315/C3 |
| Bearing NDE | 6213/C3 |
| IM Class | IMB5 IM3001 |
| Terminator Box Location | D-End top |
Dimensions
| Product Net Depth / Length | 884 mm mm |
| Product Net Height | 626 mm mm |
| Product Net Width | 480 mm mm |
| Product Net Weight | 454 kg kg |
| Gross Weight | 464 kg kg |
Environmental
| WEEE Category | 4. Large Equipment (Any External Dimension More Than 50 cm) cm |
Circular Value
| ABB EcoSolutions | Yes |
Eco Transparency
| Environmental Product Declaration - EPD | 9AAU00000000027 |
External Classifications and Standards
| UNSPSC | 26101100 |
