What is the ABB 3GGP452520-ADK?

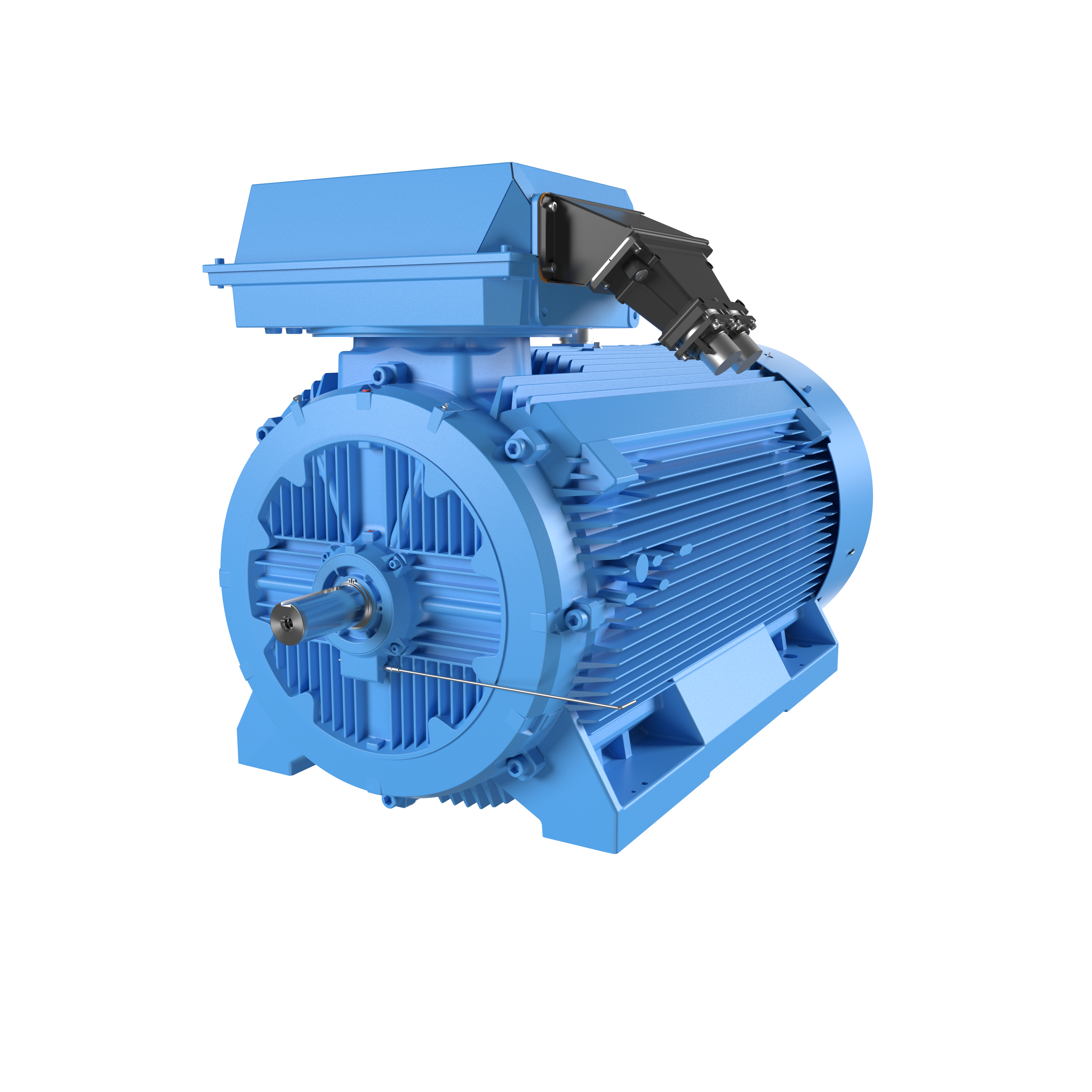

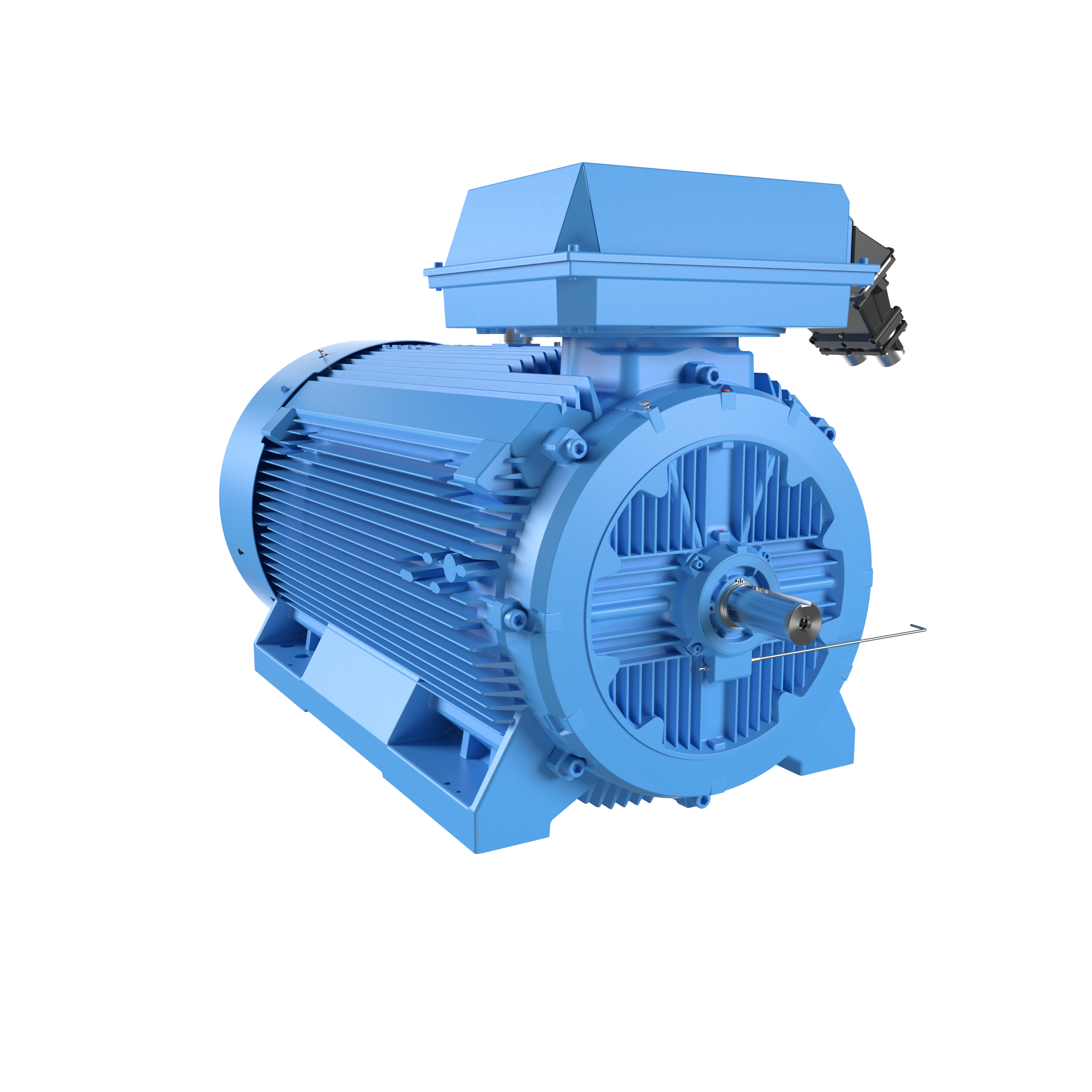

Dust Ignition Proof IE3 Motors, 900 kW, 400 V (3GGP452520-ADK)

Specifications

Ordering

ABB Type Designation	M3GP 450LB 4
Invoice Description	M3GP 450LB 4
Product Name	3-Phase squirrel cage motor
Product Type	3GP3__M3GP_IE3_CI
Country or Territory of Origin	Finland
Customs Tariff Number	85015399
Medium Description	900kW, 4 Poles, Frame Size 450, 3 Phases, 400V, 50Hz, IP55 Enclosure, IMB3/IM1001 Mounting (3GGP452520-ADK)
Short Description	900kW, 4P, Frame Size 450, 3PH, 400V, 50Hz, IP55, IMB3/IM1001

Electrical

Connection Configuration	D
Temperature Class Default	T3
Input Voltage (Uin)	400 V V
Frequency (f)	50 Hz Hz
Output Power	900 kW kW
Altitude	1000 m m
Ambient Temperature	40 °C
IC Class	IC411
IE Class Data (50 Hz)	IE Class IE3, Full Load (100%) 96.0 %, Partial Load (75%) 95.9 %, Partial Load (50%) 95.1 %
IE Class Data (60 Hz)	IE Class IE3, Full Load (100%) 96.2 %, Partial Load (75%) 95.7 %, Partial Load (50%) 95.3 %
IP Class	IP55
Insulation Class	ICLF
Direction of Rotation	Both sides
Number of Poles (High)	4
Two Speed Motor	No
Type of Duty	S1
Voltage Code	D
EX-Protection	Exec
Gas Group	IIC

Mechanical

Frame Material	Cast Iron
Frame Size	450
Bearing	6326/C3
Bearing NDE	6322/C3
IM Class	IMB3 IM1001
Terminator Box Location	Top

Dimensions

Product Net Depth / Length	2187 mm mm
Product Net Height	1231 mm mm
Product Net Width	966 mm mm
Product Net Weight	4350 kg kg
Gross Weight	4390 kg kg

Environmental

WEEE Category

4. Large Equipment (Any External Dimension More Than 50 cm) cm

External Classifications and Standards

UNSPSC

26101100
