What is the ABB 3GGP403530-ADG?

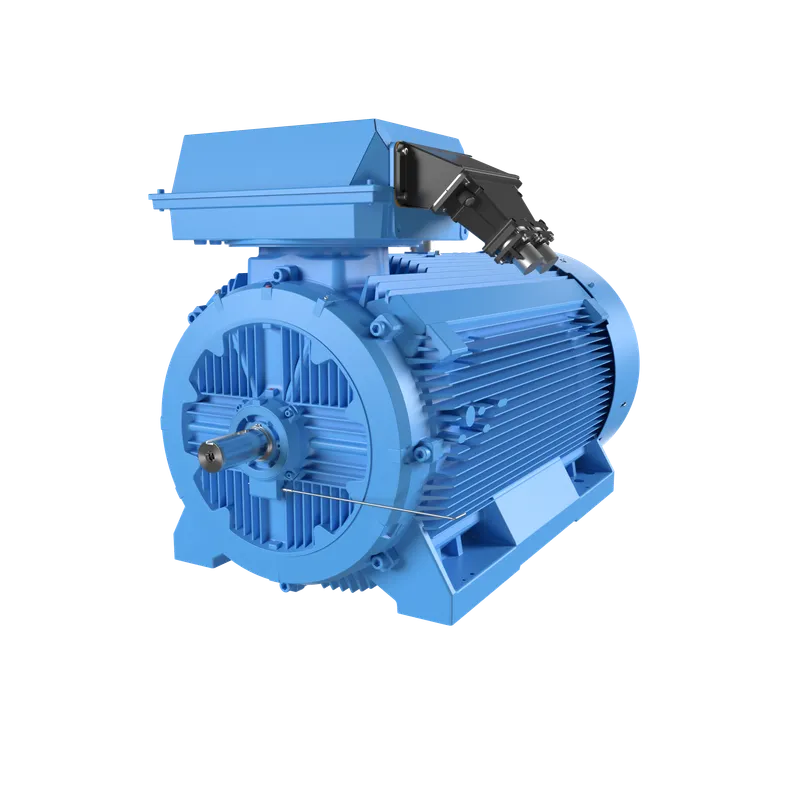

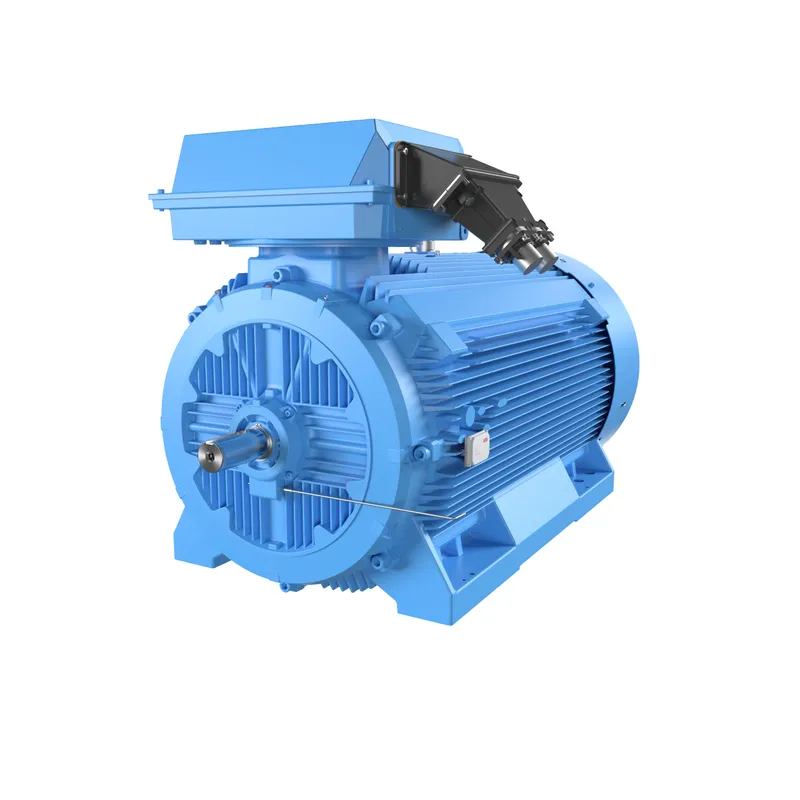

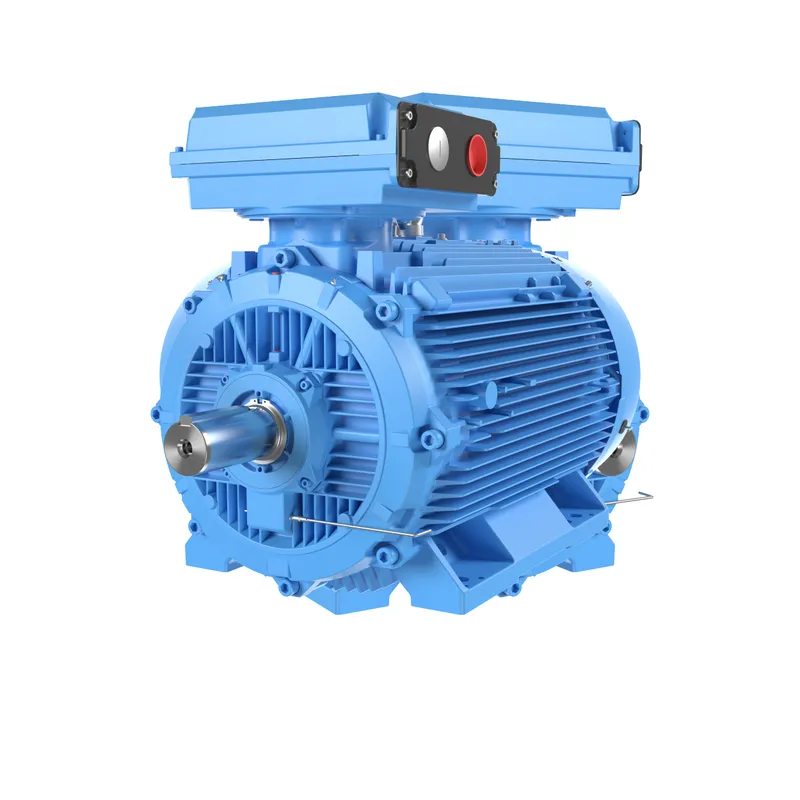

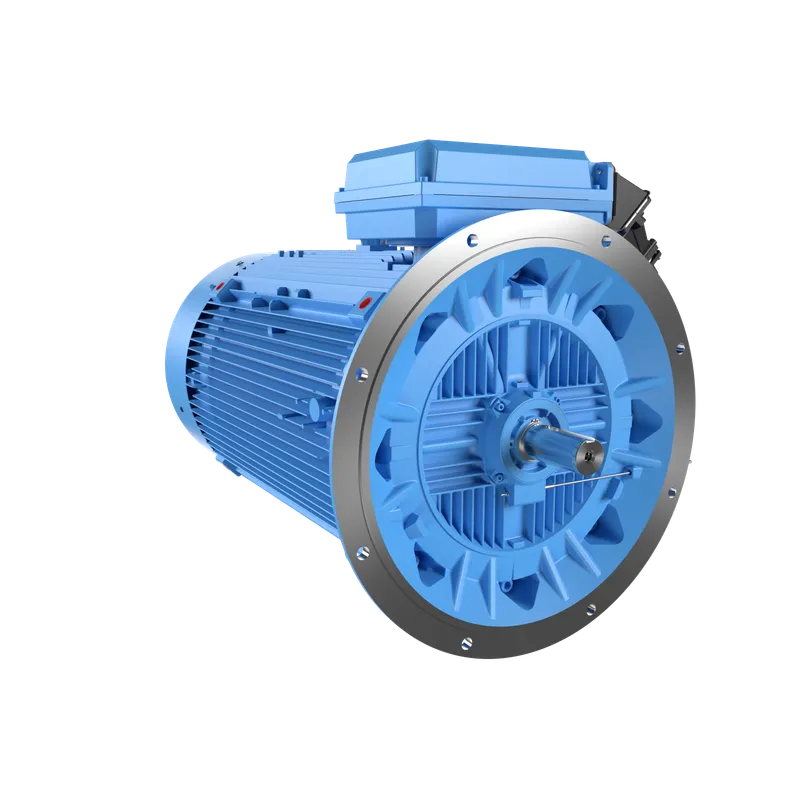

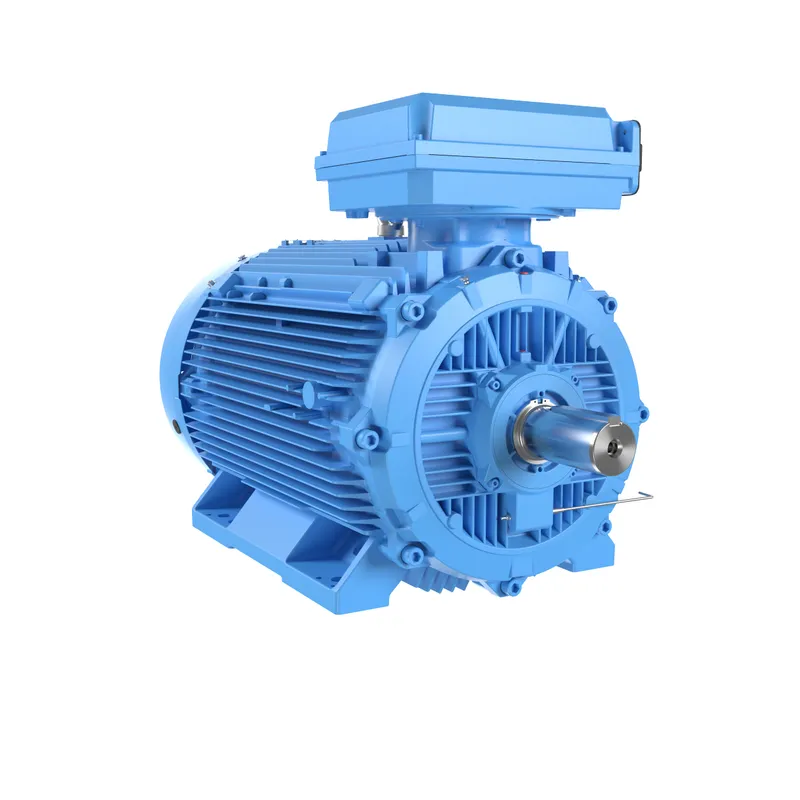

M3GP 400LC 6

Specifications

Ordering

ABB Type Designation	M3GP 400LC 6
Invoice Description	M3GP 400LC 6
Product Name	3-Phase squirrel cage motor
Product Type	3GP2__M3GP_IE2_CI
Country or Territory of Origin	Finland
Customs Tariff Number	85015394
Medium Description	?kW, 6P, Frame Size 400, 3 Phases, 400V, ?Hz, IP55 Enclosure, IMB3/IM1001 Mounting (3GGP403530-ADG) kW
Short Description	?kW, 6P, Frame Size 400, 3PH, 400V, ?Hz, IP55, IMB3/IM1001 kW

Electrical

Temperature Class Default	T3
Altitude	1000 m m
Ambient Temperature	40 °C
IC Class	IC411
IE Class Data (50 Hz)	IE Class IE2, Full Load (100%) 95.0 %, Partial Load (75%) 94.8 %, Partial Load (50%) 94.3 %
IP Class	IP55
Insulation Class	ICLF
Direction of Rotation	Both sides
Number of Poles (High)	6
Two Speed Motor	No
Type of Duty	S1
Voltage Code	D
EX-Protection	Exec
Gas Group	IIC

Mechanical

Frame Material	Cast Iron
Frame Size	400
Bearing	6324/C3
Bearing NDE	6319/C3
IM Class	IMB3 IM1001
Terminator Box Location	Top

Dimensions

Product Net Weight	3300 kg kg
Gross Weight	3340 kg kg

Environmental

WEEE Category

4. Large Equipment (Any External Dimension More Than 50 cm) cm

External Classifications and Standards

UNSPSC

26101100
