Home / ABB / Flameproof IEC Low voltage motors / ABB 3GGP352210-BSG

ABB

ABB 3GGP352210-BSG

M3GP 355SMA 4

MPN: 3GGP352210-BSG
Category: Flameproof IEC Low voltage motors

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare ABB parts? We buy surplus →

What is the ABB 3GGP352210-BSG?

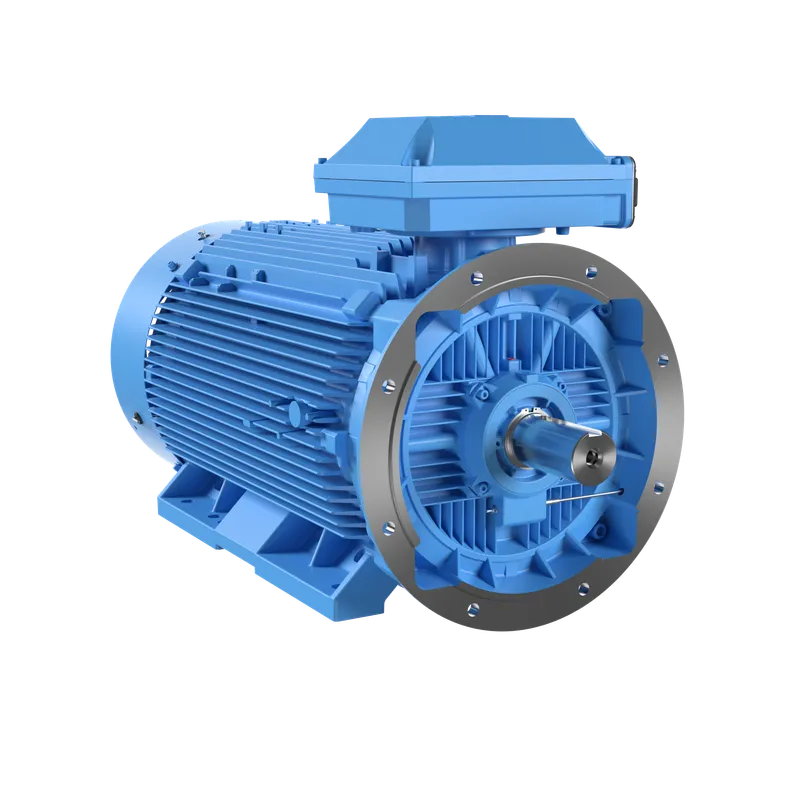

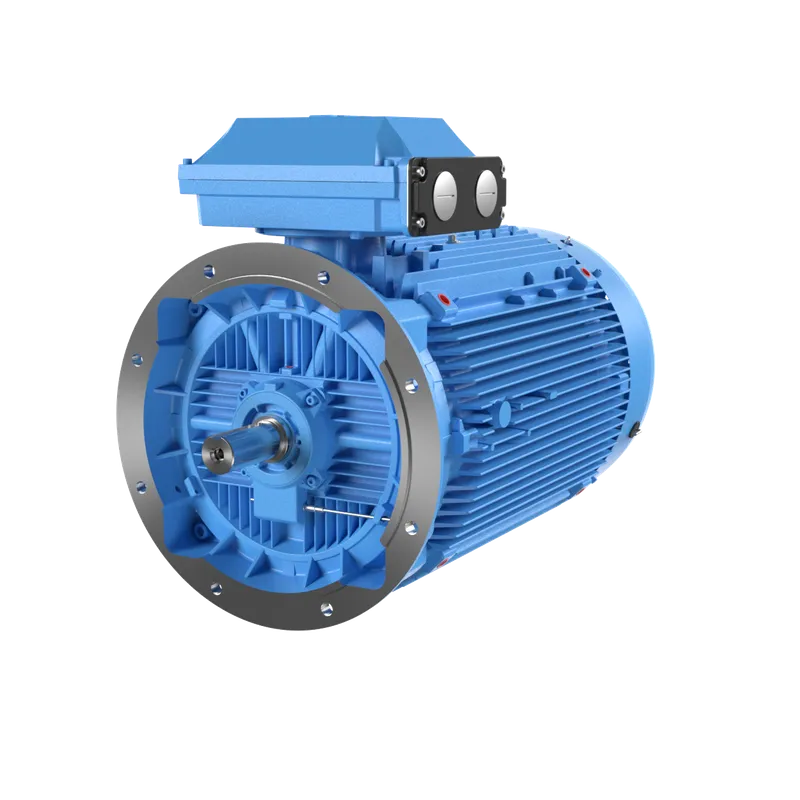

M3GP 355SMA 4

Specifications

Ordering

ABB Type Designation	M3GP 355SMA 4
Invoice Description	M3GP 355SMA 4
Product Name	3-Phase squirrel cage motor
Product Type	3GP2__M3GP_IE2_CI
Country or Territory of Origin	Finland
Customs Tariff Number	85015381
Medium Description	?kW, 4P, Frame Size 355, 3 Phases, 400V, ?Hz, IP55 Enclosure, IMB5/IM3001 Mounting (3GGP352210-BSG) kW
Short Description	?kW, 4P, Frame Size 355, 3PH, 400V, ?Hz, IP55, IMB5/IM3001 kW

Electrical

Temperature Class Default	T3
Altitude	1000 m m
Ambient Temperature	40 °C
IC Class	IC411
IE Class Data (50 Hz)	IE Class IE2, Full Load (100%) 95.9 %, Partial Load (75%) 96.0 %, Partial Load (50%) 95.4 %
IP Class	IP55
Insulation Class	ICLF
Direction of Rotation	Both sides
Number of Poles (High)	4
Two Speed Motor	No
Type of Duty	S1
Voltage Code	S
EX-Protection	Exec
Gas Group	IIC

Mechanical

Frame Material	Cast Iron
Frame Size	355
Bearing	6322/C3
Bearing NDE	6316/C3
IM Class	IMB5 IM3001
Terminator Box Location	Top

Dimensions

Product Net Weight	1610 kg kg
Gross Weight	1640 kg kg

Environmental

WEEE Category

4. Large Equipment (Any External Dimension More Than 50 cm) cm

External Classifications and Standards

UNSPSC

26101100, 39120000
