ABB

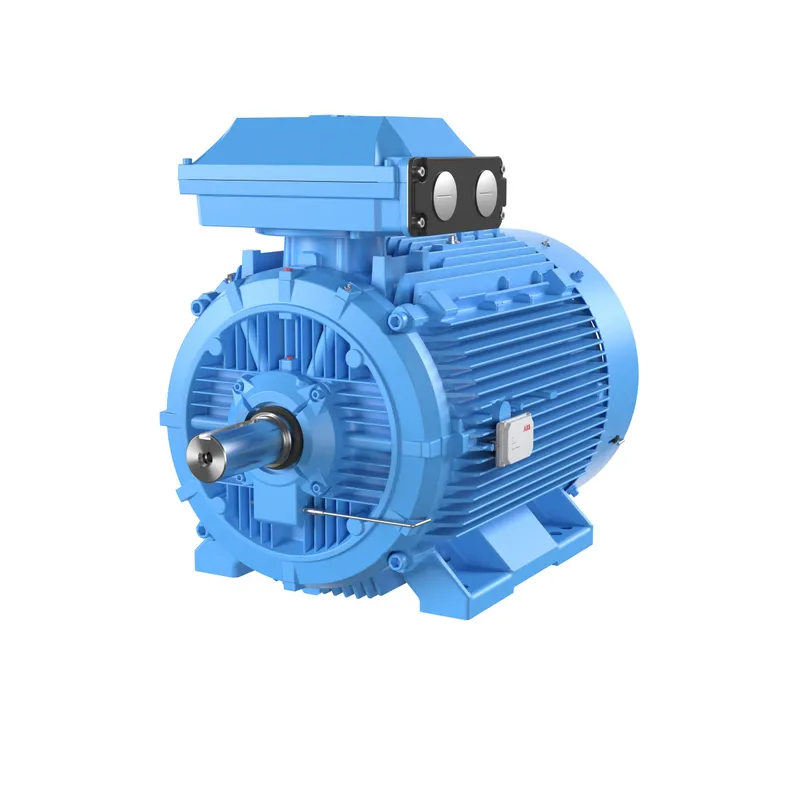

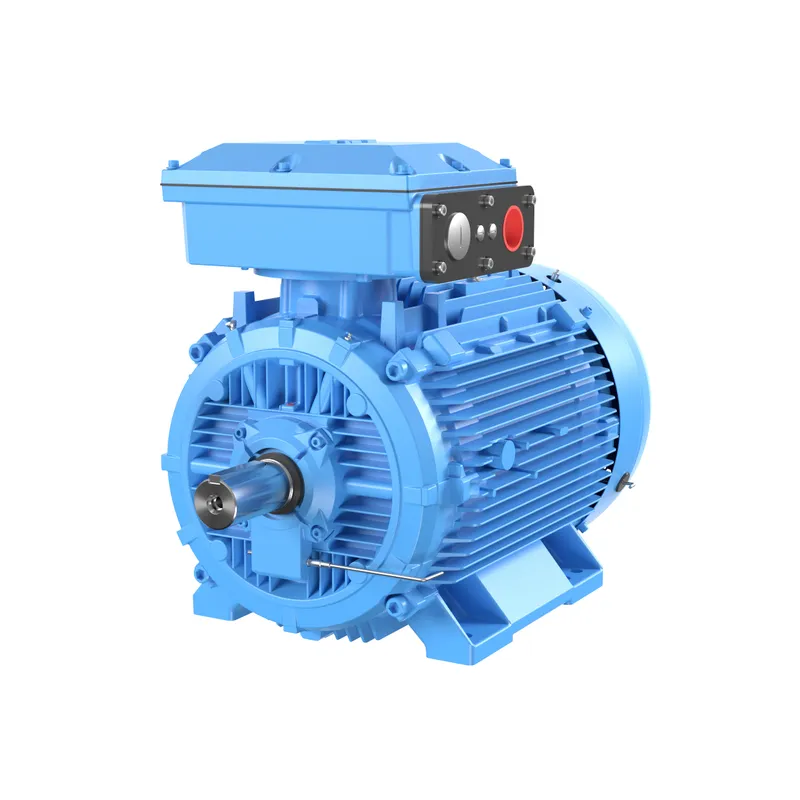

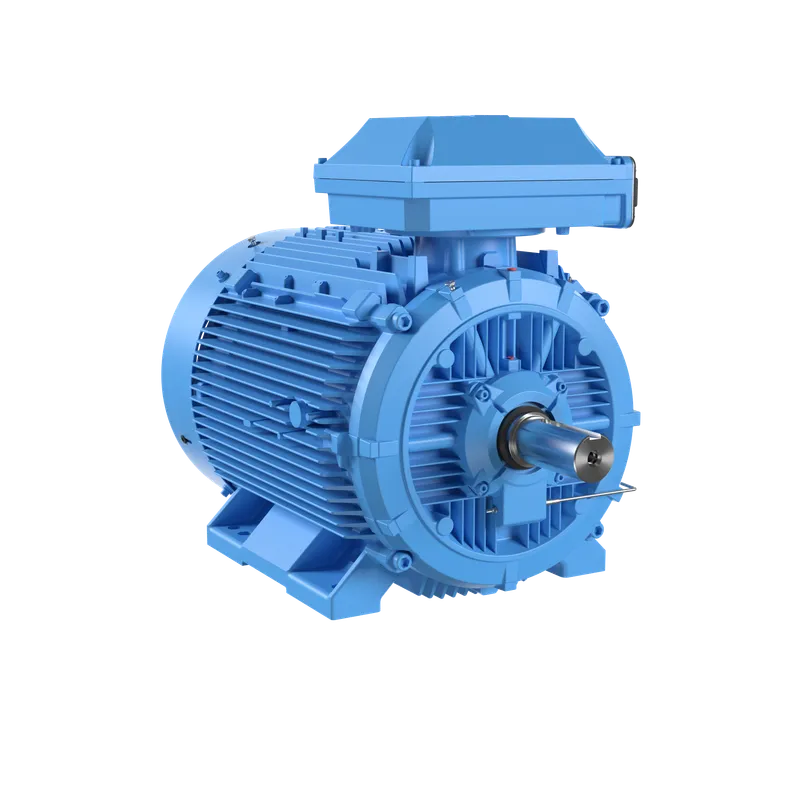

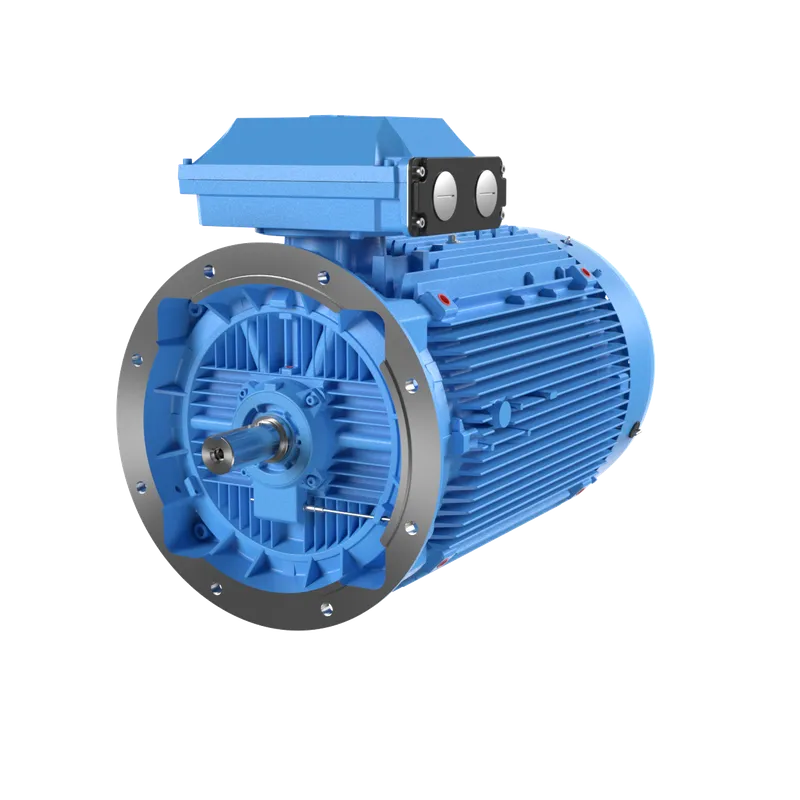

ABB 3GGP316410-BDG

M3GP 315MLA 12

MPN: 3GGP316410-BDG
Category: Flameproof IEC Low voltage motors

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare ABB parts? We buy surplus →

What is the ABB 3GGP316410-BDG?

M3GP 315MLA 12

Specifications

Ordering

ABB Type Designation	M3GP 315MLA 12
Invoice Description	M3GP 315MLA 12
Product Name	3-Phase squirrel cage motor
Product Type	3GP2__M3GP_IE2_CI
Country or Territory of Origin	Finland
Customs Tariff Number	85015290

Electrical

Temperature Class Default	T3
Altitude	1000 m m
Ambient Temperature	40 °C
IC Class	IC411
IP Class	IP55
Insulation Class	ICLF
Number of Poles (High)	12
Two Speed Motor	No
Type of Duty	S1
Voltage Code	D
EX-Protection	Exec
Gas Group	IIC

Mechanical

Frame Material	Cast Iron
Frame Size	315
Bearing	6319/C3
Bearing NDE	6316/C3
IM Class	IMB5 IM3001

Dimensions

Product Net Weight	1150 kg kg
Gross Weight	1170 kg kg

Environmental

WEEE Category

4. Large Equipment (Any External Dimension More Than 50 cm) cm

External Classifications and Standards

UNSPSC

26101100
