Home / ABB / Flameproof IEC Low voltage motors / ABB 3GGP282220-AFG

ABB

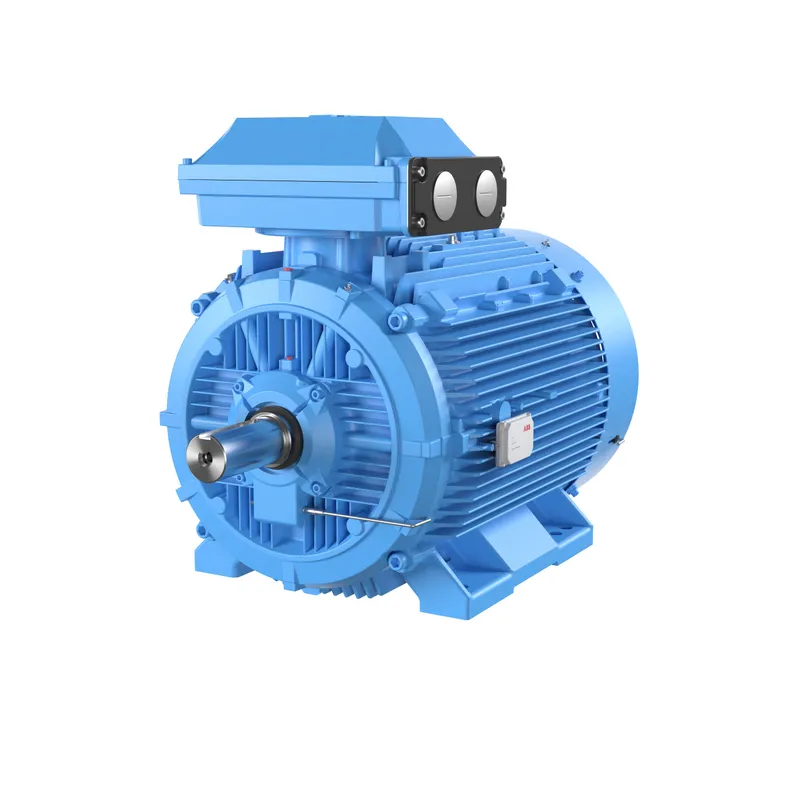

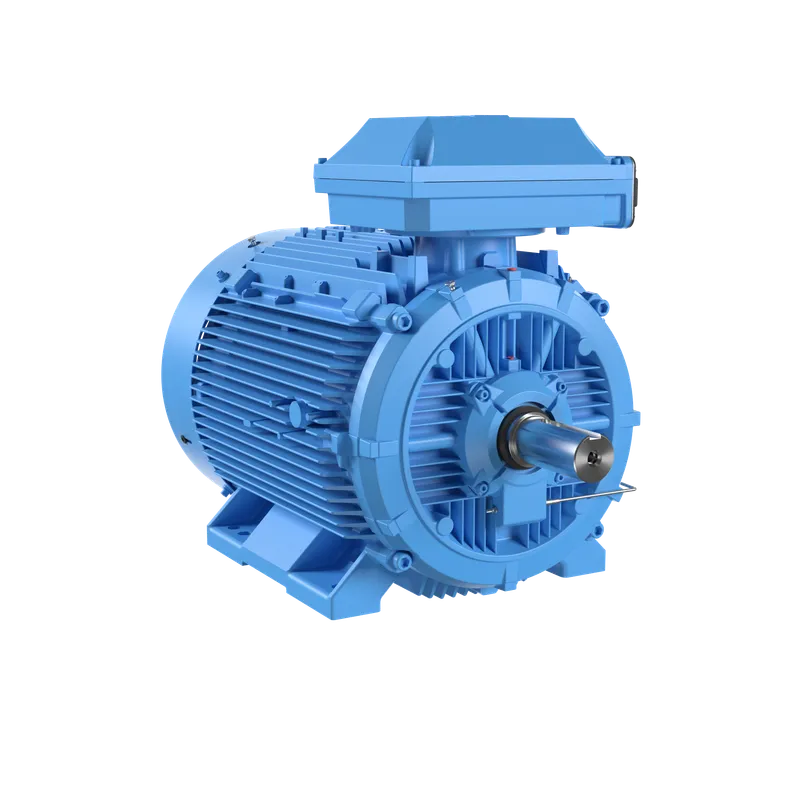

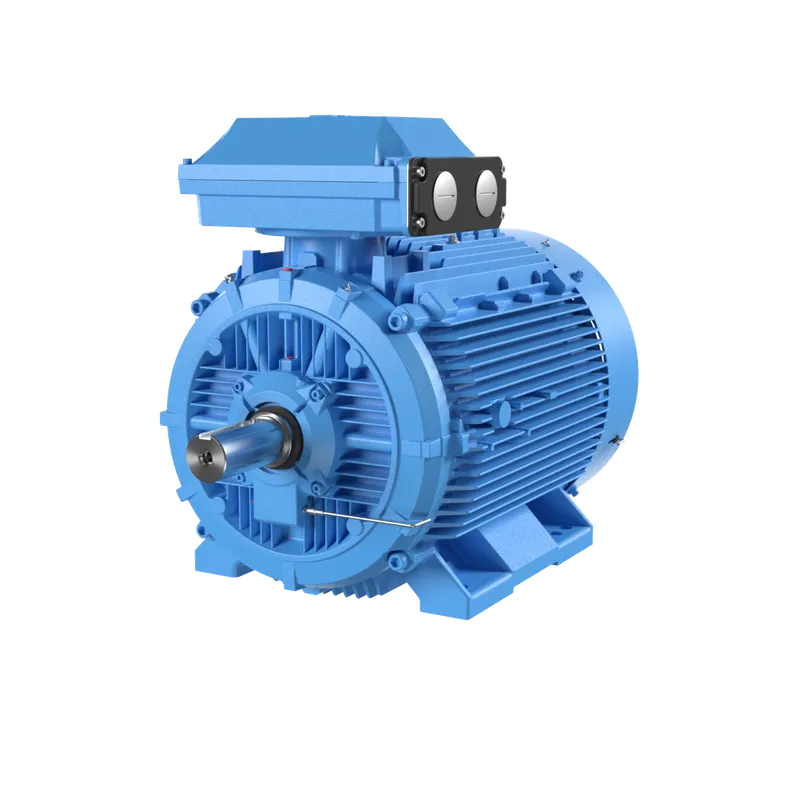

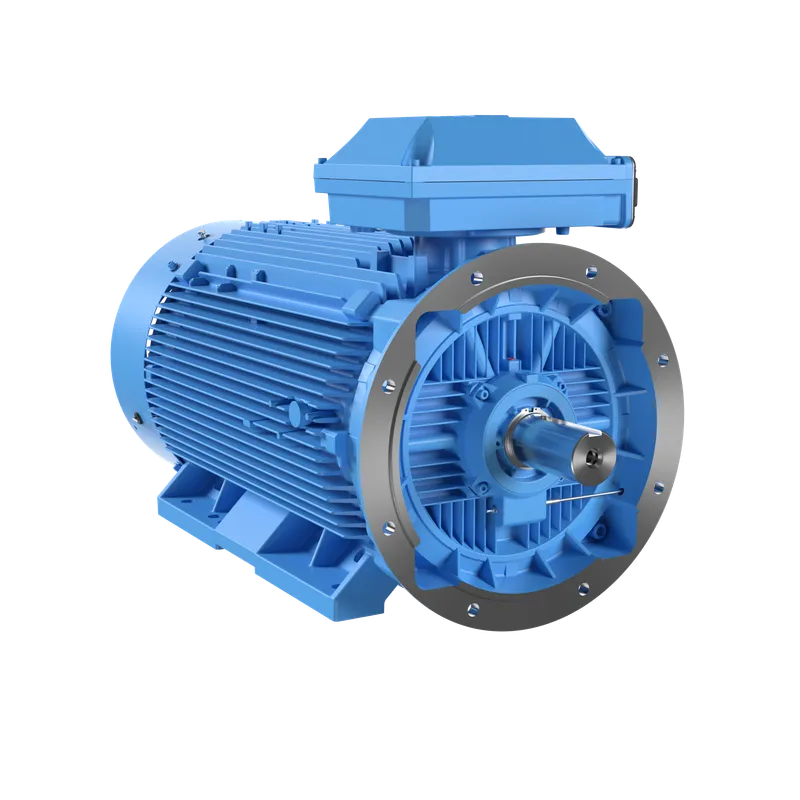

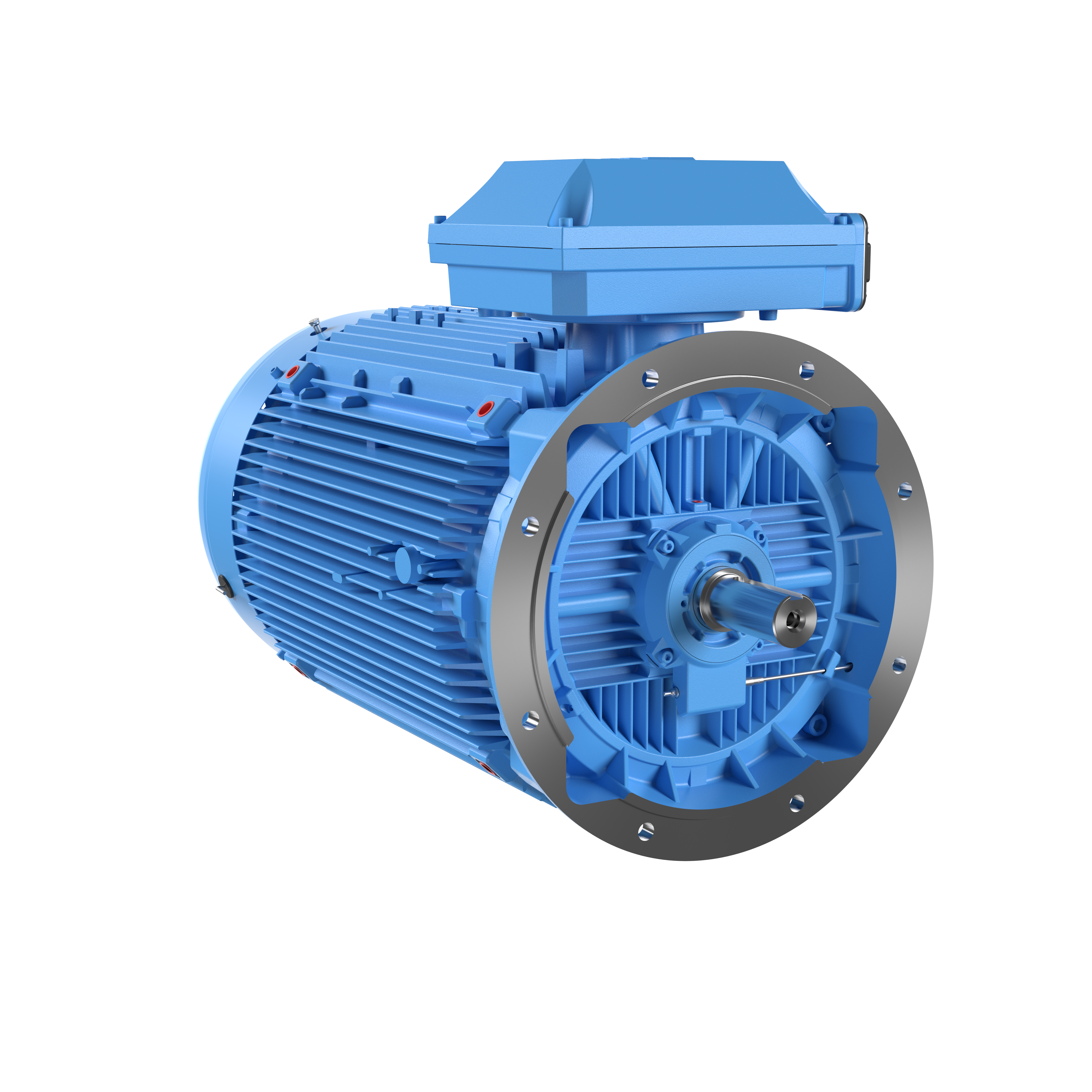

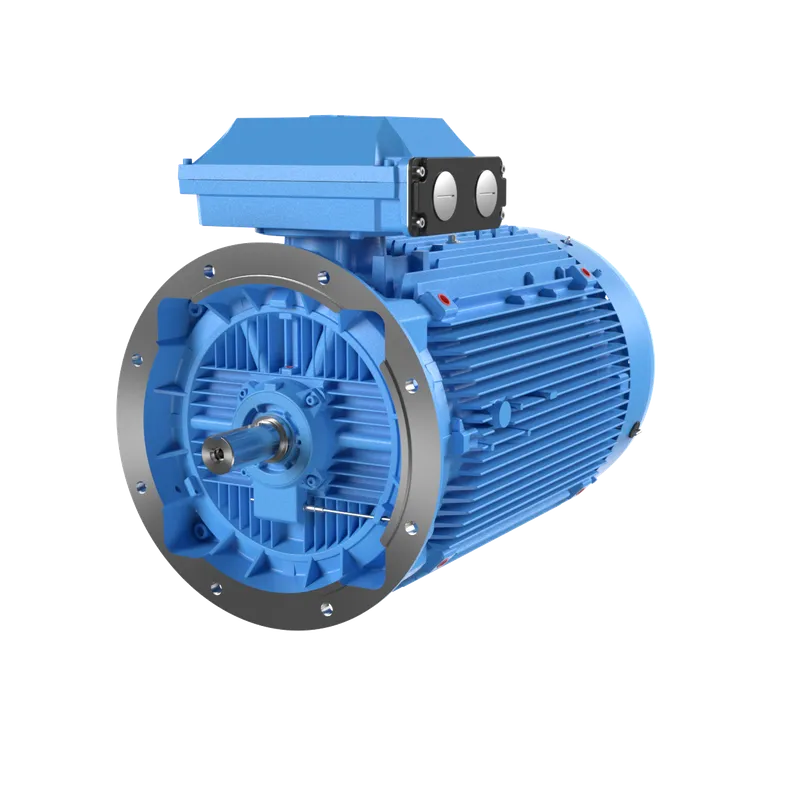

ABB 3GGP282220-AFG

M3GP 280SMB 4

MPN: 3GGP282220-AFG
Category: Flameproof IEC Low voltage motors

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare ABB parts? We buy surplus →

What is the ABB 3GGP282220-AFG?

M3GP 280SMB 4

Specifications

Ordering

ABB Type Designation	M3GP 280SMB 4
Invoice Description	M3GP 280SMB 4
Product Name	3-Phase squirrel cage motor
Product Type	3GP2__M3GP_IE2_CI
Country or Territory of Origin	Finland
Customs Tariff Number	85015381

Electrical

Temperature Class Default	T3
Altitude	1000 m m
Ambient Temperature	40 °C
IC Class	IC411
IE Class Data (50 Hz)	IE Class IE2, Full Load (100%) 94.0 %, Partial Load (75%) 94.0 %, Partial Load (50%) 94.0 %
IP Class	IP55
Insulation Class	ICLF
Number of Poles (High)	4
Two Speed Motor	No
Type of Duty	S1
Voltage Code	F
EX-Protection	Exec
Gas Group	IIC

Mechanical

Frame Material	Cast Iron
Frame Size	280
Bearing	6316/C3
Bearing NDE	6316/C3
IM Class	IMB3 IM1001
Terminator Box Location	Top

Dimensions

Product Net Weight	665 kg kg
Gross Weight	685 kg kg

Environmental

WEEE Category

4. Large Equipment (Any External Dimension More Than 50 cm) cm

External Classifications and Standards

UNSPSC

26101100
