ABB

ABB 3GGP221220-BED

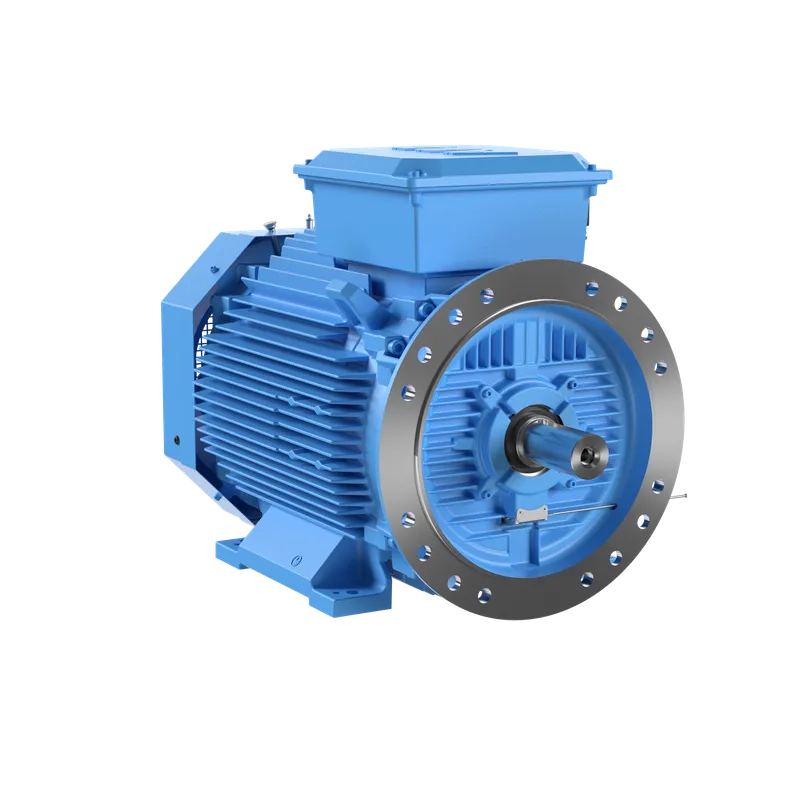

M3GP 225SMB 2

MPN: 3GGP221220-BED
Category: Flameproof IEC Low voltage motors

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare ABB parts? We buy surplus →

What is the ABB 3GGP221220-BED?

M3GP 225SMB 2

Specifications

Ordering

ABB Type Designation	M3GP 225SMB 2
Invoice Description	M3GP 225SMB 2
Product Name	3-Phase squirrel cage motor
Product Type	3GP0__M3GP_CI
Country or Territory of Origin	Finland
Customs Tariff Number	85015230
Medium Description	?kW, 2P, Frame Size 225, 3 Phases, 500V, ?Hz, IP55 Enclosure, IMB5/IM3001 Mounting (3GGP221220-BED) kW
Short Description	?kW, 2P, Frame Size 225, 3PH, 500V, ?Hz, IP55, IMB5/IM3001 kW

Electrical

Temperature Class Default	T3
Altitude	1000 m m
Ambient Temperature	40 °C
IC Class	IC411
IE Class Data (50 Hz)	IE Class IE2, Full Load (100%) 93.9 %, Partial Load (75%) 94.1 %, Partial Load (50%) 93.5 %
IP Class	IP55
Insulation Class	ICLF
Direction of Rotation	Both sides
Number of Poles (High)	2
Two Speed Motor	No
Type of Duty	S1
Voltage Code	E
EX-Protection	Exec
Gas Group	IIC

Mechanical

Frame Material	Cast Iron
Frame Size	225
Bearing	6313/C3
Bearing NDE	6212/C3
IM Class	IMB5 IM3001
Terminator Box Location	D-End top

Dimensions

Product Net Weight	357 kg kg
Gross Weight	367 kg kg

Environmental

WEEE Category

4. Large Equipment (Any External Dimension More Than 50 cm) cm

External Classifications and Standards

UNSPSC

26101100
