ABB 3GGP166420-BSD

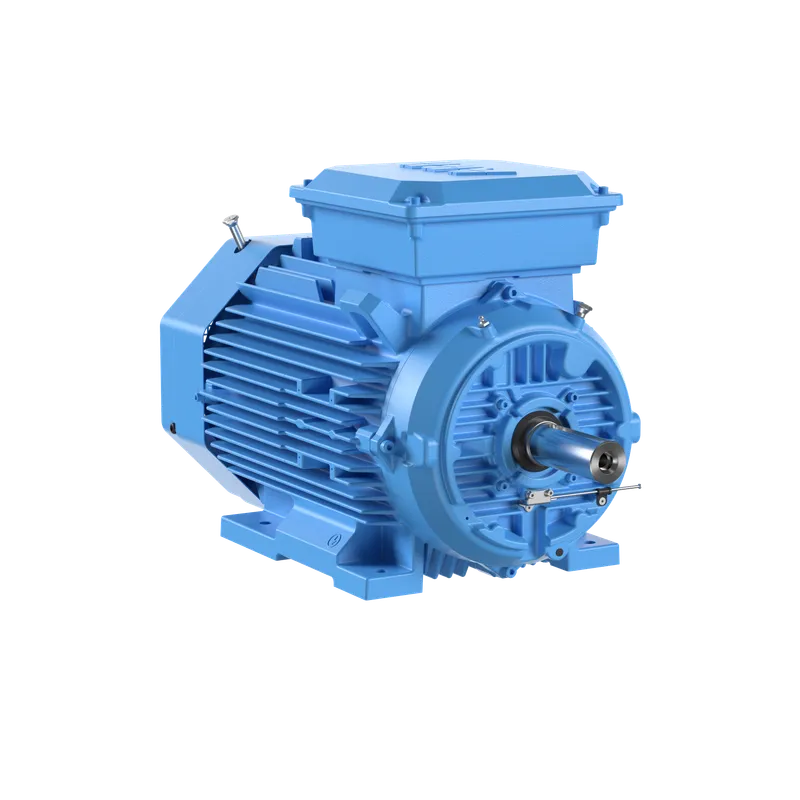

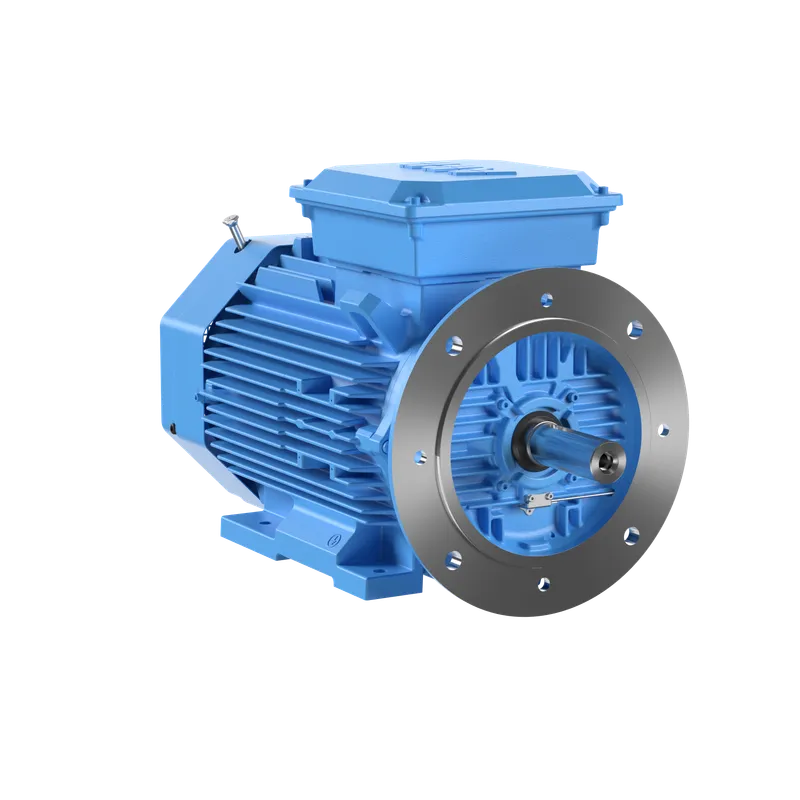

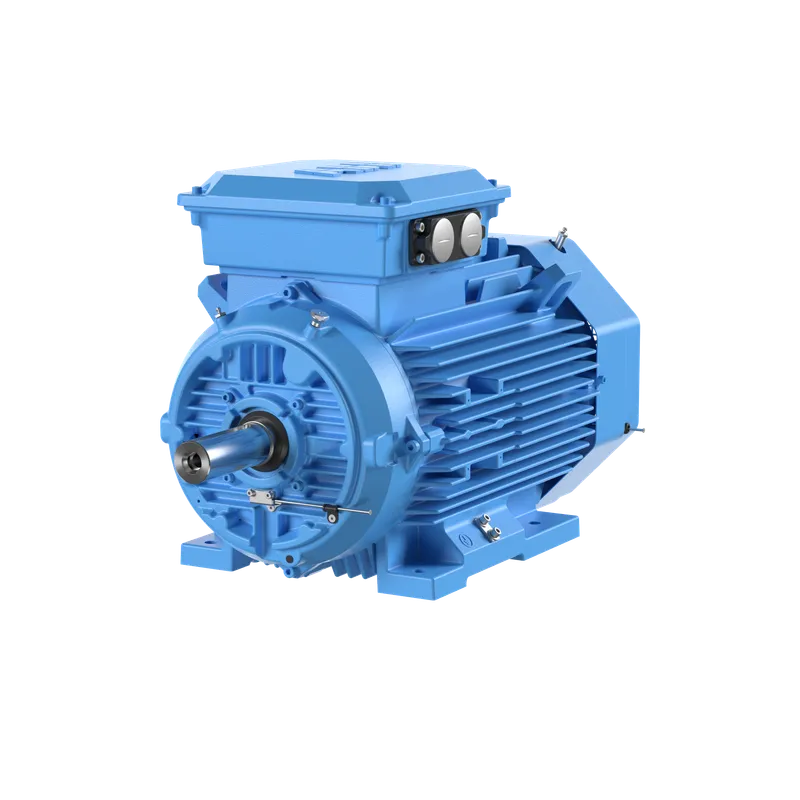

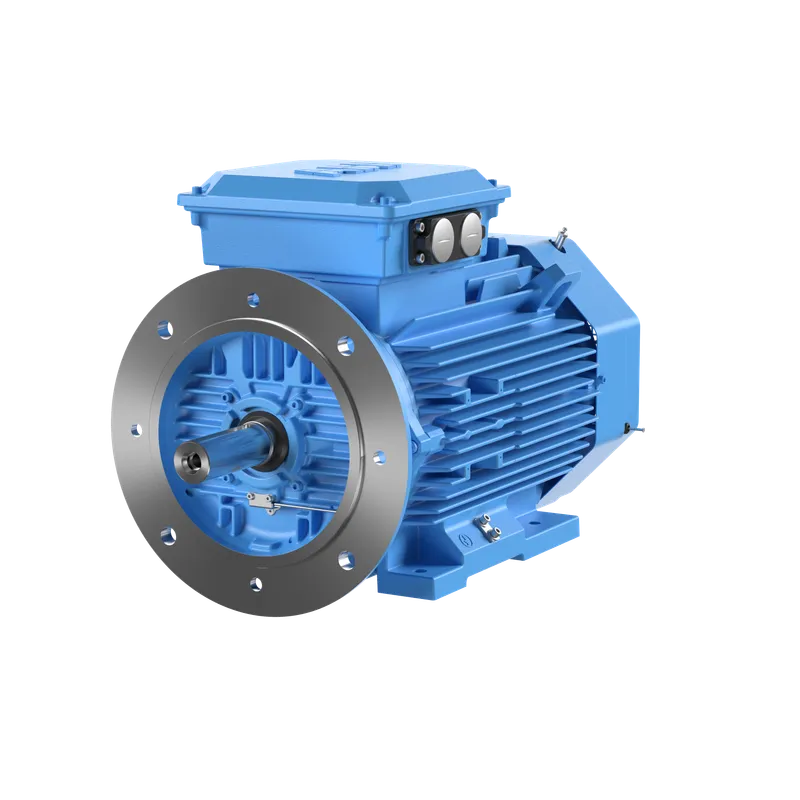

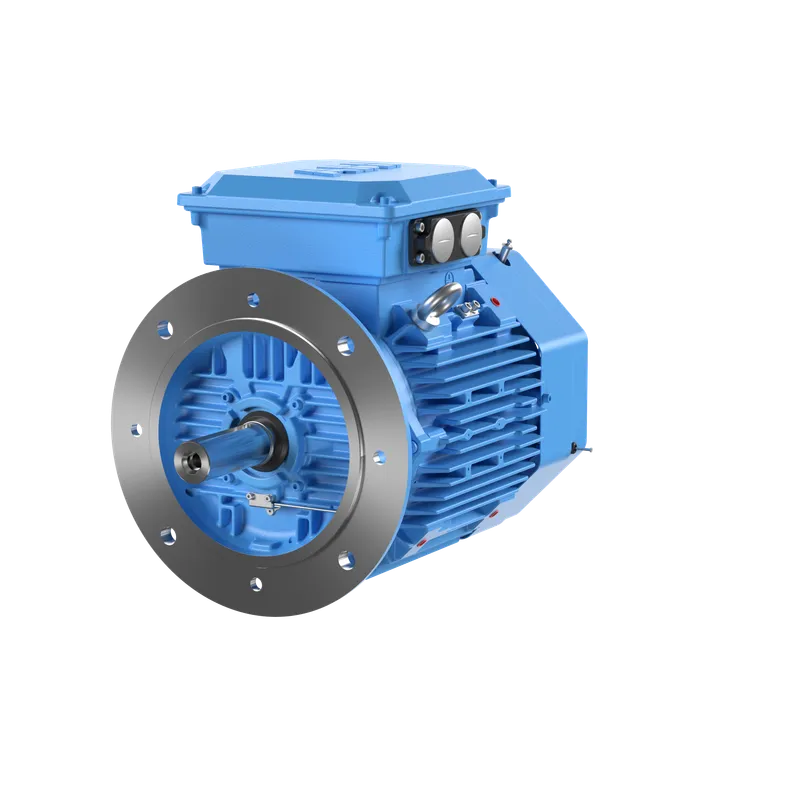

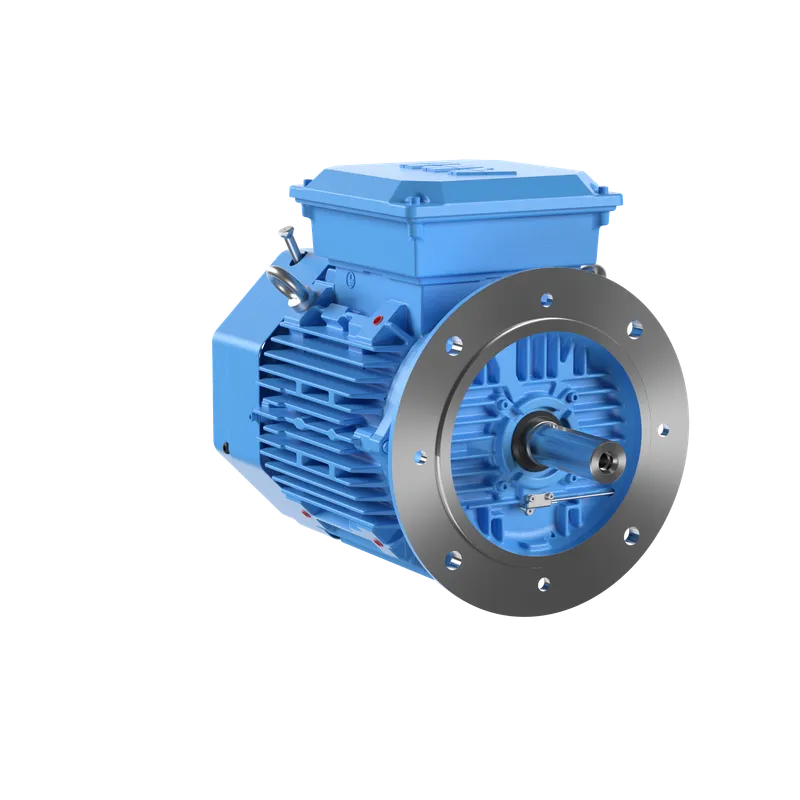

M3GP 160MLB 12
- MPN
- 3GGP166420-BSD
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the ABB 3GGP166420-BSD?
No Description Available
Specifications
Ordering
| ABB Type Designation | M3GP 160MLB 12 |
| Product Name | 3-Phase squirrel cage motor |
| Product Type | 3GP0__M3GP_CI |
| Country or Territory of Origin | Finland |
| Customs Tariff Number | 85015220 |
Electrical
| Temperature Class Default | T3 |
| IC Class | IC411 |
| IP Class | IP55 |
| Insulation Class | ICLF |
| Direction of Rotation | Both sides |
| Number of Poles (High) | 12 |
| Two Speed Motor | No |
| Voltage Code | S |
| EX-Protection | Exec |
| Gas Group | IIC |
Mechanical
| Frame Material | Cast Iron |
| Frame Size | 160 |
| Bearing | 6309/C3 |
| Bearing NDE | 6309/C3 |
| IM Class | IMB5 IM3001 |
| Terminator Box Location | Top |
Dimensions
| Product Net Weight | 245 kg kg |
| Gross Weight | 255 kg kg |
Environmental
| WEEE Category | 4. Large Equipment (Any External Dimension More Than 50 cm) cm |
External Classifications and Standards
| UNSPSC | 26101100 |
