ABB

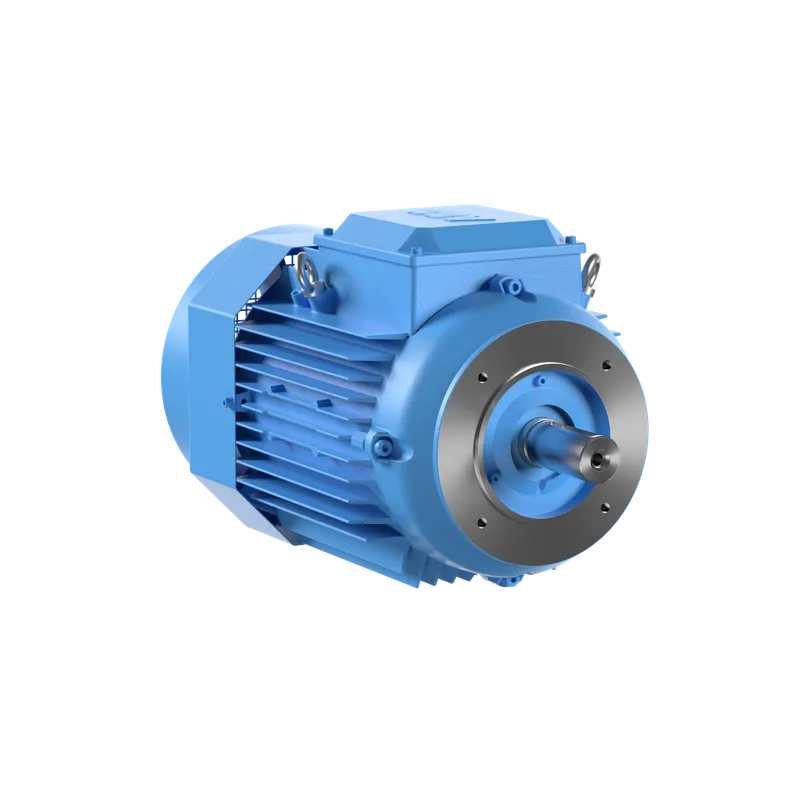

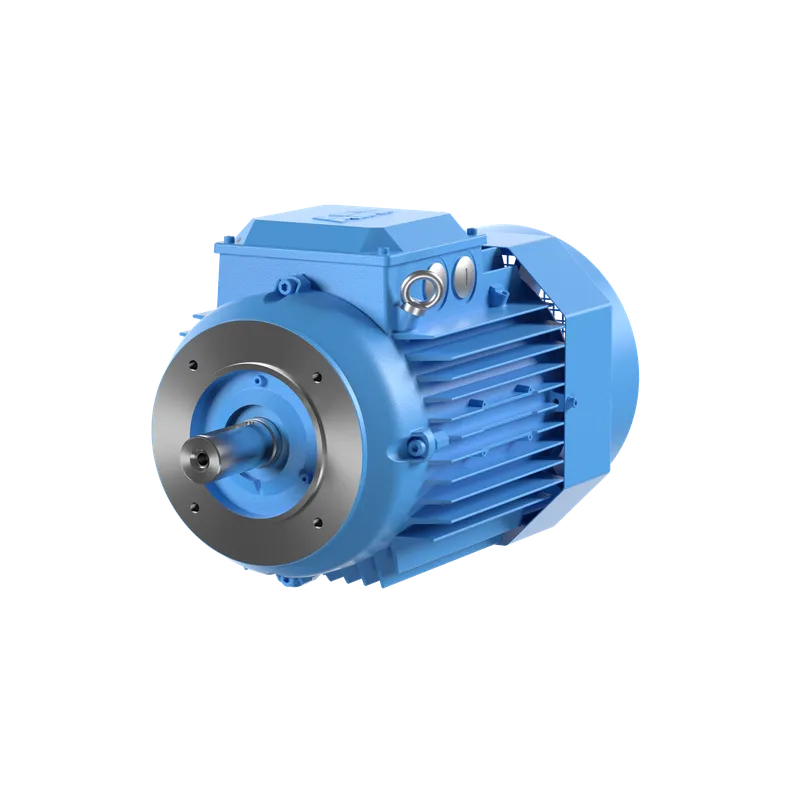

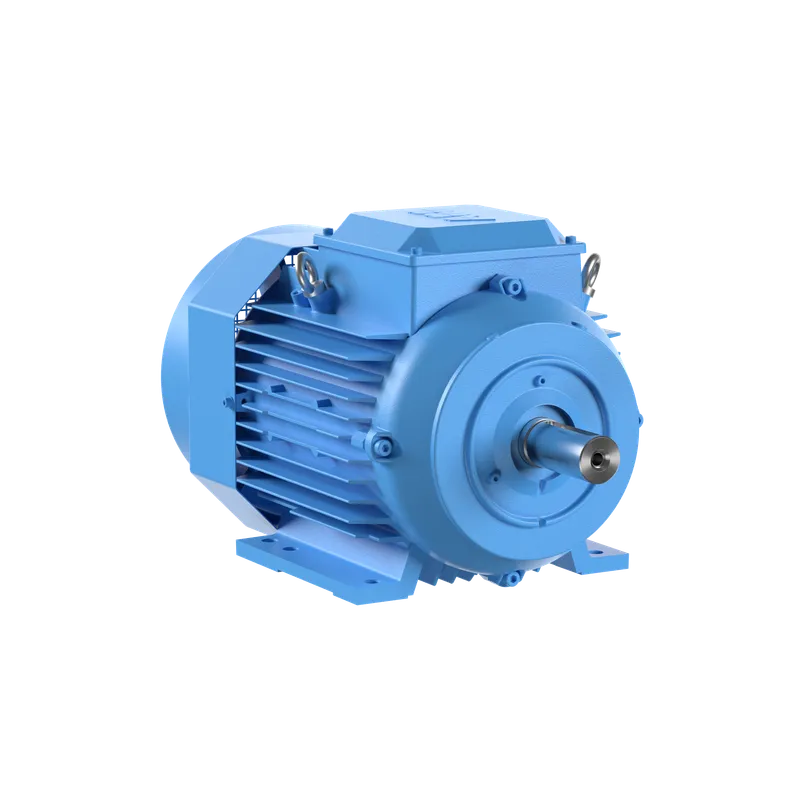

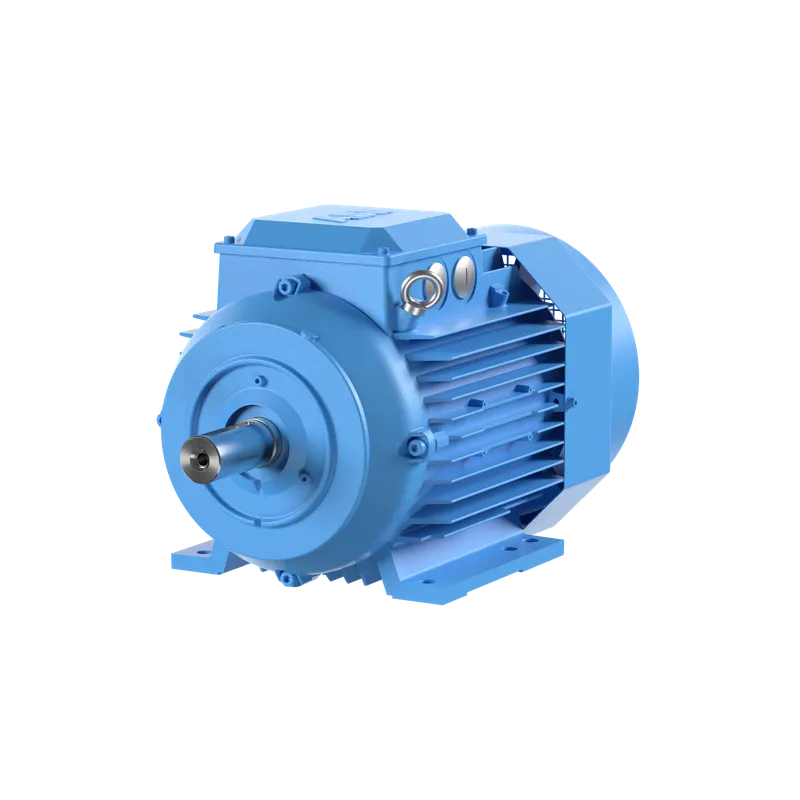

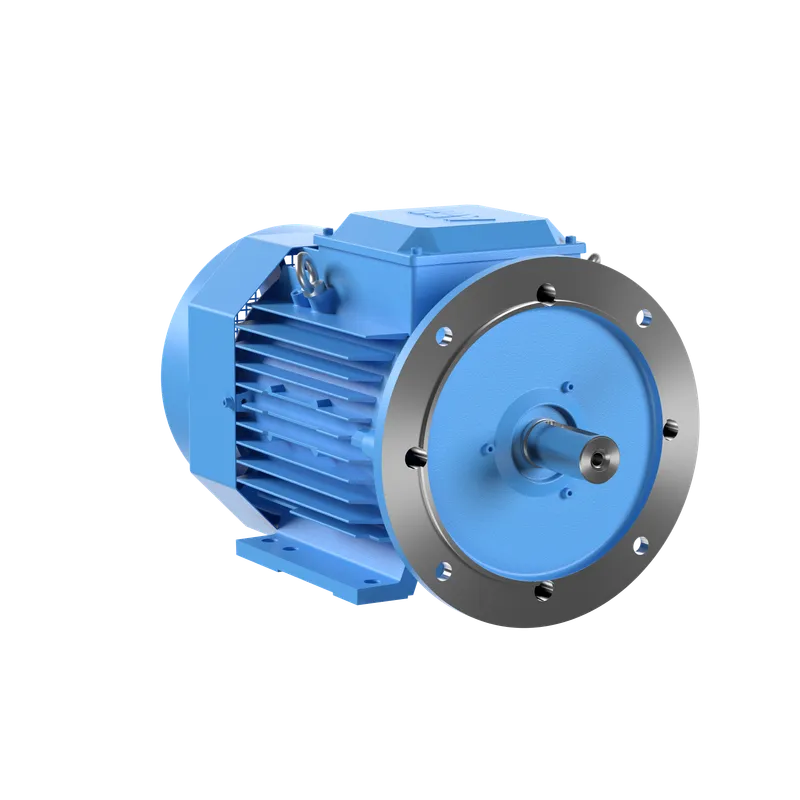

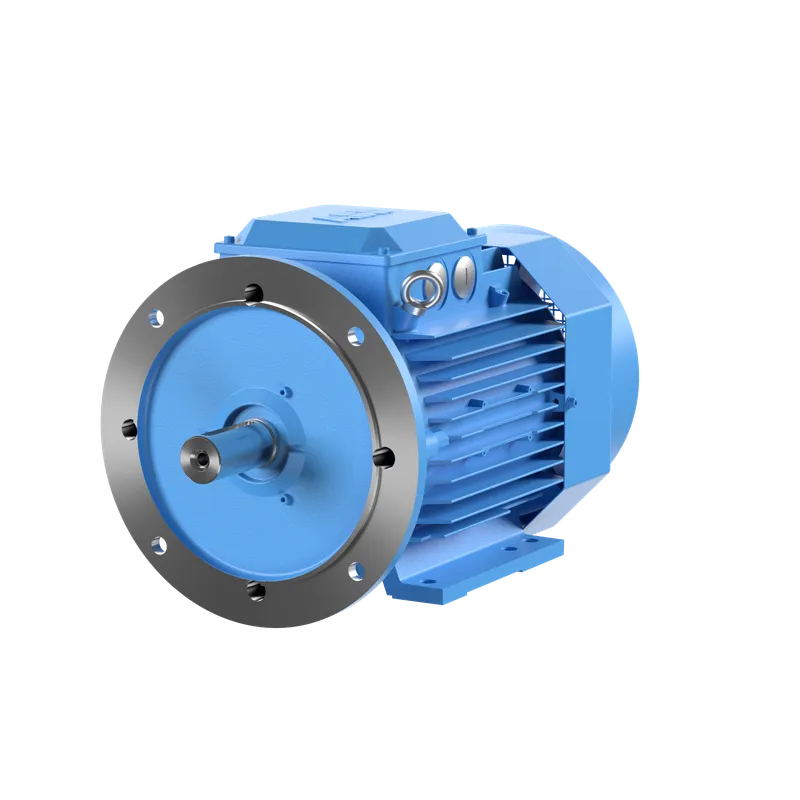

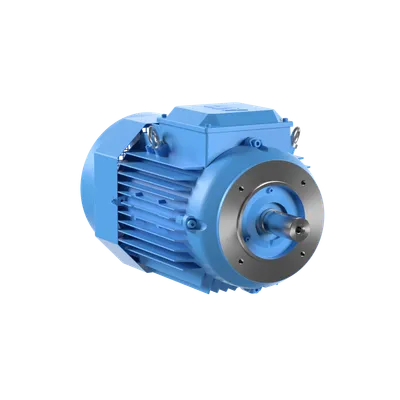

ABB 3GGP134441-JGB

M3GP 132SMA 8

MPN: 3GGP134441-JGB
Category: Flameproof IEC Low voltage motors

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the ABB 3GGP134441-JGB?

M3GP 132SMA 8

Specifications

Ordering

ABB Type Designation	M3GP 132SMA 8
Invoice Description	M3GP 132SMA 8
Product Name	3-Phase squirrel cage motor
Product Type	3GP0__M3GP_CI
Country or Territory of Origin	Finland
Customs Tariff Number	85015220

Electrical

Temperature Class Default	T3
Altitude	1000 m m
Ambient Temperature	40 °C
IC Class	IC411
IP Class	IP55
Insulation Class	ICLF
Direction of Rotation	Both sides
Number of Poles (High)	8
Two Speed Motor	No
Type of Duty	S1
Voltage Code	G G
EX-Protection	ExnA
Gas Group	IIC

Mechanical

Frame Material	Cast Iron
Frame Size	132
Bearing	6208-2Z/C3
Bearing NDE	6208-2Z/C3
Lubrication	For life
IM Class	IMB34 IM2101
Terminator Box Location	D-End top

Dimensions

Product Net Weight	70 kg kg
Gross Weight	73 kg kg

Environmental

WEEE Category

5. Small Equipment (No External Dimension More Than 50 cm) cm

External Classifications and Standards

Standards	IEC 60034-1
UNSPSC	26101100
EAN	3GGP134441-JGB

3GGP134441-JGB: frequently asked questions

When can 3GGP134441-JGB be shipped?

3GGP134441-JGB is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 3GGP134441-JGB in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 3GGP134441-JGB and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 3GGP134441-JGB, subject to availability and destination.
