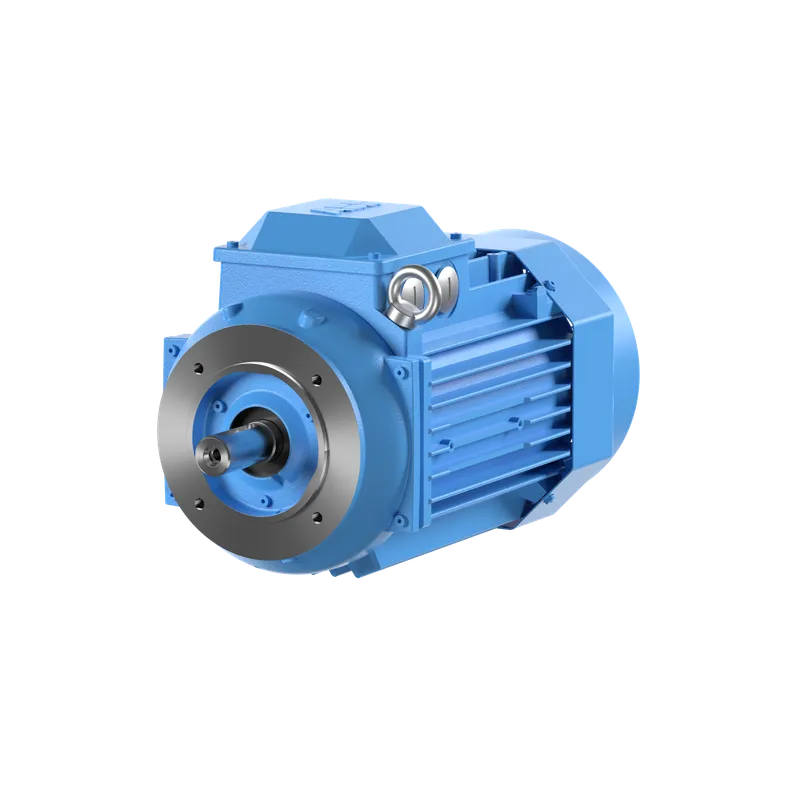

What is the ABB 3GGP102420-ASL?

(3GGP102420-ASL)

Specifications

Ordering

ABB Type Designation	M3GP 100MLB 4
Invoice Description	M3GP 100MLB 4
Product Name	3-Phase squirrel cage motor
Product Type	5GP3 M3GP CI
Country or Territory of Origin	Finland
Customs Tariff Number	85015220

Electrical

Temperature Class Default	T3
Altitude	1000 m m
Ambient Temperature	40 °C
IC Class	IC411
IE Class Data (50 Hz)	IE Class IE3, Full Load (100%) 87.7 %, Partial Load (75%) 88.4 %, Partial Load (50%) 87.6 %
IE Class Data (60 Hz)	IE Class IE2, Full Load (100%) 87.5 %, Partial Load (75%) 88.1 %, Partial Load (50%) 87.3 %
IP Class	IP55
Insulation Class	ICLF
Direction of Rotation	Both sides
Number of Poles (High)	4
Two Speed Motor	No
Type of Duty	S1
Voltage Code	S
EX-Protection	Exec
Gas Group	IIC

Mechanical

Frame Material	Cast Iron
Frame Size	100
Bearing	6206-2Z/C3
Bearing NDE	6205-2Z/C3
IM Class	IMB3 IM1001
Terminator Box Location	D-End top

Dimensions

Product Net Weight	42 kg kg
Gross Weight	47 kg kg

Environmental

WEEE Category

5. Small Equipment (No External Dimension More Than 50 cm) cm

External Classifications and Standards

UNSPSC

26101100
