ABB

ABB 3GGP082444-JGB

MPN: 3GGP082444-JGB
Category: Flameproof IEC Low voltage motors

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the ABB 3GGP082444-JGB?

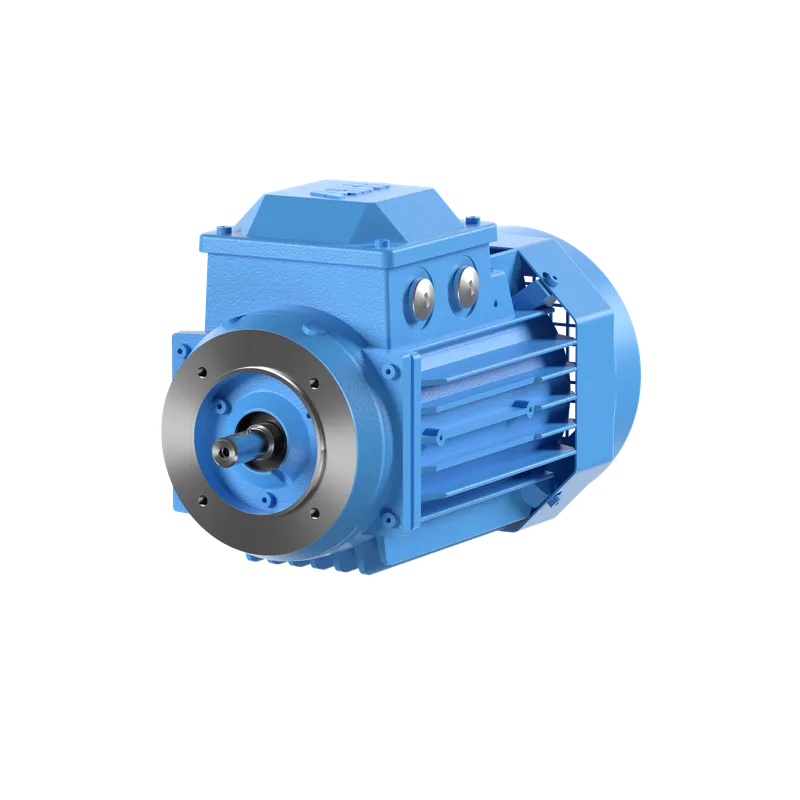

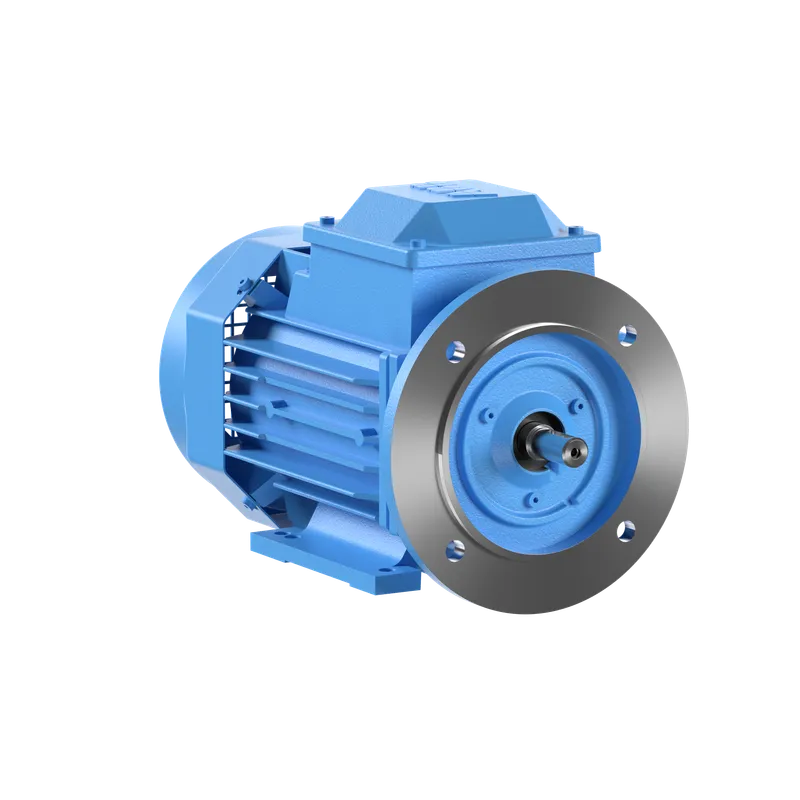

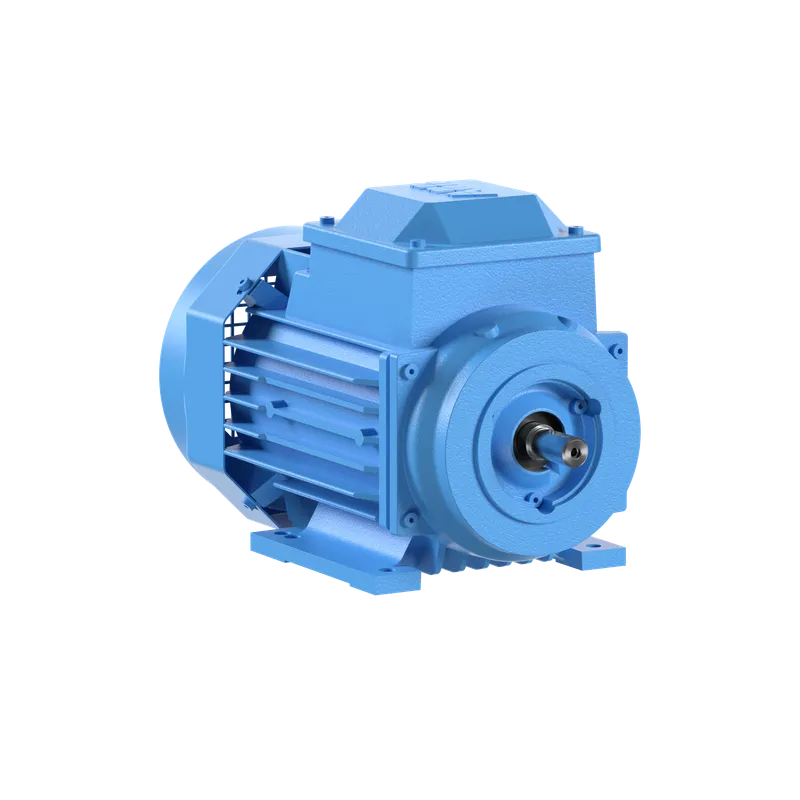

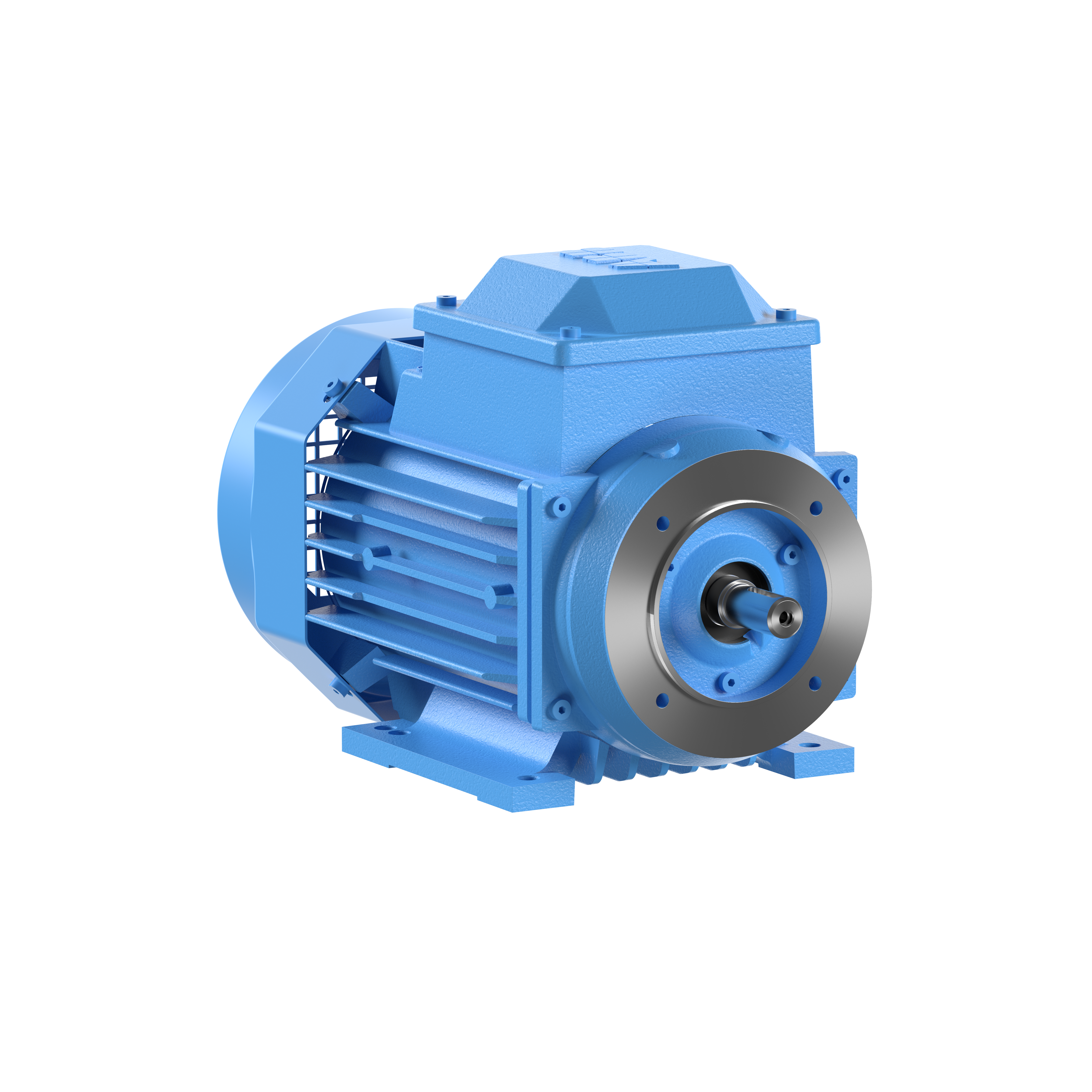

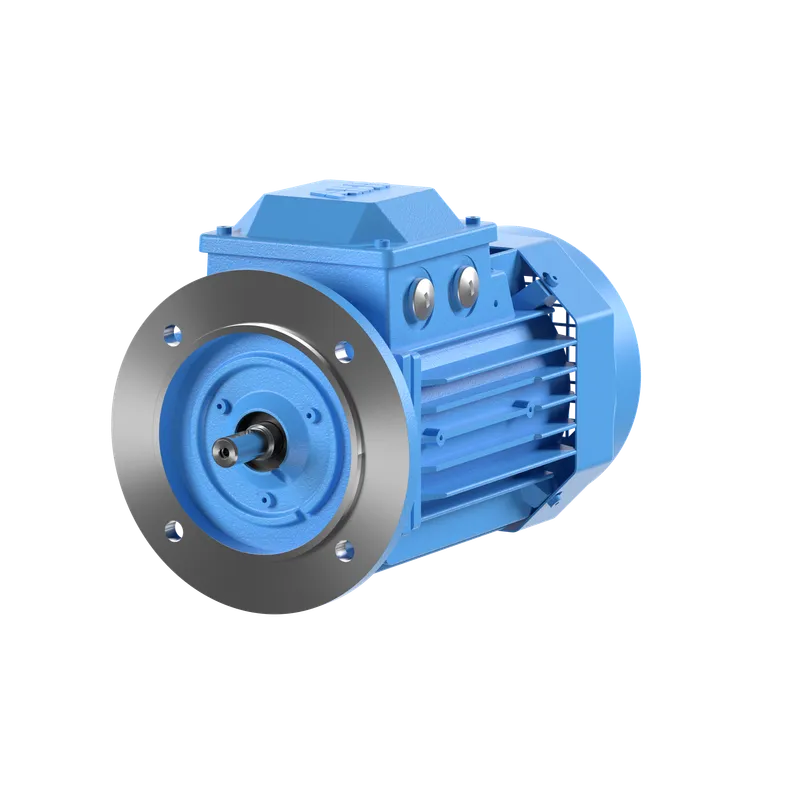

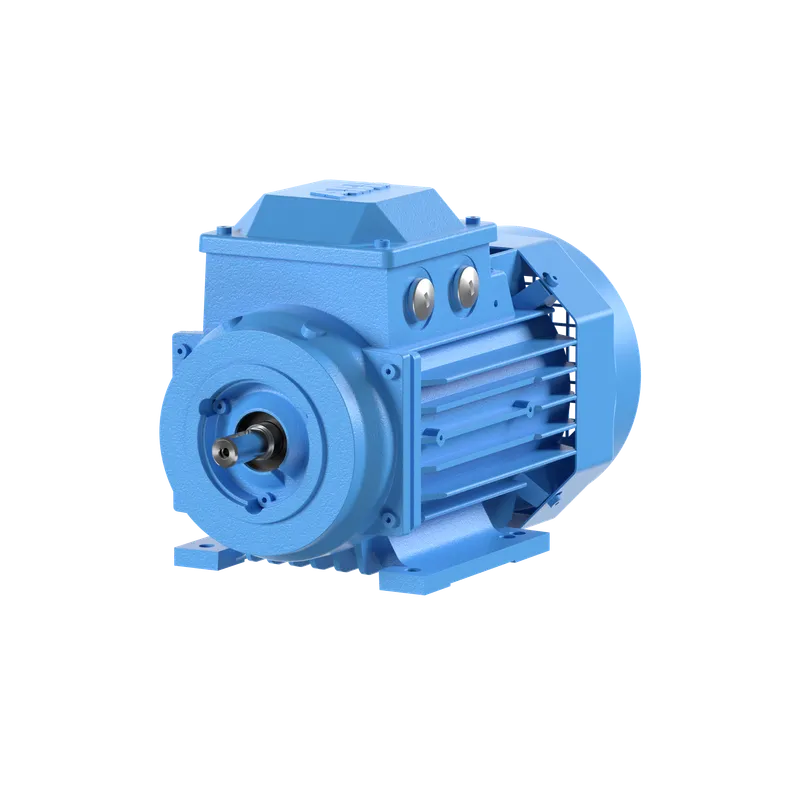

M3GP 80MD 4

Specifications

Ordering

ABB Type Designation	M3GP 80MD 4
Invoice Description	M3GP 80MD 4
Product Name	3-Phase squirrel cage motor
Product Type	3GP0__M3GP_CI
Country or Territory of Origin	Finland
Customs Tariff Number	85015220

Electrical

Temperature Class Default	T3
Altitude	1000 m m
Ambient Temperature	40 °C
IC Class	IC411
IE Class Data (50 Hz)	IE Class IE2, Full Load (100%) 80.5 %, Partial Load (75%) 79.6 %, Partial Load (50%) 75.8 %
IP Class	IP55
Insulation Class	ICLF
Direction of Rotation	Both sides
Number of Poles (High)	4
Two Speed Motor	No
Type of Duty	S1
Voltage Code	G G
EX-Protection	ExnA
Gas Group	IIC

Mechanical

Frame Material	Cast Iron
Frame Size	80
Bearing	6204-2Z/C3
Bearing NDE	6203-2Z/C3
Lubrication	For life
IM Class	IMB34 IM2101
Terminator Box Location	D-End top

Dimensions

Product Net Weight	17 kg kg
Gross Weight	17.5 kg kg

Environmental

WEEE Category

5. Small Equipment (No External Dimension More Than 50 cm) cm

External Classifications and Standards

Standards	IEC 60034-1
UNSPSC	26101100
EAN	3GGP082444-JGB
