ABB 3GGP071321-CFB
- MPN
- 3GGP071321-CFB
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the ABB 3GGP071321-CFB?

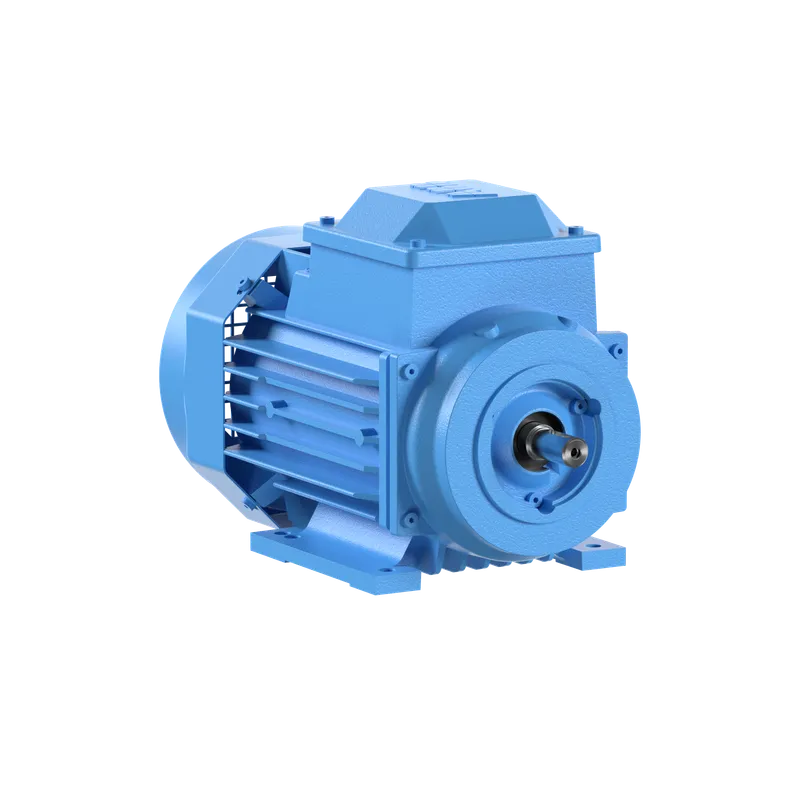

M3GP 71MA 2
Specifications
Ordering
| ABB Type Designation | M3GP 71MA 2 |
| Invoice Description | M3GP 71MA 2 |
| Product Name | 3-Phase squirrel cage motor |
| Product Type | 3GP0__M3GP_CI |
| Country or Territory of Origin | Finland |
| Customs Tariff Number | 85015100 |
Electrical
| Temperature Class Default | T3 |
| Altitude | 1000 m m |
| Ambient Temperature | 40 °C |
| IC Class | IC411 |
| IP Class | IP55 |
| Insulation Class | ICLF |
| Direction of Rotation | Both sides |
| Number of Poles (High) | 2 |
| Two Speed Motor | No |
| Type of Duty | S1 |
| Voltage Code | F |
| EX-Protection | ExnA |
| Gas Group | IIC |
Mechanical
| Frame Material | Cast Iron |
| Frame Size | 71 |
| Bearing | 6203-2Z/C3 |
| Bearing NDE | 6202-2Z/C3 |
| Lubrication | For life |
| IM Class | IMB34 IM2101 |
Dimensions
| Product Net Weight | 11 kg kg |
| Gross Weight | 11.5 kg kg |
Environmental
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) cm |
External Classifications and Standards
| Standards | IEC 60034-1 |
| UNSPSC | 26101100 |
3GGP071321-CFB: frequently asked questions
When can 3GGP071321-CFB be shipped?
3GGP071321-CFB is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 3GGP071321-CFB in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 3GGP071321-CFB and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 3GGP071321-CFB, subject to availability and destination.
