ABB 3GGL132227-AFC

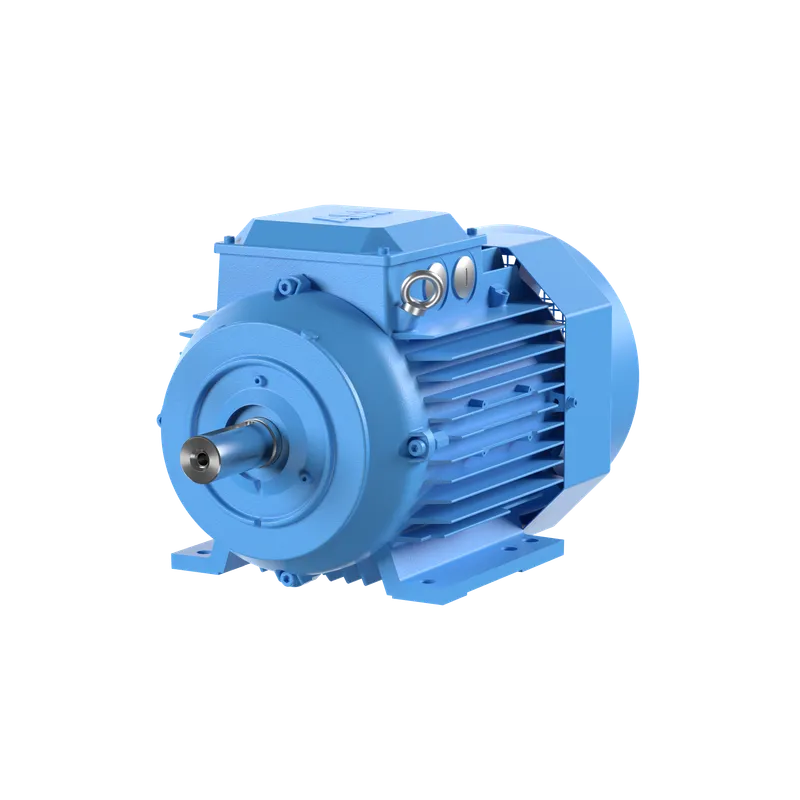

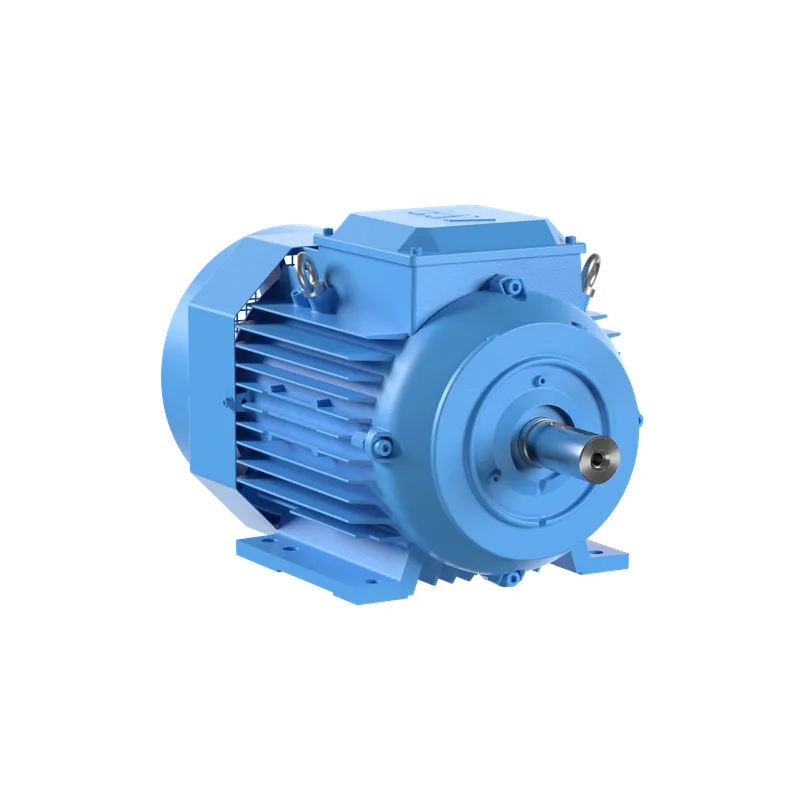

M3GL 132SMB 4

MPN: 3GGL132227-AFC
Category: Flameproof IEC Low voltage motors

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare ABB parts? We buy surplus →

What is the ABB 3GGL132227-AFC?

Increased Safety IE5 Ex ec SynRM Motors, 7.5 kW, 500 V (3GGL132227-AFC)

Specifications

Ordering

ABB Type Designation	M3GL 132SMB 4
Invoice Description	M3GL 132SMB 4
Product Name	3Phase Synchronous reluctance motor
Product Type	3GL5__M3GL_IE5_SynRM_Ex
Country or Territory of Origin	Finland
Customs Tariff Number	85015220
Medium Description	7.5kW, 4P, Frame Size 132, 3 Phases, 500V, 50Hz, IP55 Enclosure, IMB3/IM1001 Mounting (3GGL132227-AFC)
Short Description	7.5kW, 4P, Frame Size 132, 3PH, 500V, 50Hz, IP55, IMB3/IM1001

Electrical

Connection Configuration	Y
Temperature Class Default	T3
Input Voltage (Uin)	500 V V
Frequency (f)	50 Hz Hz
Motor Operational Voltage	470 V V
Operating Frequency (fsw)	100.000 Hz Hz
Output Power	7.5 kW kW
Altitude	1000 m m
Ambient Temperature	40 °C
IC Class	IC411
IE Class Data (50 Hz)	IE Class IE5, Full Load (100%) 92.4 %, Partial Load (75%) 91.9 %, Partial Load (50%) 90.1 %
IP Class	IP55
Insulation Class	ICLF
Direction of Rotation	Both sides
Number of Poles (High)	4
Two Speed Motor	No
Type of Duty	S9
Voltage Code	F
EX-Protection	Exec
Gas Group	IIC

Mechanical

Frame Material	Cast Iron
Frame Size	132
Bearing	6308-2Z/C3
Bearing NDE	6206-2Z/C3
IM Class	IMB3 IM1001
Terminator Box Location	D-End top

Dimensions

Product Net Depth / Length	624 mm mm
Product Net Height	321 mm mm
Product Net Width	262 mm mm
Product Net Weight	63 kg kg
Gross Weight	68 kg kg

Environmental

WEEE Category

4. Large Equipment (Any External Dimension More Than 50 cm) cm

External Classifications and Standards

UNSPSC

26101100
