ABB 3GFT282714-AUB

MPN: 3GFT282714-AUB
Category: Flameproof IEC Low voltage motors

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare ABB parts? We buy surplus →

What is the ABB 3GFT282714-AUB?

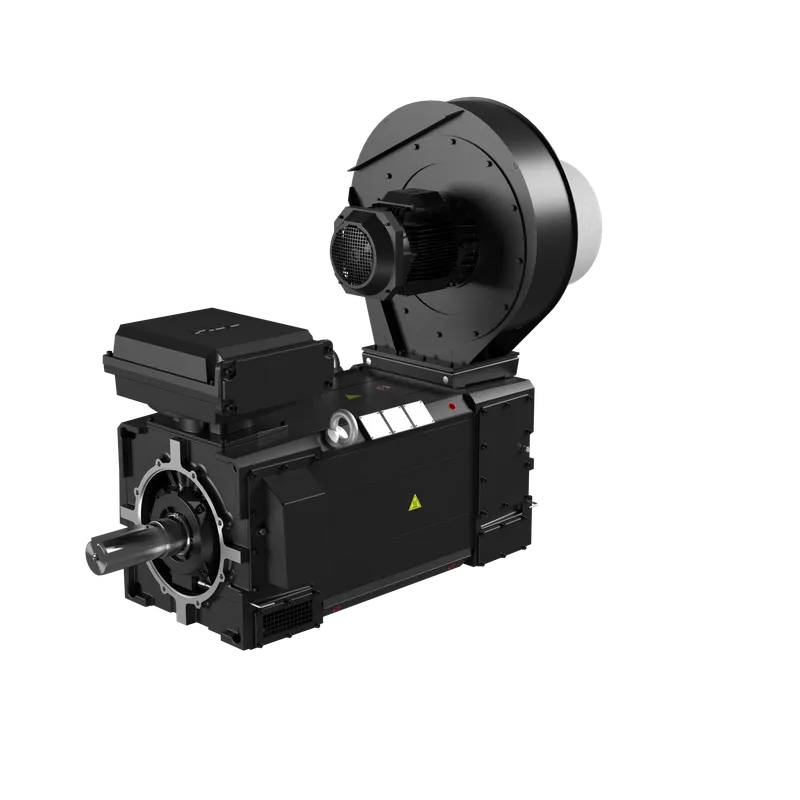

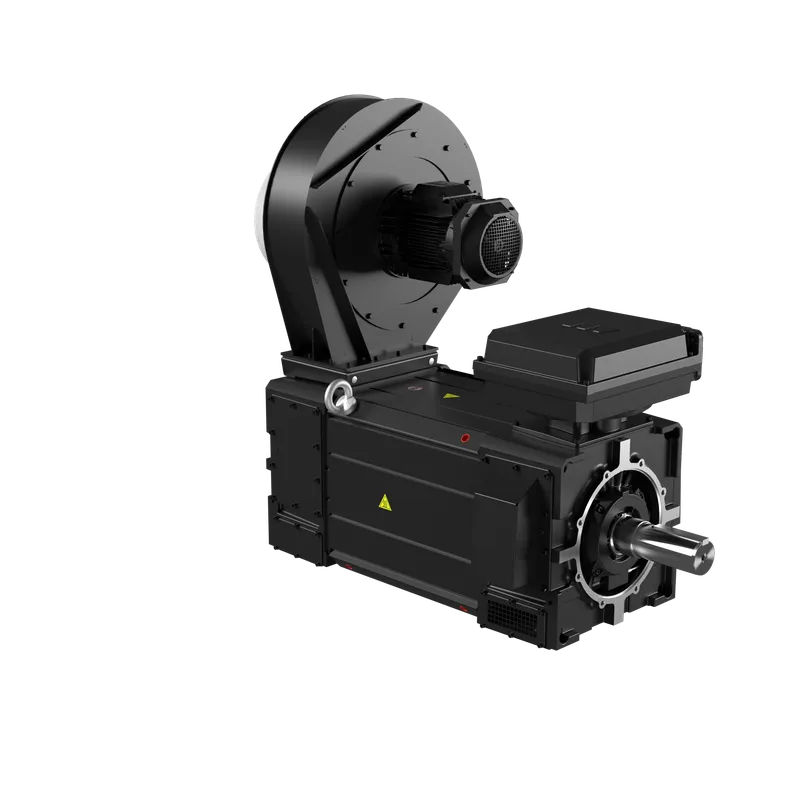

HDP Induction Motors, 650 kW, 690 V (3GFT282714-AUB)

Specifications

Ordering

ABB Type Designation	M3FT 280A 4
Invoice Description	M3FT 280A 4
Product Name	High dynamic performance motors
Product Type	3FTB__M3FT__HDP__IP23_
Country or Territory of Origin	Finland, China
Customs Tariff Number	85015394
Medium Description	650kW, 4P, Frame Size 280, 3 Phases, 690V, 60Hz, IP55 Enclosure, IMB3/IM1001 Mounting (3GFT282714-AUB)
Short Description	650kW, 4P, Frame Size 280, 3PH, 690V, 60Hz, IP55, IMB3/IM1001

Electrical

Connection Configuration	D
Temperature Class Default	--
Input Voltage (Uin)	690 V V
Frequency (f)	60 Hz Hz
Motor Operational Voltage	640 V V
Operating Frequency (fsw)	67.300 Hz Hz
Output Power	650 kW kW
Altitude	1000 m m
Ambient Temperature	40 °C
IC Class	IC06
IE Class Data (60 Hz)	IE Class IE3, Full Load (100%) 96.0 %, Partial Load (75%) 96.7 %, Partial Load (50%) 97.1 %
IP Class	IP23
Insulation Class	ICLH
Direction of Rotation	Both sides
Number of Poles (High)	4
Two Speed Motor	No
Type of Duty	S9
Voltage Code	U

Mechanical

Frame Material	Welded Steel
Frame Size	280
Bearing	6322/C3
Bearing NDE	6316/C3VL0241
IM Class	IMB3 IM1001
Terminator Box Location	D-End top

Dimensions

Product Net Depth / Length	1610 mm mm
Product Net Height	1445 mm mm
Product Net Width	787 mm mm
Product Net Weight	1750 kg kg
Gross Weight	1770 kg kg

Environmental

WEEE Category

4. Large Equipment (Any External Dimension More Than 50 cm) cm

External Classifications and Standards

UNSPSC

26101100
