ABB 3GFT162731-SDB

MPN: 3GFT162731-SDB
Category: Flameproof IEC Low voltage motors

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare ABB parts? We buy surplus →

What is the ABB 3GFT162731-SDB?

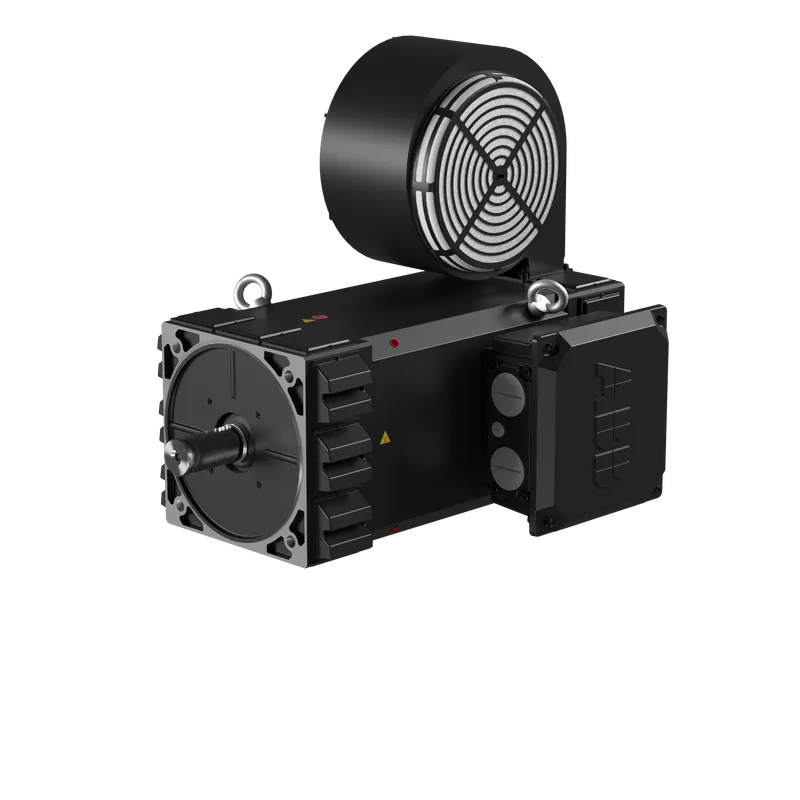

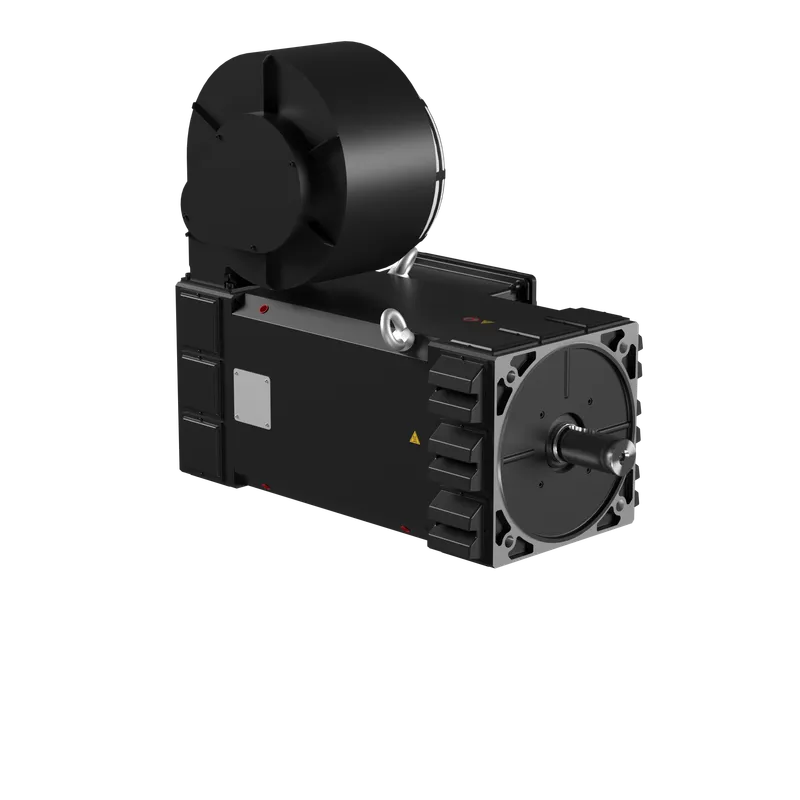

HDP Induction Motors, 49 kW, 400 V (3GFT162731-SDB)

Specifications

Ordering

ABB Type Designation	M3FT 160C 4
Invoice Description	M3FT 160C 4
Product Name	High dynamic performance motors
Product Type	3FTB__M3FT__HDP__IP23_
Country or Territory of Origin	Finland
Customs Tariff Number	85015290
Medium Description	49kW, 4P, Frame Size 160, 3 Phases, 400V, 50Hz, IP55 Enclosure, IMB35/IM2001 Mounting (3GFT162731-SDB)
Short Description	49kW, 4P, Frame Size 160, 3PH, 400V, 50Hz, IP55, IMB35/IM2001

Electrical

Connection Configuration	Y
Temperature Class Default	--
Input Voltage (Uin)	400 V V
Frequency (f)	50 Hz Hz
Motor Operational Voltage	380 V V
Operating Frequency (fsw)	34.500 Hz Hz
Output Power	49 kW kW
Altitude	1000 m m
Ambient Temperature	40 °C
IC Class	IC06
IE Class Data (50 Hz)	IE Class NA, Full Load (100%) 88.9 %, Partial Load (75%) 89.9 %, Partial Load (50%) 90.0 %
IE Class Data (60 Hz)	IE Class NA, Full Load (100%) 90.2 %, Partial Load (75%) 91.1 %, Partial Load (50%) 91.0 %
IP Class	IP23
Insulation Class	ICLH
Direction of Rotation	Both sides
Number of Poles (High)	4
Two Speed Motor	No
Type of Duty	S9
Voltage Code	D

Mechanical

Frame Material	Aluminum
Frame Size	160
Bearing	6312-2Z
Bearing NDE	6312-2Z
IM Class	IMB35 IM2001
Terminator Box Location	N-End right side

Dimensions

Product Net Depth / Length	746 mm mm
Product Net Height	702 mm mm
Product Net Width	514 mm mm
Product Net Weight	266 kg kg
Gross Weight	276 kg kg

Environmental

WEEE Category

4. Large Equipment (Any External Dimension More Than 50 cm) cm

External Classifications and Standards

UNSPSC

26101100
