ABB 3GFT132731-SDB

MPN: 3GFT132731-SDB
Category: Flameproof IEC Low voltage motors

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare ABB parts? We buy surplus →

What is the ABB 3GFT132731-SDB?

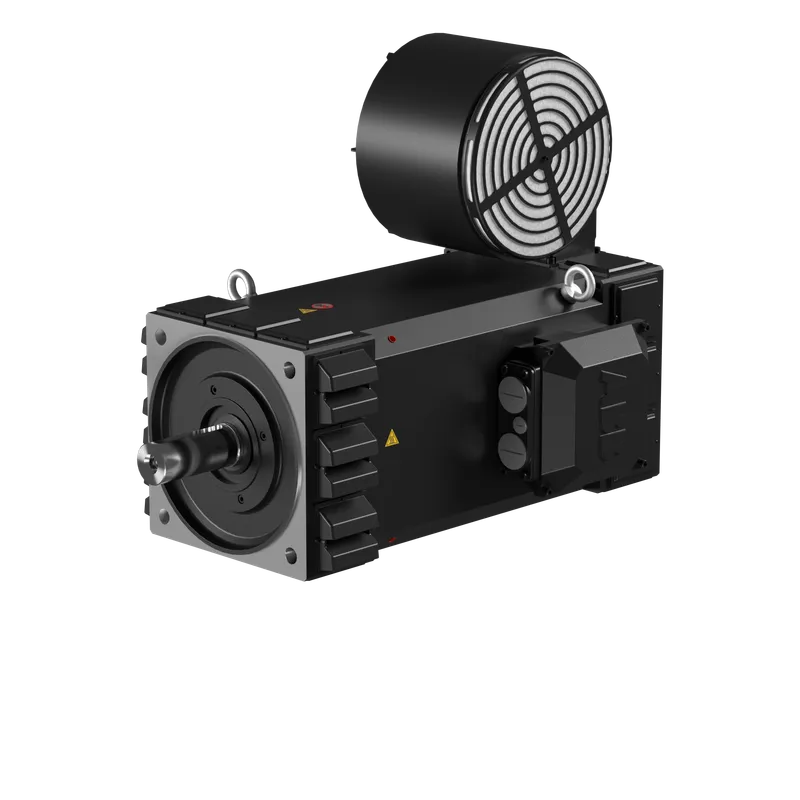

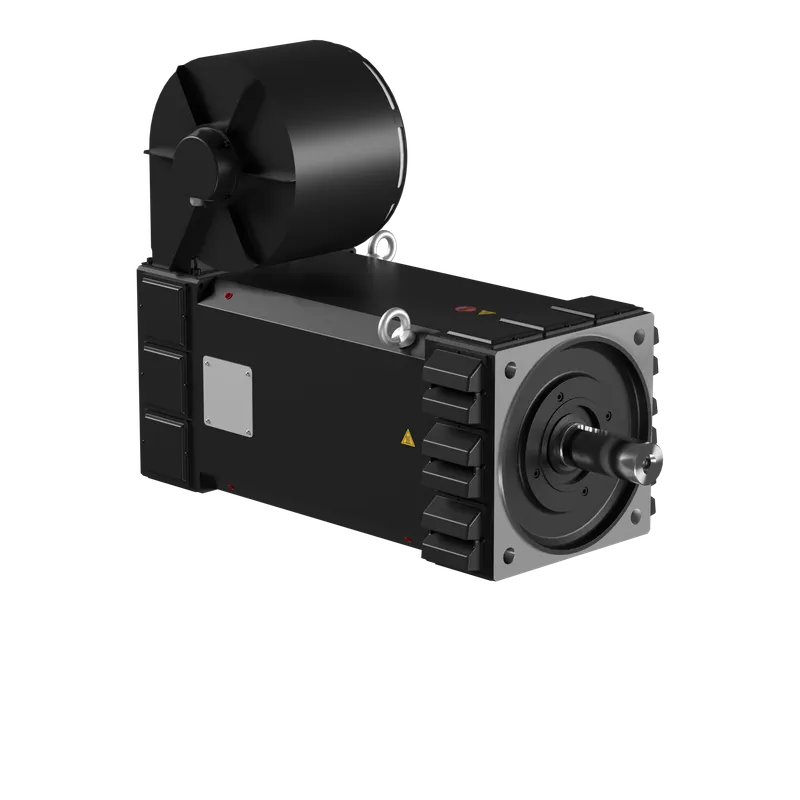

HDP Induction Motors, 22 kW, 400 V (3GFT132731-SDB)

Specifications

Ordering

ABB Type Designation	M3FT 132C 4
Invoice Description	M3FT 132C 4
Product Name	High dynamic performance motors
Product Type	3FTB__M3FT__HDP__IP23_
Country or Territory of Origin	Finland
Customs Tariff Number	85015230
Medium Description	22kW, 4P, Frame Size 132, 3 Phases, 400V, 50Hz, IP55 Enclosure, IMB35/IM2001 Mounting (3GFT132731-SDB)
Short Description	22kW, 4P, Frame Size 132, 3PH, 400V, 50Hz, IP55, IMB35/IM2001

Electrical

Connection Configuration	Y
Temperature Class Default	--
Input Voltage (Uin)	400 V V
Frequency (f)	50 Hz Hz
Motor Operational Voltage	380 V V
Operating Frequency (fsw)	35.100 Hz Hz
Output Power	22 kW kW
Altitude	1000 m m
Ambient Temperature	40 °C
IC Class	IC06
IE Class Data (50 Hz)	IE Class NA, Full Load (100%) 83.4 %, Partial Load (75%) 87.1 %, Partial Load (50%) 88.4 %
IE Class Data (60 Hz)	IE Class NA, Full Load (100%) 84.8 %, Partial Load (75%) 86.5 %, Partial Load (50%) 86.7 %
IP Class	IP23
Insulation Class	ICLH
Direction of Rotation	Both sides
Number of Poles (High)	4
Two Speed Motor	No
Type of Duty	S9
Voltage Code	D

Mechanical

Frame Material	Aluminum
Frame Size	132
Bearing	6310-2Z
Bearing NDE	6310-2Z
IM Class	IMB35 IM2001
Terminator Box Location	N-End right side

Dimensions

Product Net Depth / Length	566 mm mm
Product Net Height	532 mm mm
Product Net Width	374 mm mm
Product Net Weight	115 kg kg
Gross Weight	120 kg kg

Environmental

WEEE Category

4. Large Equipment (Any External Dimension More Than 50 cm) cm

External Classifications and Standards

UNSPSC

26101100
