ABB 3GET312742-AUB

MPN: 3GET312742-AUB
Category: Flameproof IEC Low voltage motors

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare ABB parts? We buy surplus →

What is the ABB 3GET312742-AUB?

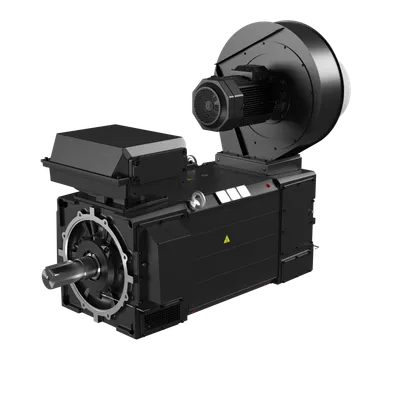

HDP Induction Motors, 630 kW, 690 V (3GET312742-AUB)

Specifications

Ordering

ABB Type Designation	M3ET 315D 4
Invoice Description	M3ET 315D 4
Product Name	High dynamic performance motors
Product Type	3ETB__M3ET__HDP__IP55_
Country or Territory of Origin	Finland, China
Customs Tariff Number	85015394
Medium Description	630kW, 4P, Frame Size 315, 3 Phases, 690V, 50Hz, IP55 Enclosure, IMB3/IM1001 Mounting (3GET312742-AUB)
Short Description	630kW, 4P, Frame Size 315, 3PH, 690V, 50Hz, IP55, IMB3/IM1001

Electrical

Connection Configuration	D
Temperature Class Default	--
Input Voltage (Uin)	690 V V
Frequency (f)	50 Hz Hz
Motor Operational Voltage	640 V V
Operating Frequency (fsw)	50.400 Hz Hz
Output Power	630 kW kW
Altitude	1000 m m
Ambient Temperature	40 °C
IC Class	IC416
IE Class Data (50 Hz)	IE Class IE3, Full Load (100%) 96.5 %, Partial Load (75%) 96.7 %, Partial Load (50%) 96.7 %
IP Class	IP55
Insulation Class	ICLH
Direction of Rotation	Both sides
Number of Poles (High)	4
Two Speed Motor	No
Type of Duty	S9
Voltage Code	U

Mechanical

Frame Material	Welded Steel
Frame Size	315
Bearing	6326M/C3
Bearing NDE	6322/C4VL0241
IM Class	IMB3 IM1001
Terminator Box Location	D-End top

Dimensions

Product Net Depth / Length	2133 mm mm
Product Net Height	1510 mm mm
Product Net Width	852 mm mm
Product Net Weight	3150 kg kg
Gross Weight	3170 kg kg

Environmental

WEEE Category

4. Large Equipment (Any External Dimension More Than 50 cm) cm

External Classifications and Standards

UNSPSC

26101100
