ABB 3GET252723-RDB

MPN: 3GET252723-RDB
Category: Flameproof IEC Low voltage motors

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare ABB parts? We buy surplus →

What is the ABB 3GET252723-RDB?

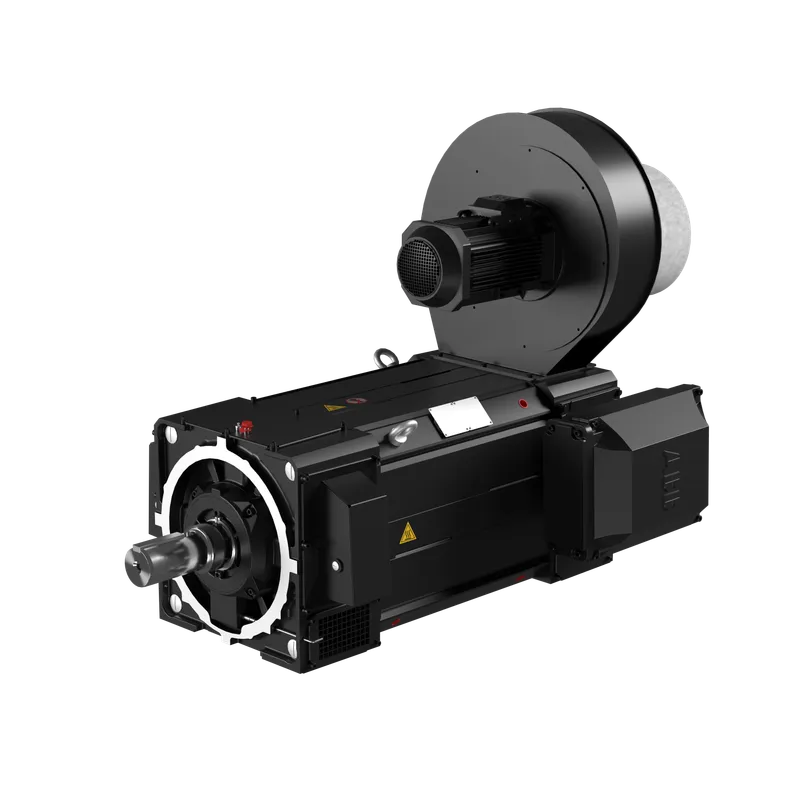

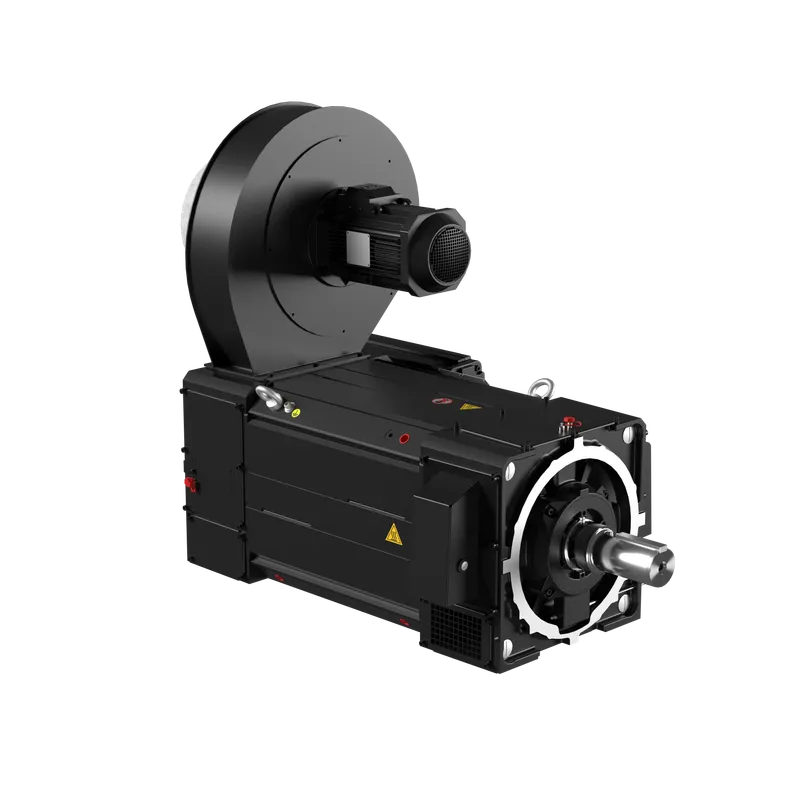

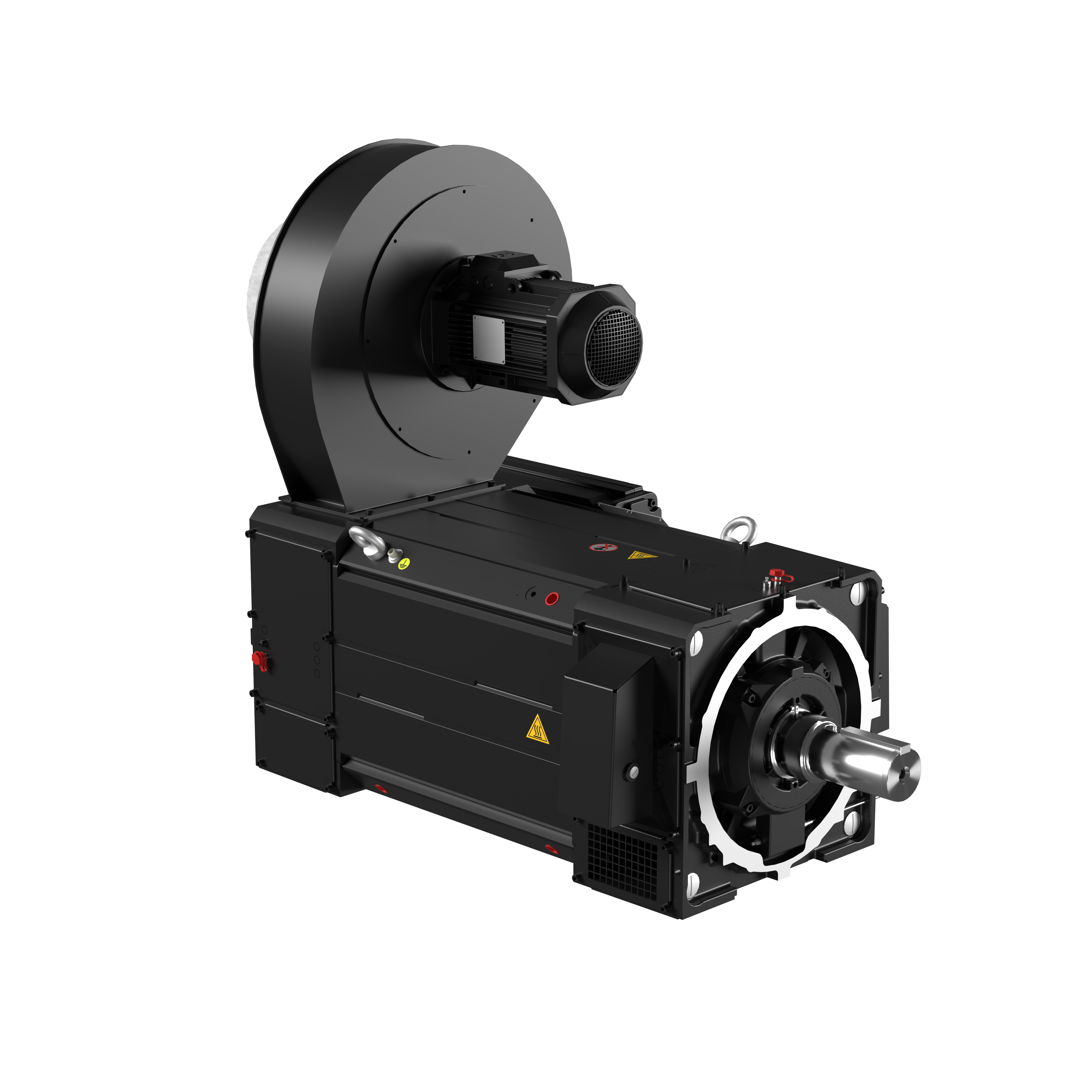

HDP Induction Motors, 230 kW, 400 V (3GET252723-RDB)

Specifications

Ordering

ABB Type Designation	M3ET 250B 4
Invoice Description	M3ET 250B 4
Product Name	High dynamic performance motors
Product Type	3ETB__M3ET__HDP__IP55_
Country or Territory of Origin	Finland, China
Customs Tariff Number	85015381
Medium Description	230kW, 4P, Frame Size 250, 3 Phases, 400V, 50Hz, IP55 Enclosure, IMB3/IM1001 Mounting (3GET252723-RDB)
Short Description	230kW, 4P, Frame Size 250, 3PH, 400V, 50Hz, IP55, IMB3/IM1001

Electrical

Connection Configuration	D
Temperature Class Default	--
Input Voltage (Uin)	400 V V
Frequency (f)	50 Hz Hz
Motor Operational Voltage	382 V V
Operating Frequency (fsw)	58.800 Hz Hz
Output Power	230 kW kW
Altitude	1000 m m
Ambient Temperature	40 °C
IC Class	IC416
IE Class Data (50 Hz)	IE Class IE2, Full Load (100%) 95.2 %, Partial Load (75%) 95.5 %, Partial Load (50%) 95.4 %
IE Class Data (60 Hz)	IE Class IE3, Full Load (100%) 95.3 %, Partial Load (75%) 95.4 %, Partial Load (50%) 95.1 %
IP Class	IP55
Insulation Class	ICLH
Direction of Rotation	Both sides
Number of Poles (High)	4
Two Speed Motor	No
Type of Duty	S9
Voltage Code	D

Mechanical

Frame Material	Welded Steel
Frame Size	250
Bearing	6322/C3
Bearing NDE	6319/C3 VL0241
IM Class	IMB3 IM1001
Terminator Box Location	N-End right side

Dimensions

Product Net Depth / Length	1477 mm mm
Product Net Height	934 mm mm
Product Net Width	710 mm mm
Product Net Weight	1372 kg kg
Gross Weight	1382 kg kg

Environmental

WEEE Category

4. Large Equipment (Any External Dimension More Than 50 cm) cm

External Classifications and Standards

UNSPSC

26101100

3GET252723-RDB: frequently asked questions

When can 3GET252723-RDB be shipped?

3GET252723-RDB is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 3GET252723-RDB in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 3GET252723-RDB and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 3GET252723-RDB, subject to availability and destination.
